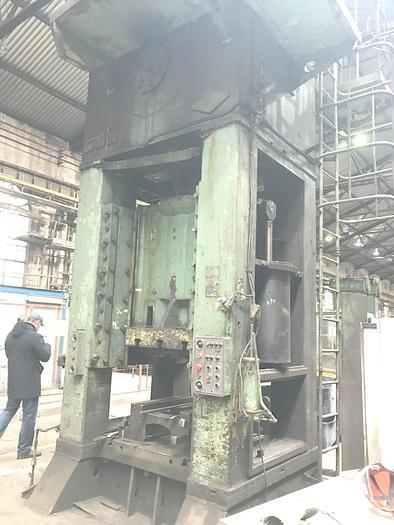

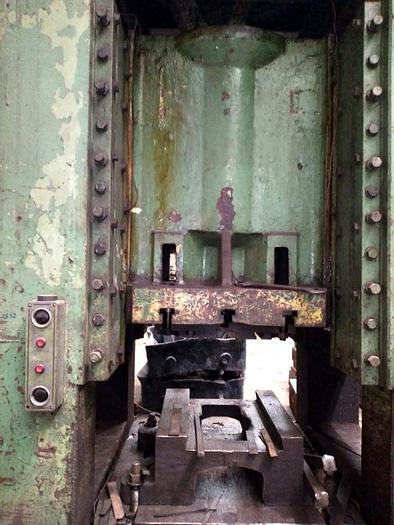

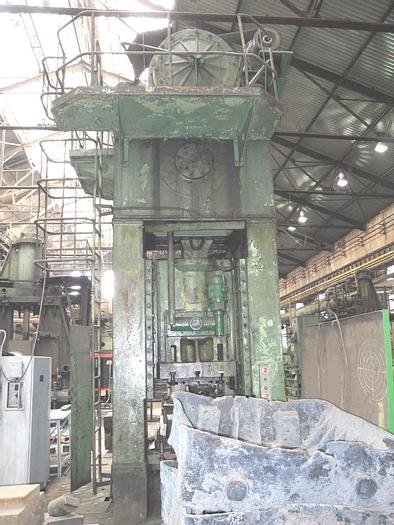

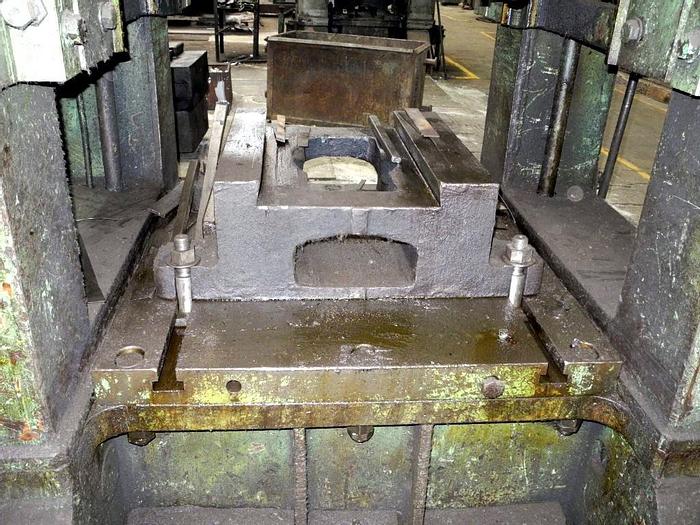

Press Trimming K9538

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelK9538
Year1968
ConditionUsed
Stock NumberMA0883
Item conditionGood Condition
Capacity tons630

Description

Capacity : 630 tons,

Slide Stroke : 420 mm,

Number of slide stroke per min : 20,

Maximum distance from bed to slide (stroke down, adjustment up): 750 mm,

Adjustment of distance from bed to slide : 180 mm,

Table size : 1250 x 1250 mm,

Bed opening dimensions : 800 x 800 mm,

Slide dimensions L to R, F to B : 1000, 1000 mm,

Bolster plate thickness : 180 mm,

Total power of drive : 55 kW,

Overall dimensions :-

L to R : 3200 mm,

F to B : 3470 mm,

Height : 6100 mm,

Weight of the machine : 51.8 ton.
