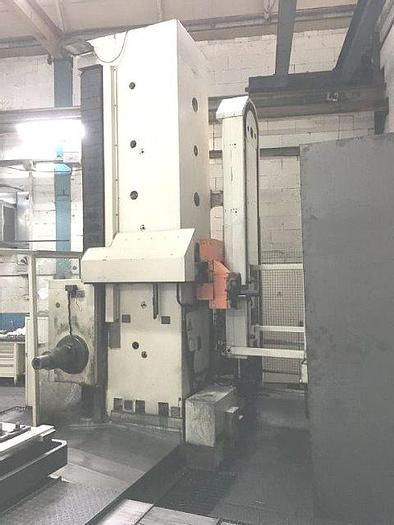

Borer Horizontal Table Type CNC WHQ13.8
Specifications
Manufacturer | Abe Seiki,Japan |
Model | WHQ13.8 |
Year | 2001 |
Condition | Used |
Stock Number | MA0834 |
Item condition | Good Condition |
Capacity tons | 0 |
Description
WORKING RANGE -CUBIC-
X-axis travel : 3500 mm,
Y-axis travel : 2500 mm,
Z-axis travel : 1200 mm,
W-axis travel : 800 mm,
TABLE
table surface (left-right) : 1800 mm,
table surface (front-back) : 2000 mm,
workpiece load (max) : 12 tons,
MILLING SPINDLE / HEAD
spindle type : horizontal
spindle revolutions (max) : 2500 /min,
spindle diameter : 130 mm,
tool fixture : ISO SK 50,
sleeve stroke : 800 mm,
TOOL MAGAZINE
number of positions : 60,
DIMENSIONS / WEIGHTS
space requirements (left/right) : 8500 mm,
space requirements (front/back) : 8500 mm,
total height : 4000 mm,
height under floor level : 800 mm,
total weight approx. : 39 tons,

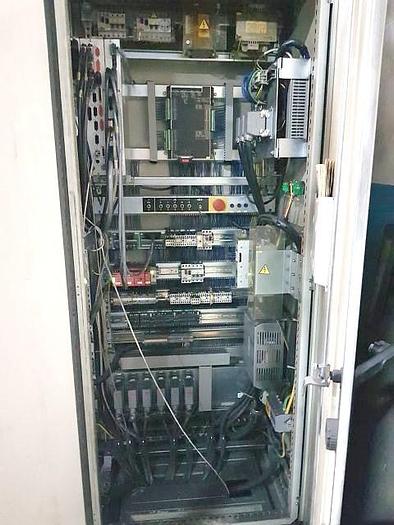

Controls : CNC controls HEIDENHAIN TNC 426

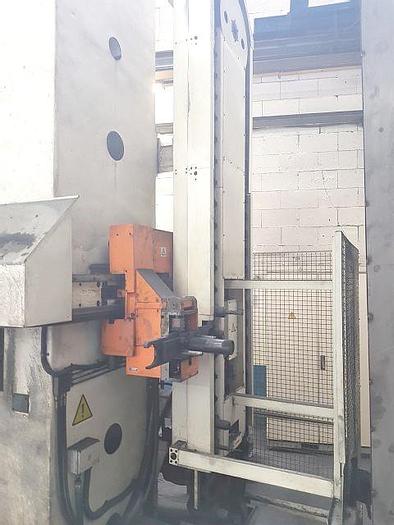

ATTACHMENTS
Auto tool clamping,
Ball spindles
Guideway covers
Central lubrication system

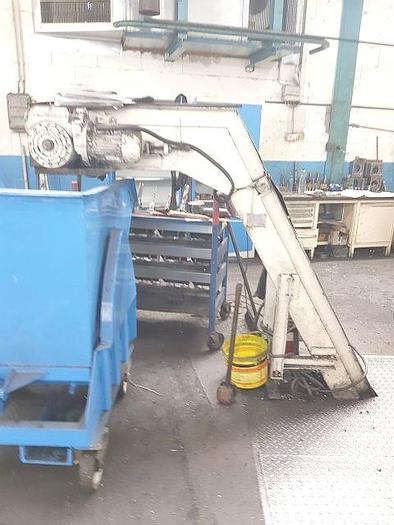

Chip conveyor
European CE standards
