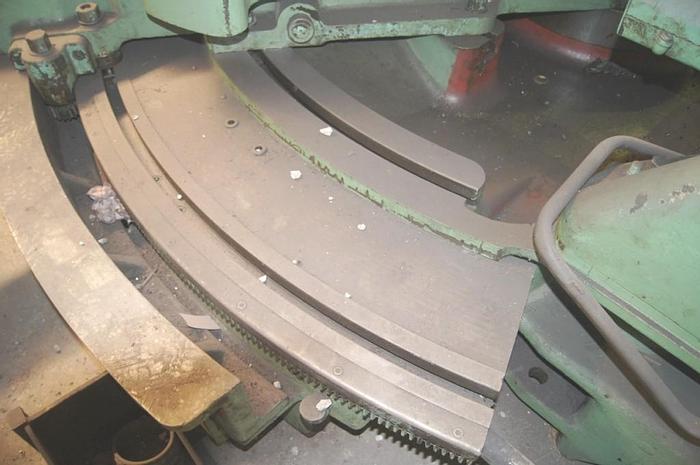

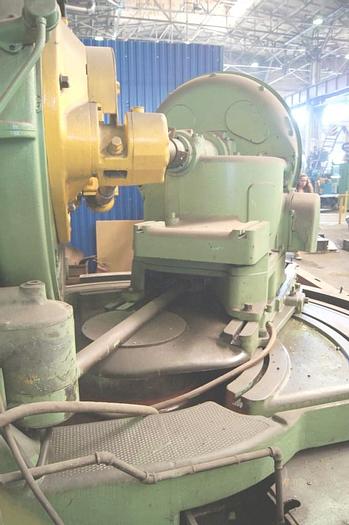

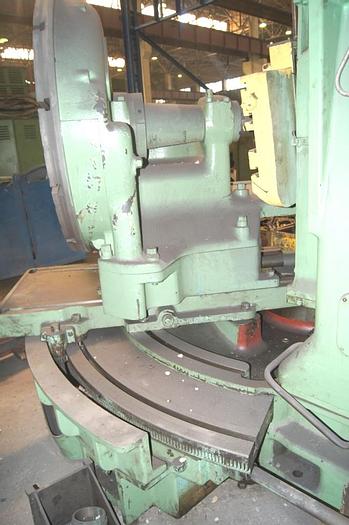

Gear Generator Spiral Bevel & Hypoid Gleason60

Dimensions of the workpiece :

The greatest distance between cones for gears, angle of inclination : 5 ° to 45 °... 30 "762 mm,

The minimum distance of the cone inside the face, around :

Pitch angle : 0 ° ...... 9 "228 mm,

Biggest pitch angle : 84 ° 18 ',

The smallest angle of inclination : 5 ° 42 ',

Extreme ratio, shafts at 90 ° : 10: 1

The largest diameter step gear :

at the ratio I0 : 1 .. 60 " 1524 mm,

in the ratio 2 : 1..  531/2 " 1333 mm,

ratio 1 : 1 421/2" 1079 mm,

Maximum nominal pitch (Gleason system) : 25 Module,

The long face : 91/4 "235 mm,

Spiral angles from.. : 0 ° to 30 °

Spindle :

Diameter of conical hole of large end : 6 " 152 mm,

Cone : 3/4 " 20 mm,

Sharpening depth : 6 " 152 mm,

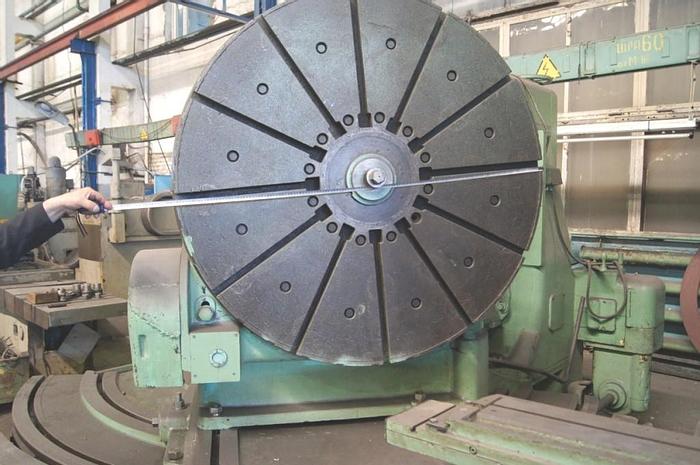

Front panel diameter : 54 " 1372 mm,

Feed and Speed:

Number of beats per minute : from 7 to 44

Drive :

Main drive motor : 230 V, direct current, 71/2-10 HP, 400/1600 rpm, variable speed,

Engine coolant drive : 1 HP, 1800 rpm, 220/440 volts, 60 cycles AC,

Engine lever adjustment : 3 HP, 1800 rpm, 220/440 volts, 60 AC cycles,

Lubrication drive : 3/4 HP, 1800 rpm, 220/440 volts, 60 cycles AC

Size :

Floor area, approximately : 115 "x 162" 2920 x 4100 mm,

Net weight, approx : 25.5 tons.

This machine is used to create large bevel gears and zerol bevel gears, such as used in oil well pumping and drilling equipment, steel rolling and drawing machine drives, paper equipment, coal and cement grinders, water turbines and drilling rims.
