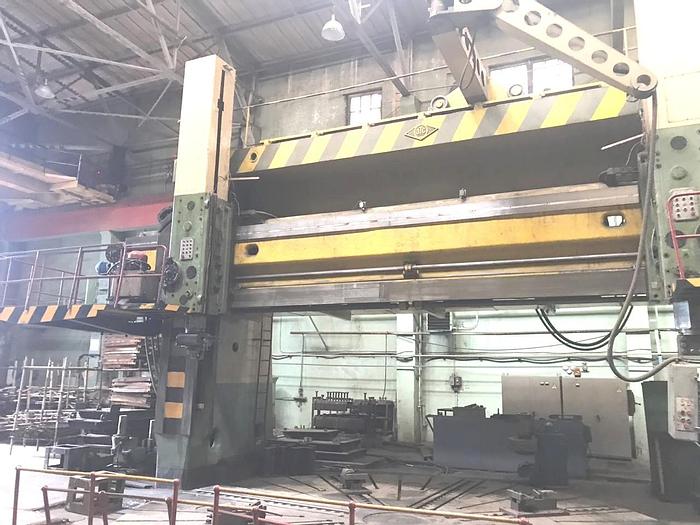

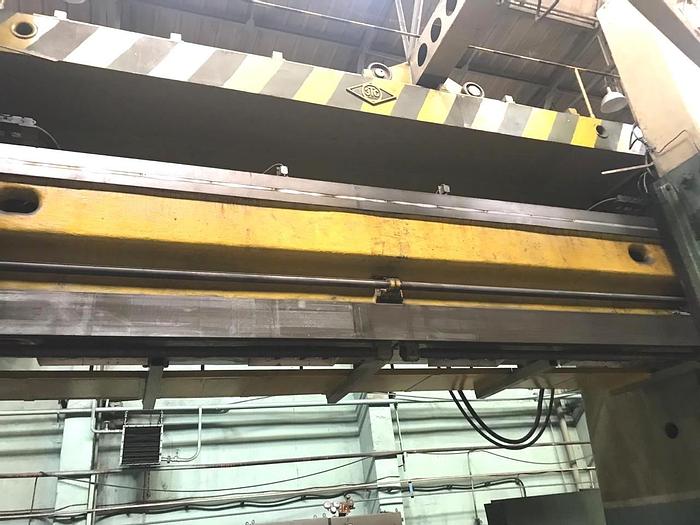

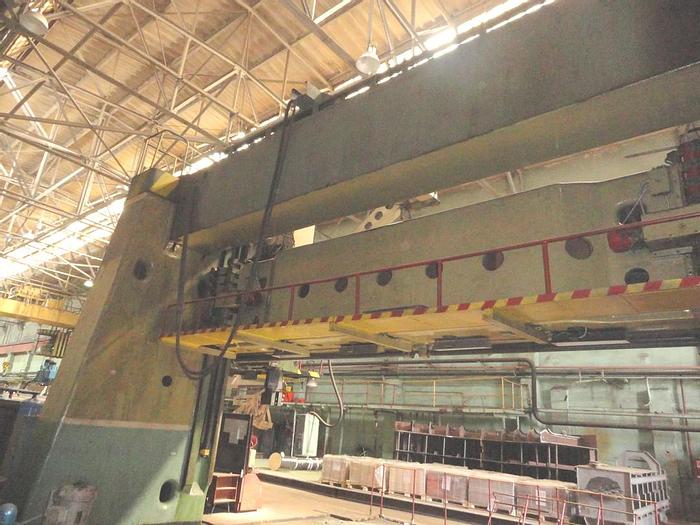

Lathe Vertical Turning 1580
Sold
Specifications
| Manufacturer | Abe Seiki,Japan |
| Model | 1580 |
| Year | 1967 |
| Condition | Used |
| Stock Number | MA0819 |
| Item condition | Good working condition |
| Capacity tons | 8000 |
Description
Max. work piece dia. : 8000 mm,
Max. work piece height : 3200 mm,

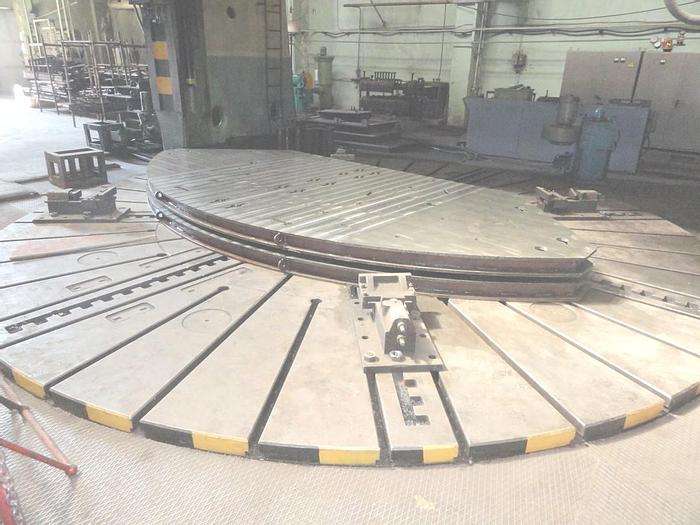

Faceplate dia. : 7100,
Max. travel of the runners of the vertical supports : 2000,
Max. angular displacement of the supports, degrees 15 + 30,
Max. work piece weight, tons : 125,
Max. cutting effort at the right support : 10000 kgs,
Max. cutting effort at the left support : 8000 kgs,
Max. total cutting effort by the two supports : 16000 kgs,
Max. torque at the faceplate : 40000 kgm,
RPM of the faceplate : 0,22-18,3,
Limits of the vertical and horizontal feeds : 0,0352-285 mm/min,
The power of the main drive : 132 kW,
The machine weight : 250 tons.
