Manipulator GSM 10/16P
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | GSM 10/16P |
Year | 1990 |
Condition | Used |
Stock Number | MA0788 |
Item condition | Excellent |
Capacity tons | 1 |
Description

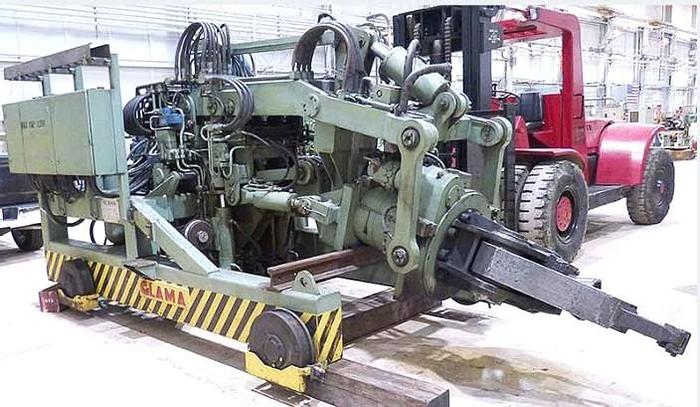

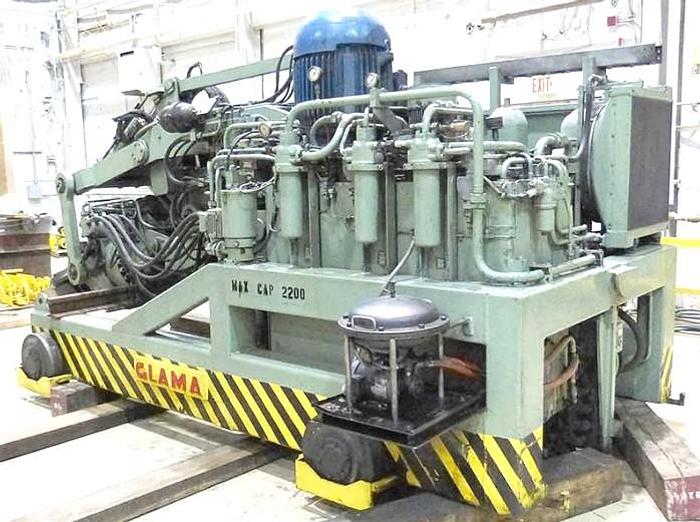

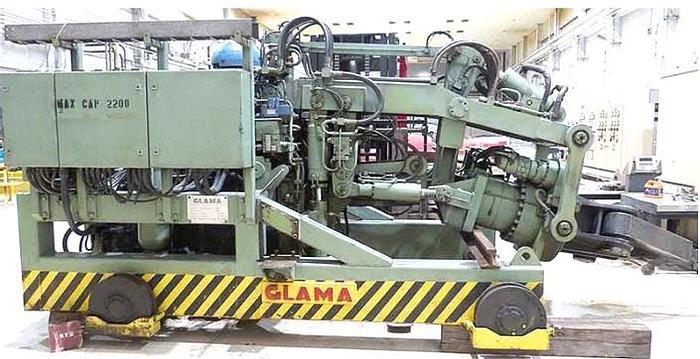

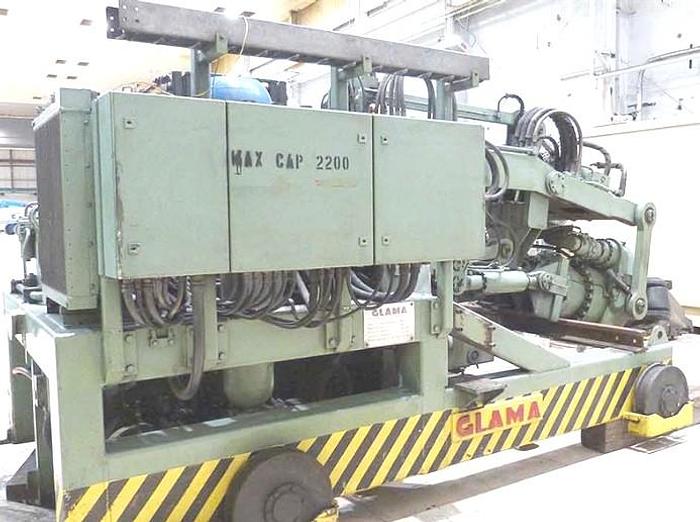

Rail Bound Forging Manipulator
Capacity : 1 ton,
Max Rds : 404 mm,
Min Rds : 120 mm,
Max Sqr : 335 mm,
S-Shift : 150 mm,
Clamping (Tongs) Moment: 16 kNm,
Min Parallel horiz position of tongs center above floor : 550 mm,
Parallel vertical stroke : 900 mm,
Vertical tilt of tongs - Up : 10º,
Vertical tilt of tongs - down to floor,
Rail Centers :2,000 mm,
Max turning circle of fully opened tongs : 865 mm,
Max travel speed forwards/backwards when Transporting : 833 mm/sec,
Peel rotation speed : 0 - 23 rpm,
Peel Lifting and Lowering Speed : 150 mm/sec,
Tongs Opening or Closing time : 5 sec,
Travel Distance :7 meters,
Overall Length : 4944 mm,
Overall Height : 2,200 mm,
Net weight : 10 tons.
