Reduce Forging Roll FR460A

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelFR460A
Year1992
ConditionUsed
Stock NumberMA0779
Item conditionGood working condition
Capacity tons75

Description

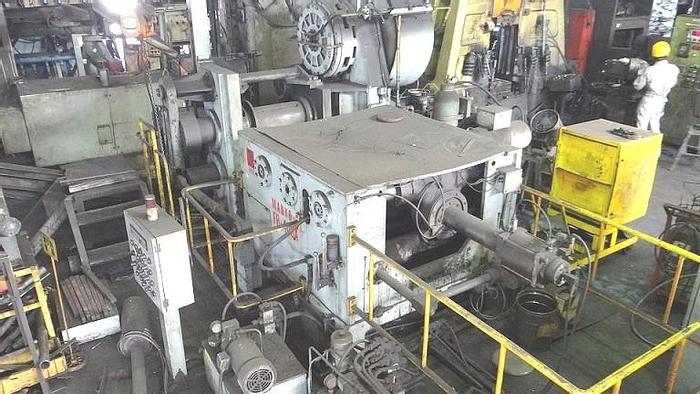

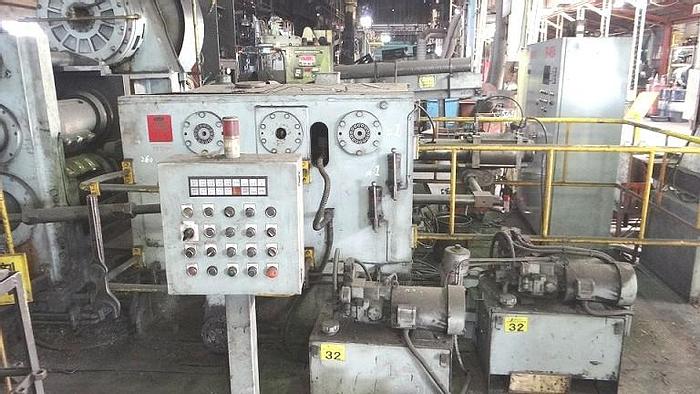

Reduce Forging Roll and Manipulator


Features of the Forging roll main unit

· Unique gear transmission mechanism is intended for compactification of the main unit.

· Oil bath in the main unit secures complete lubrication of the drive system.

· Full automatic centralized circulating lubrication system provided for metal components eliminates unnecessary concern about maintenance.


Make : Manyo,

Model : FR460A,

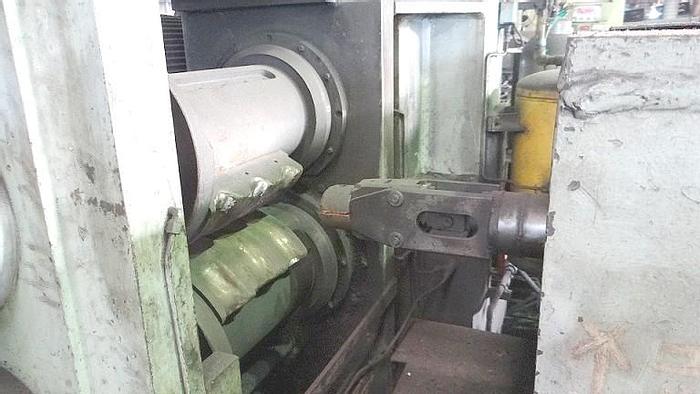

Inner Segment Outer Diameter : 460 mm,

Inner Segment Effective Width : 530 mm

Inner Roll Shaft Diameter : 280 mm

Outer Segment Diameter : 460 mm

Outer Segment Effective Width :210 mm

Outer Roll Shaft Diameter : 240 mm

Max. size of billet dia : 75 mm,

Roll RPM : 60

Clutch & Brake :Air Friction Disc

Machine Weight : 9500 kgs.



Features of the Auto Manipulator :

· Lateral movement pitch stroke allows highly precise moving and stopping at a high speed.

· It has a high-level stopping accuracy with a pitch of ±0.1 mm.

· Comprehensive high rigidity guarantees uniform accuracy of roll-forged products. It also maintains excellent accuracy in long products.


Manipulator :

Make : Manyo,

Stroke : 600 mm,

Pitch : 70 - 130 mm,

Cycle Time : 60 SPM,

Machine weight : 5500 kgs.
