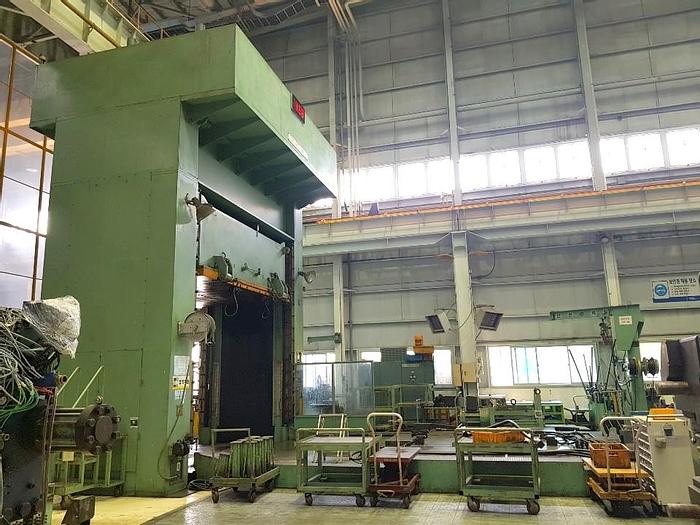

Press Die Spotting Hydraulic DSP-300-400-250

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelDSP-300-400-250
Year2003
ConditionUsed
Stock NumberMA0776
Item conditionGood Condition
Capacity tons300

Description

Capacity : 300 tons,

Raising capacity (Main Cylinder) : 80 tons,

Day light : 3000 mm,

Stroke : 2300 mm,

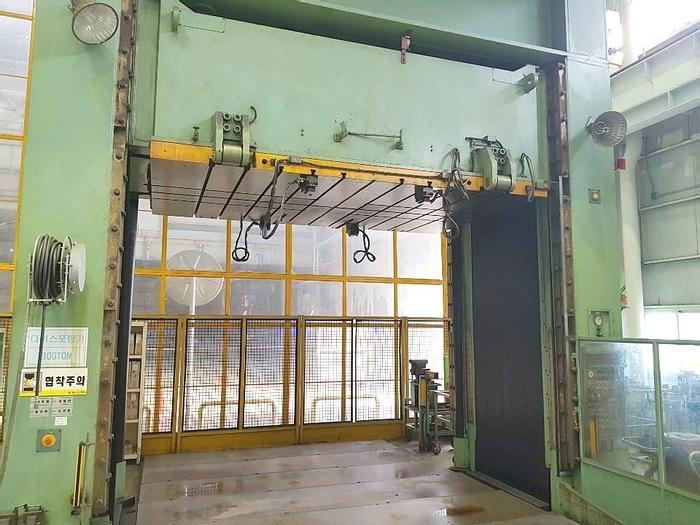

Bolster area : 4000 x 2500 mm,

Slider area : 4000 x 2500 mm,

Max. die weight : 40 ton,

Speed down : 60~100 mm/sec,

Speed slow down : 10~15 mm/sec,

Speed up : 60~100 mm/sec,

Speed slow up : 10~15 mm/sec,


Pump motor :

Type of pump : IPH-6A-125 (Nachi),

Displacement :IPH-56A-40-100 (Nachi),

Working pressure : 168, 68 L/Min,

Type of motor : 30kw x 6p x 440v x 60Hz,

              45Kw x 6p x 440v x 60Hz,

Bolster moving device :

Max. carriable die weight : 40 ton,

Stroke : 5845 mm,

Inward speed : 10 m/min,

Outward speed : 10 m/min,


Micro adjust device :

Adjustable length : 700 -1700 mm,

Adjust speed (high) : 300 mm/min,

Adjust speed (low) : 50 mm/min,

Inching stroke : 0.05 mm,

Hyd. motor : GXMO - AOC - 30CF.
