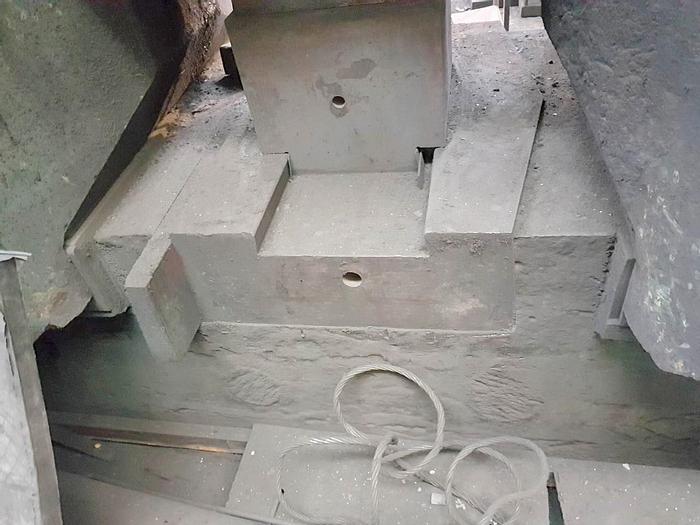

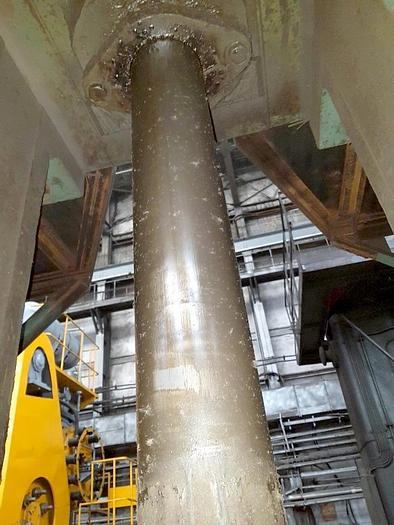

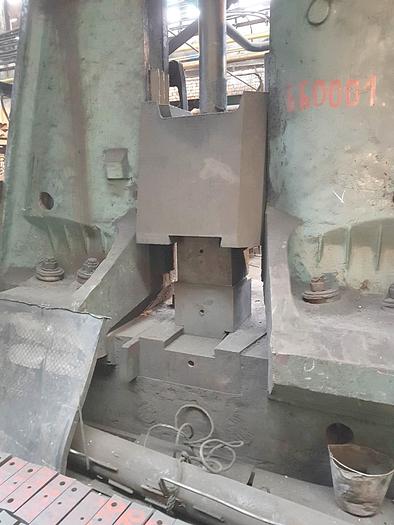

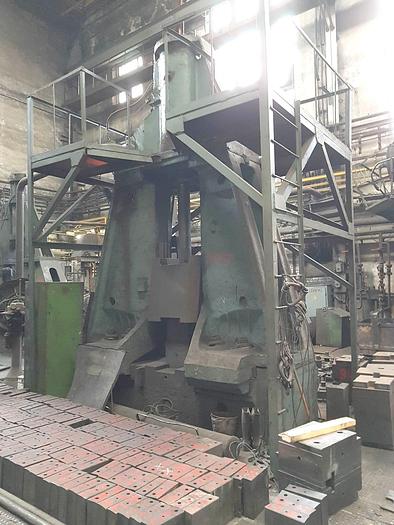

Hammer Forging Pneumatic MB2145

Capacity : 3.15 tons,

Rated striking energy : 80 KJ,

Max. no. of blows/min. : 60,

Ram stroke : 1250 mm,

Uprights distance : 710 mm,

Ram dimensions : 750 mm,

Die holder : 1000 mm,

Min. Die holder to ram distance : 340 mm,

Steam/air pressure : 0.7-0.9 MPa,

Dimensions : 3820 x 1800 x 5340 mm,

Mass (less anvil block) : 25 tons,

Mass of anvil block : 63 tons.
