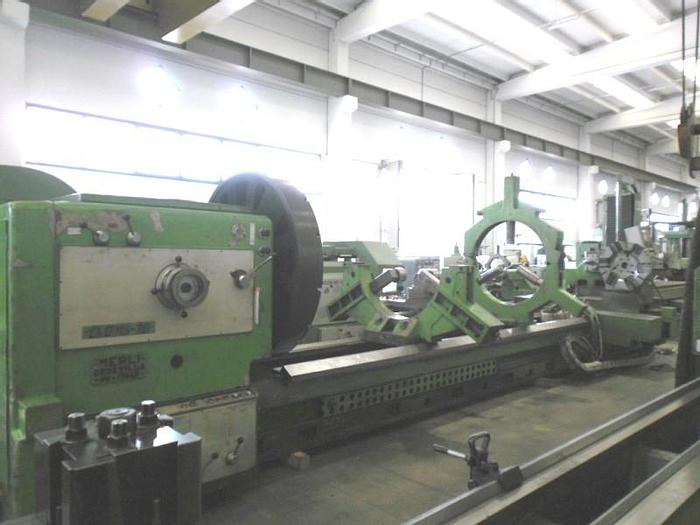

Lathe Heavy Duty CNC Merli

Height of centres : 800 mm,

Distance between centres : 7000 mm,

Swing over bed : 1650 mm,

Swing over cross slide :1170 mm,

Wide of bed : 1000 mm,

Spindle nose ASA A1 15",

Spindle bore : 206 mm,

Spindle speed N°16 :  3÷300 rpm,

Tailstock quill diam. : 220 mm,

Tailstock quill stroke : 450 mm,

Tailstock quill taper : MORSE 7,

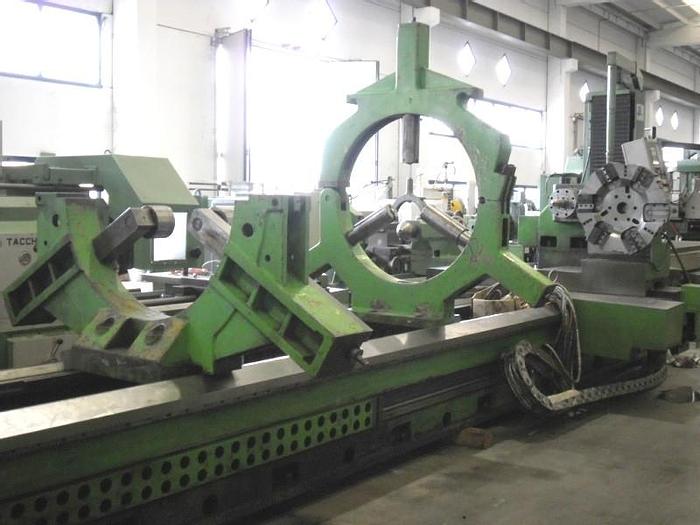

Max. load admitted between centres without & with rest : 18000÷25000 Kg,

Long & cross rapid feed of carriage :  5500÷2750 mm/min.,

Tailstock rapid feed : 4500 mm/min,

Main motor power : 37/56 KW,

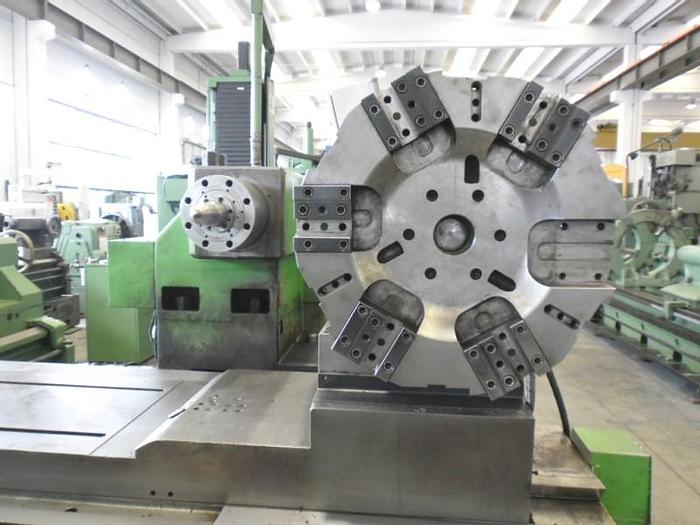

Platform 4 independent jaw chuck : 1500 mm,

Approx. Net weight : 28000 Kg,

Overall dimension : 11 x 25 x 23 Mt.

Features :

Height of centres : 800 mm,

Spindle/plateau diam. : 1500 mm,

Max.swing diam. : 1650 mm,

Distance between centres : 7000 mm,

Spindle bore : 206 mm,

Spindle speed : 300 rpm,

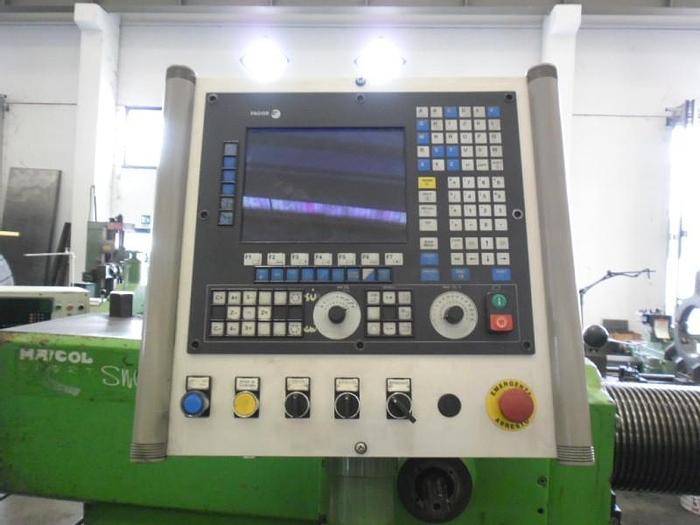

Control : CNC FAGOR,

Motor power 37 kw.
