Lathe Vertical Turning CNC SC22

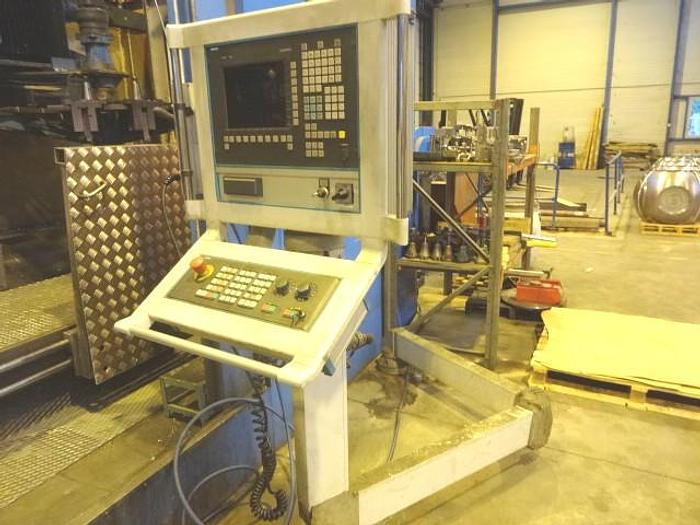

Control system : Siemens 840.D

Plate diameter : 2000 mm,

Max. diameter of the work-piece : 2150 mm,

Work-piece height : 1450 mm,

Plate rotation speed : 3-140 U/min,

Max. weight of work piece : 12 tons,

Milling spindle :

Maximum speed : 2000 rpm,

Power milling spindle motor : 22 kW,

Total weight of the machine : 34 tons

Machine complete with :

C-axis : 360.000°

Milling spindle : 22 KW

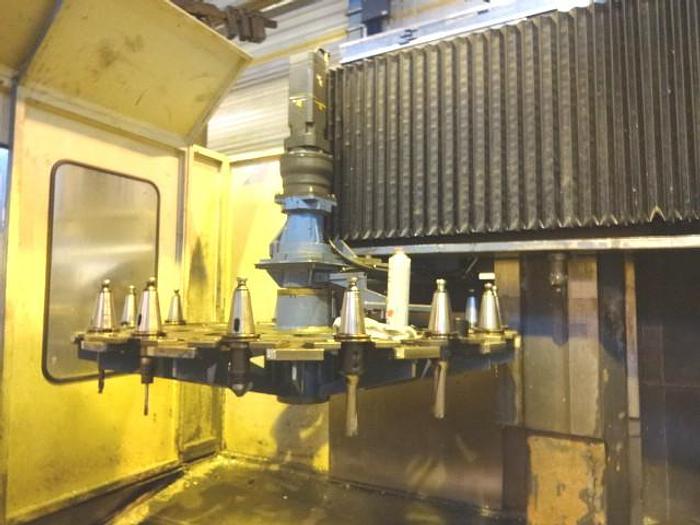

Tool changer : 16 positions

Tool changer for milling tools ISO 50 : 16 positions

Complete fairing

Chip conveyor

Complete cooling system with filtration

4 grips on the plate to manual clamping.
