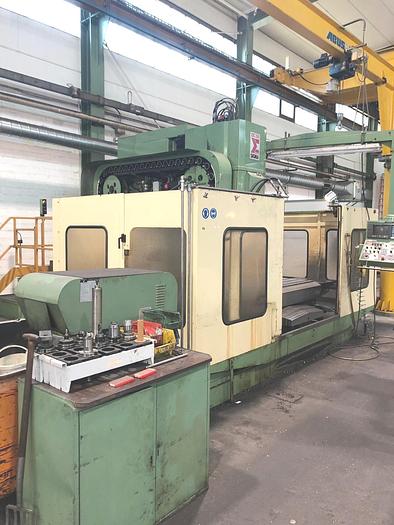

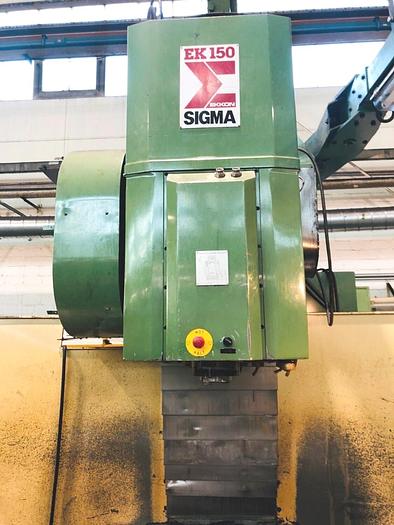

Machining Center Vertical EK150
Sold
Specifications
| Manufacturer | Sigma |
| Model | EK150 |
| Year | 1992 |
| Condition | Used |
| Stock Number | MA0714 |
| Item condition | Very good condition |
| Capacity tons | 0 |
Description
Fanuc 15M Control :
X : 1500 mm
Y : 800 mm
Z : 750 mm

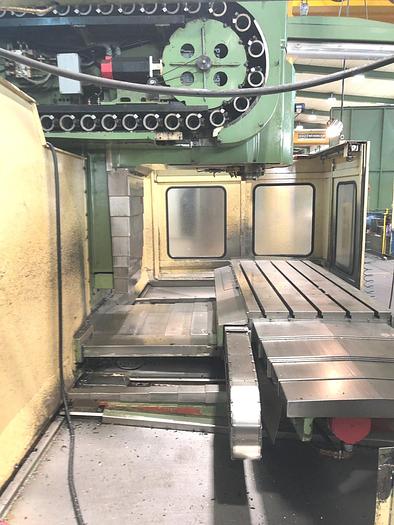

Table surface : 1900 x 750 mm,
Max. Table load : 3.5 tons,
Spindle mount : ISA 50,
Spindle speeds :
20 - 6.000 rpm,
Max. Drilling capacity : 60 mm,
Thread cutting capacity : M 48,
Milling capacity : 450 cm³ / min.,
Working feed : 0 - 10000 mm / min.,
Rapid feed : 15000 mm / min.,
Distance spindle axis / guides : 890 mm,
Distance spindle / table min./max : 150/900 mm,
Drive power : 22 kW,
Weight approx. : 16 tons,
Outside dimensions approx. : 3710 x 4100 x 3520 mm,
With

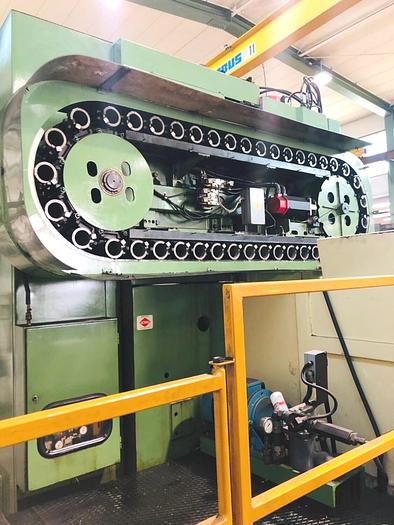

-Tool changer with 40 tool places,
Max. Tool diameter : 120/200 mm,
Max. Tool length : 400 mm,
Max. Weight of each tool : 20 kg,
Tool change time 5,0 sec.,
- Chip conveyor
