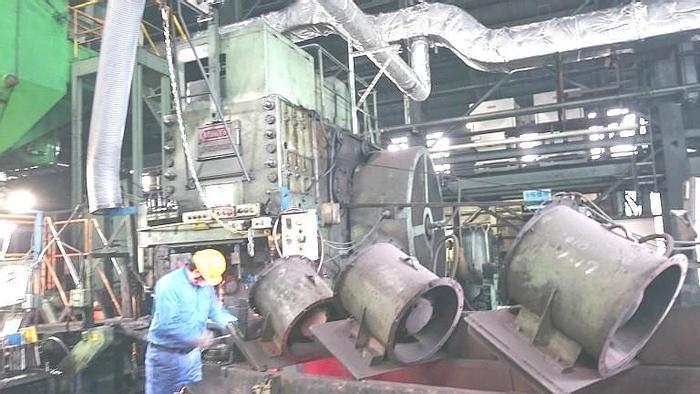

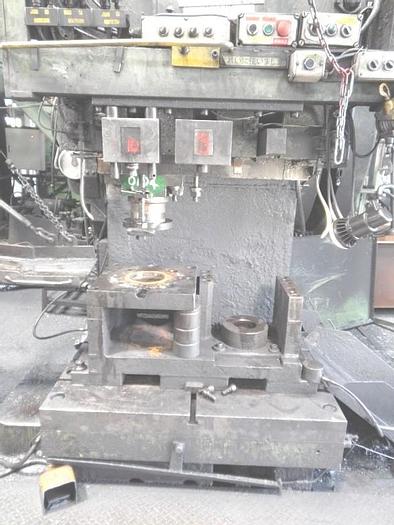

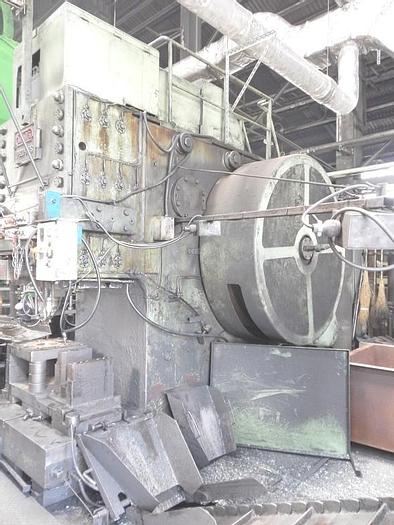

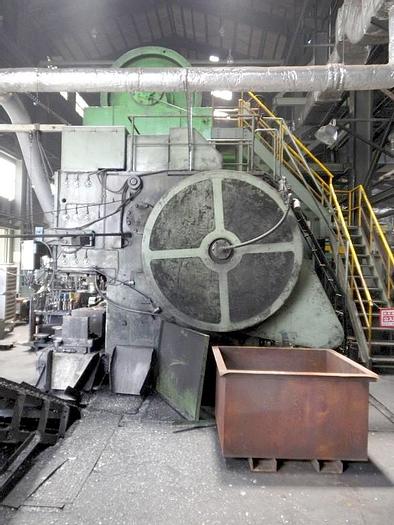

Press Hot Forging Manyo,Japan

Sold

Specifications

ManufacturerAbe Seiki,Japan
ConditionUsed
Stock NumberMA0709
Item conditionGood working condition
Capacity tons600

Description

Capacity : 600 tons,

Stroke : 300 mm,

Stroke per minutes : 45,

Adjust : 100 mm,

Shut Height : 860 mm,

Die Height : 750 mm,

Bolster : 1360 x 850 mm,

Slide : 906 x 503 mm,

Bottom Knockout

Capacity : 30 tons,

Stroke : 130 mm,

Main Motor : 55 Kw, 4p, 220V.


Die collision forging (Die-kiss forging) is allowed


The lever press enables safe “Die-kiss forging” which a crank press does not do well. Thanks to soft forging utilizing the resilience of the lever, die collision shock is made very unlikely, leading to the prevention of damage to dies and the press.


Production of high precision closed die forgings


Lever press enabling resilient soft forging allows reduction of clearance (engagement allowance) between the upper and lower dies, leading to closed die forging with very sharp corners free from vertical flash and underfill.


Also serves as an effective warm forging press


The stroke motion mechanism of the ram, uniquely developed, enables economical forging without damage to dies, even in warm forging, which is liable to generate greater working impact.
