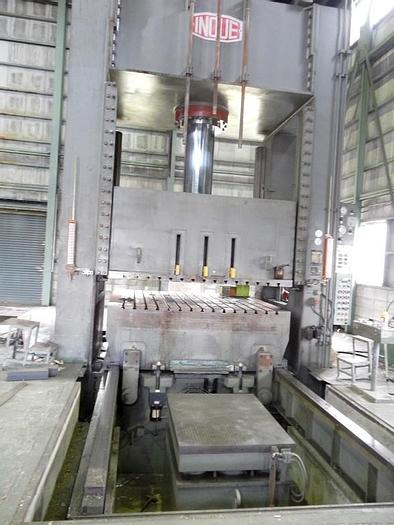

Press Sheet Stamping Hydraulic Inoue

Sold

Specifications

ManufacturerAbe Seiki,Japan
ConditionUsed
Stock NumberMA0704
Item conditionVery good condition
Capacity tons500

Description

Capacity : 500 tons,

Stroke : 1200 mm,

Lowering Speed : 200 mm/sec,

Daylight :1600 mm,

Slide : 2500 x 2200 mm,

Lowering Speed : 200 mm/sec,

Working Speed : 8.8 - 19.0 mm/sec,

Raising Speed : 163 mm/sec,


Moving Bolster : 2500 x 2200 mm,

Die Cushion : 200 ton,

Cushion Stroke : 400 mm,

Cushion Pad : 2000 x 1600 mm,

Motor : 220V 55 KW 6P,

Main Pump : 1150 rpm.
