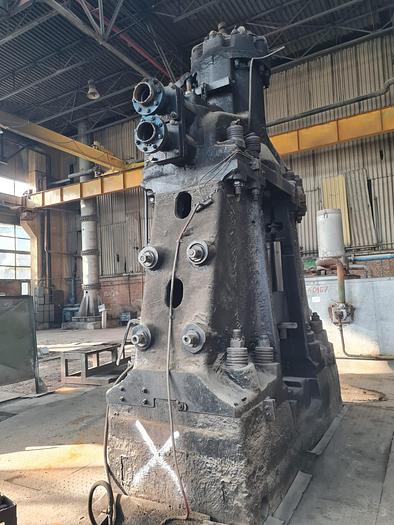

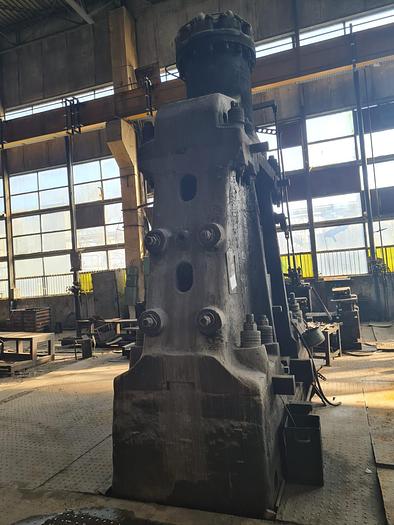

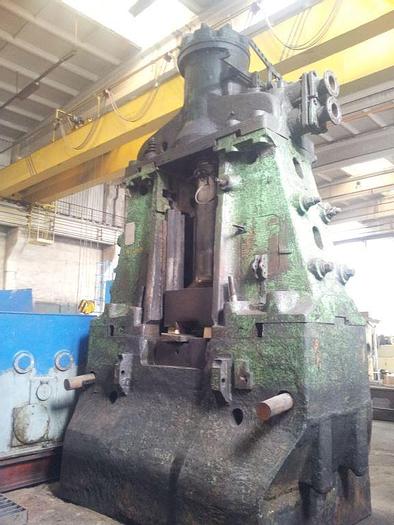

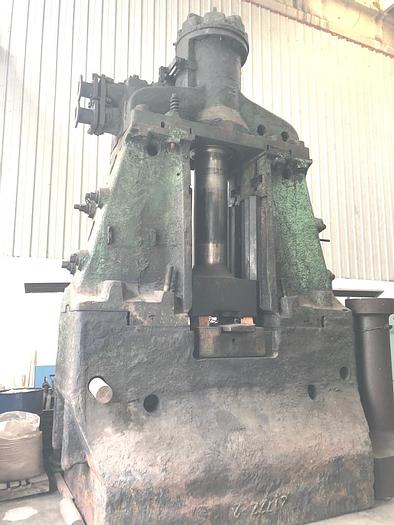

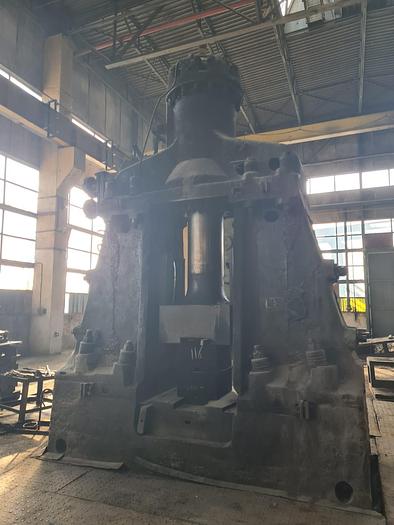

Hammer Forging Pneumatic MPM10000B

Forging Hammer CM3150 (3,15 to) made by Progresul Braila - Romania

Capacity : 3.5 tons

Max. stroke : 900 mm,

Energy of blow : 110 kJ,

Weight of falling part : 3850 kgs,

Max weight of upper die : 1100 kgs,

Anvil block weight w/o die holder : 75 tons,

Weight of hammer with anvil block : 103 tons,

Approximate forging weight : 5-18 kg,

Steam of incoming air pressure : 0.5-0.7 MPa,

Average Steam consumption : 1200 kg/h,

Average cold air consumption : 28 m3/min,

Average hot air consumption : 22 m3/min,

Number of blows per minute : 90 / pm,

Overall dimension :

Length of hammer : 3620 mm,

Width of hammer : 2100 mm,

Total height of hammer : 5930 mm,

Height of hammer above floor : 4700 mm,

Min height of die partition above : 780 mm,

Min height of the die (without tail) : 350 mm,

Guideway spacing : 704 mm,

Length of die seat : 750 mm,

Length of the seat in the die holder : 1050 mm,

Max width of working area : 750 mm,

Max tup stroke : 900 mm,

The total weight of the hammer, including the spare parts is about : 105 ton,

The weight of the Anvil : 70 tons.
