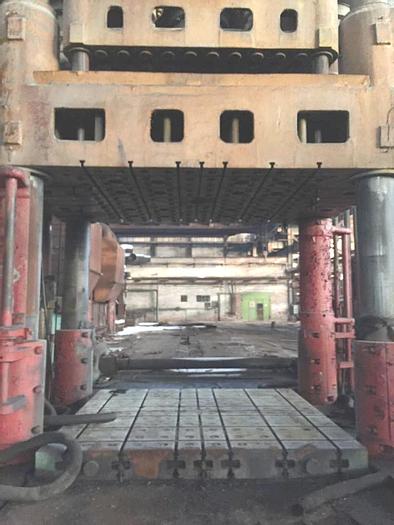

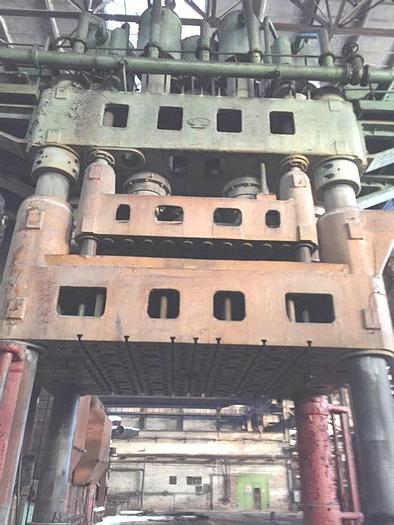

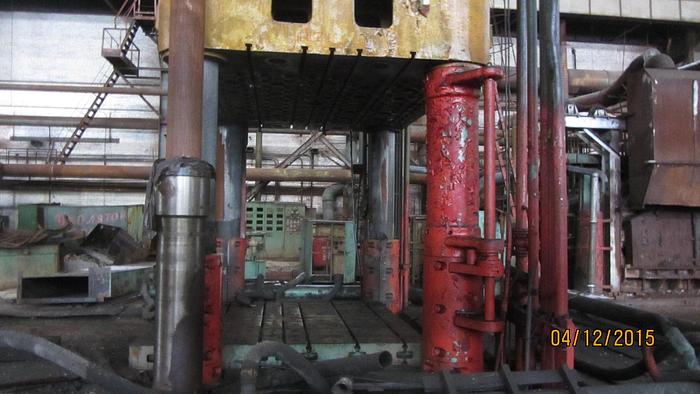

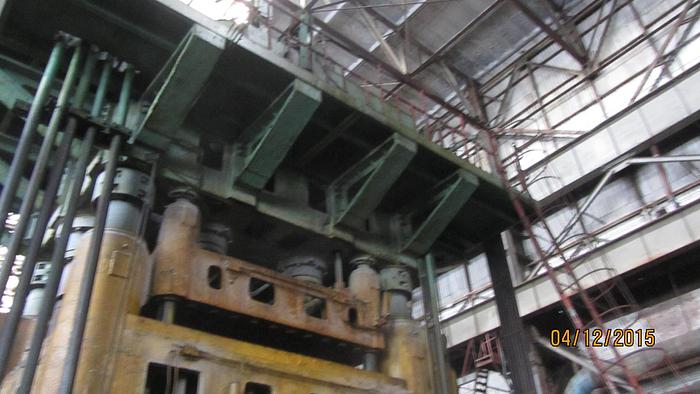

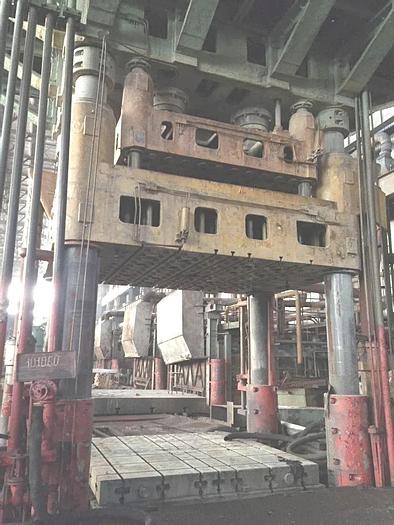

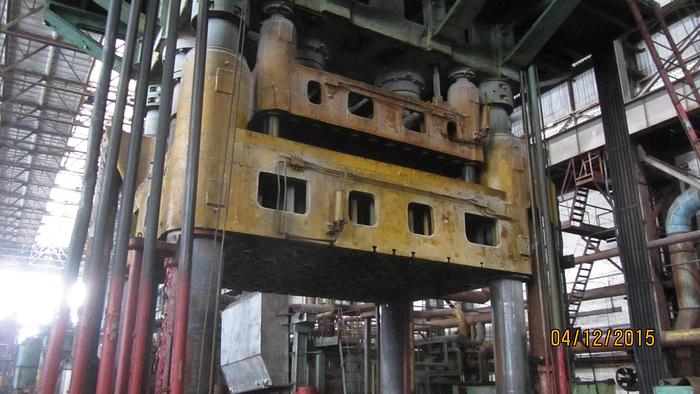

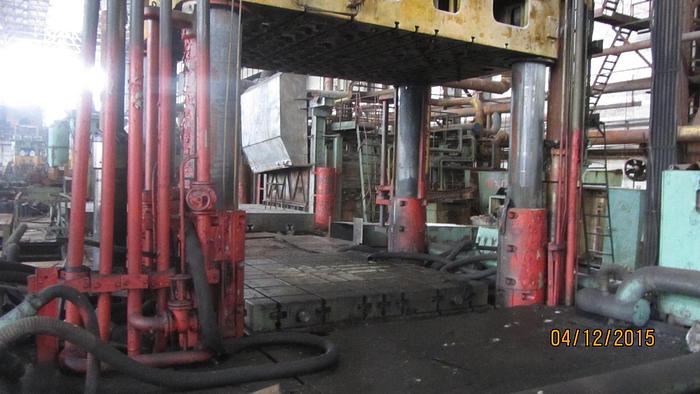

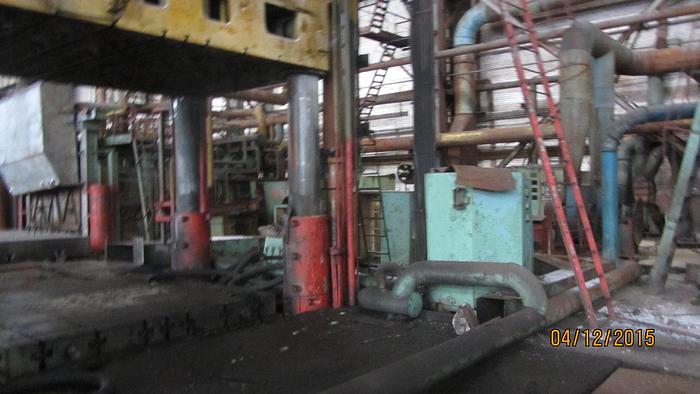

Press Sheet Stamping Hydraulic P236

Double Action Stamping Press

Capacity : 1600 tons,

Nominal force exhaust traverse :

1 step pressure : 500 tons,

2 step pressure : 1000 tons,

3 step pressure : 1600 tons,

Rated force of clamping traverse, tons:

1 step pressure : 500 tons,

2 step pressure : 1000 tons,

Rated force of the cylinder return stroke : 320 tons,

The exhaust traverse stroke : 2500 mm,

The clamping traverse stroke : 2500 mm,

Greatest distance between table and exhaust traverse : 3900 mm,

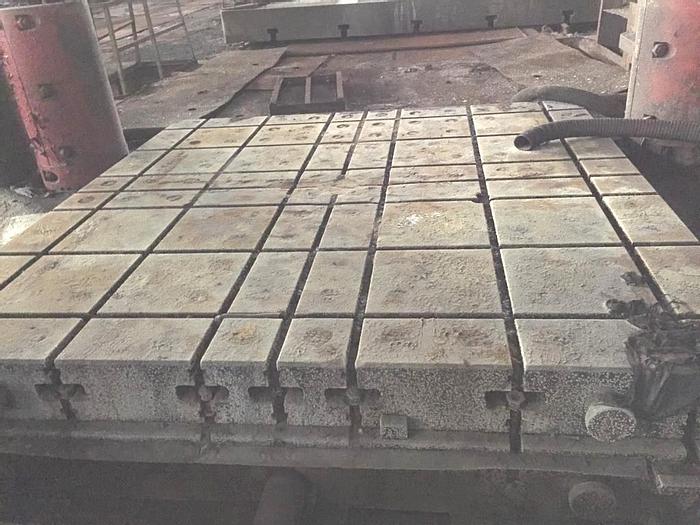

Moving table size : 3550 x 3550 mm,

Moving table stroke : 3550 mm,

Distance daylight between stroke stopper :

from left to right : 2130 mm,

front to back : 3730 mm,

Cushion capacity, nominal (central ejector) : 500 tons,

Cushion stroke above bed (central ejector) : 900 mm,

Cushion capacity, nominal (side ejector) : 630 ton,

Cushion stroke above bed (side ejector) : 900 mm,

The dimensions of the entire setup :

Length : 18750 mm,

Width : 10560 mm,

Height : 16400 mm,

Height over floor level : 10900 mm,

Press weight : 682 tons.
