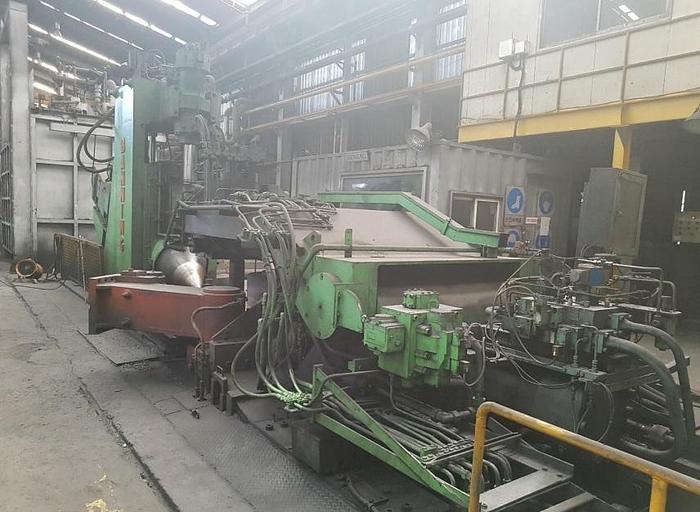

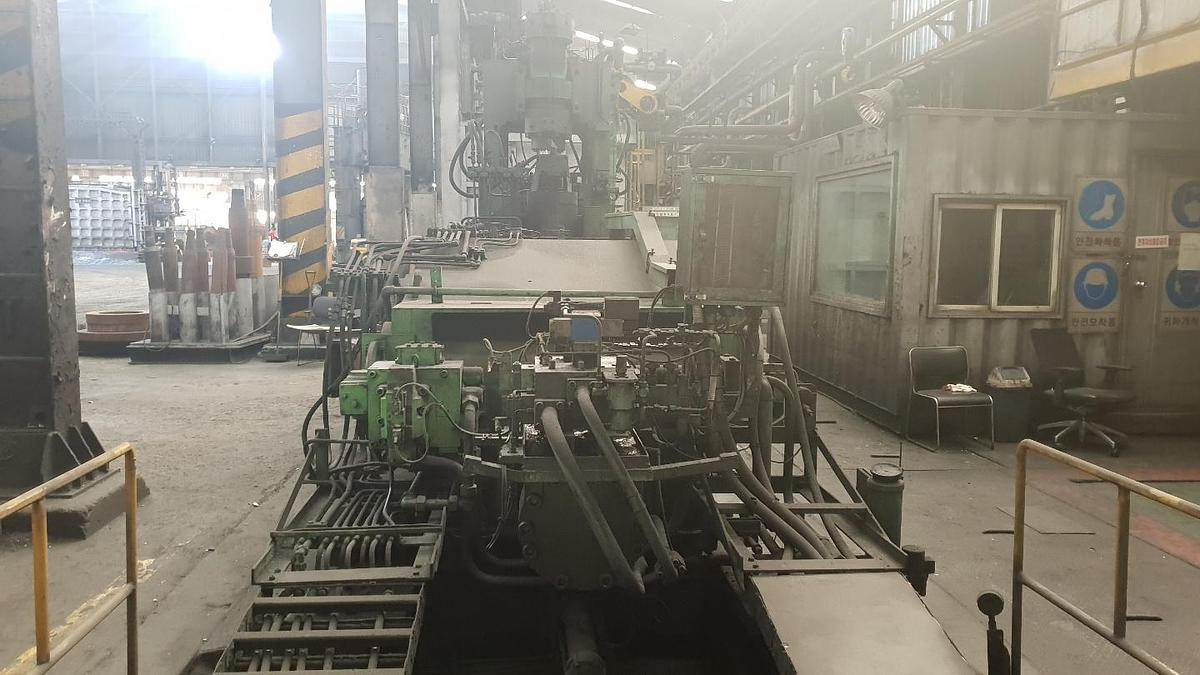

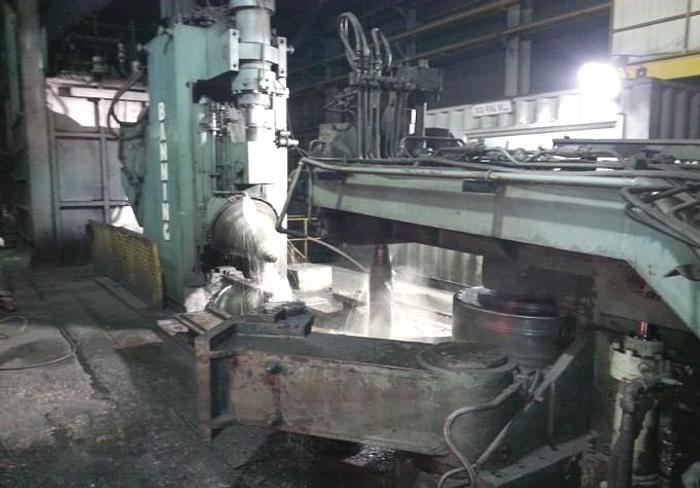

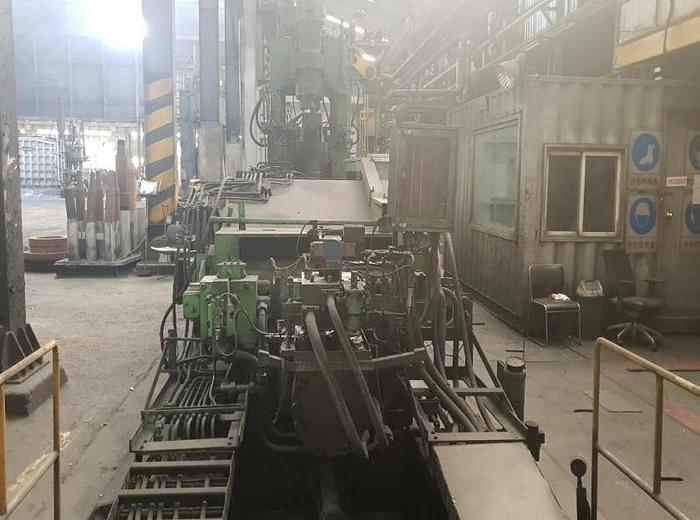

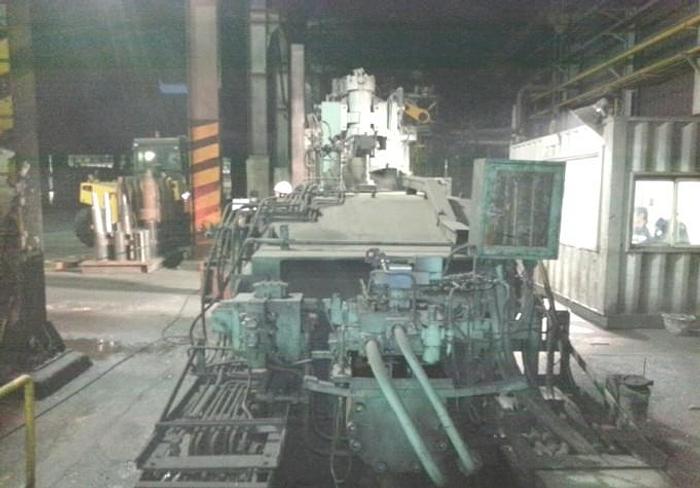

Ring Rolling Machine Banning H155/V105

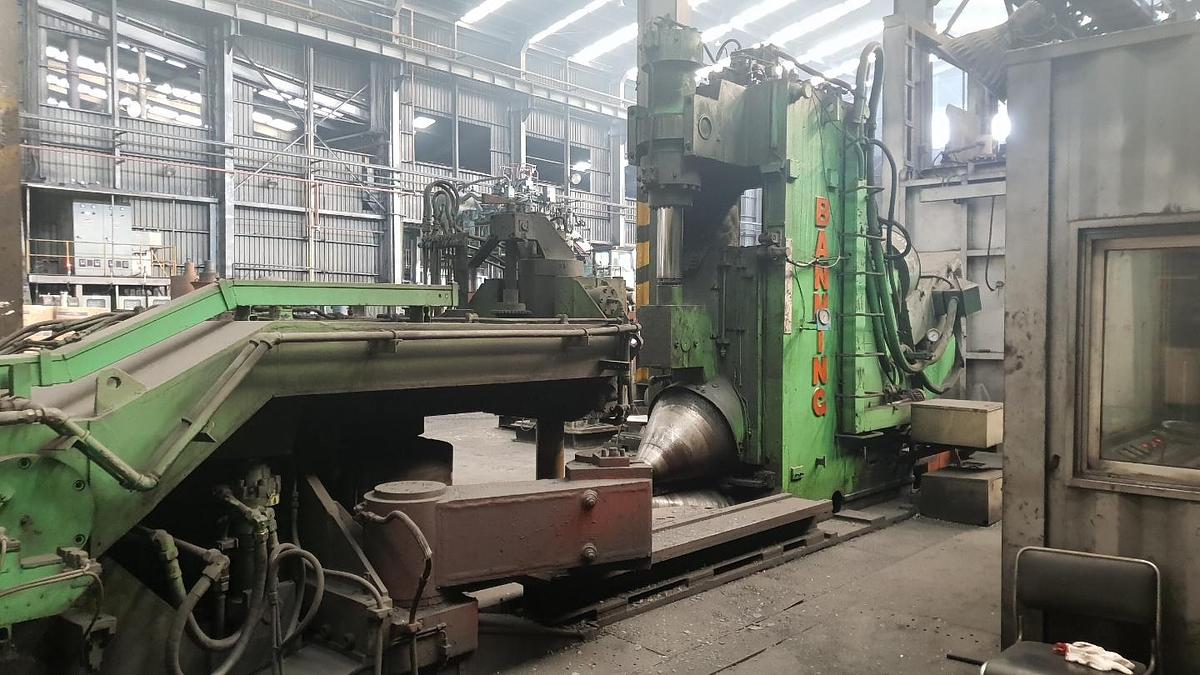

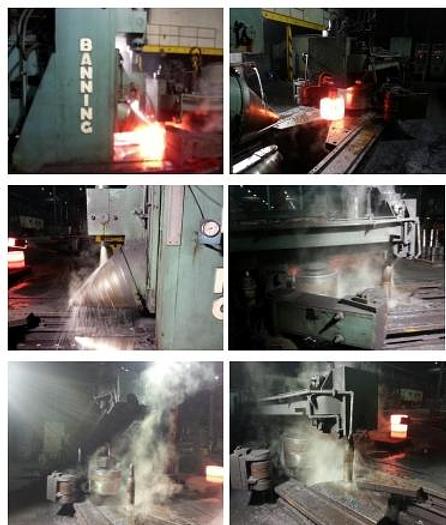

1) Ring Rolling Mill

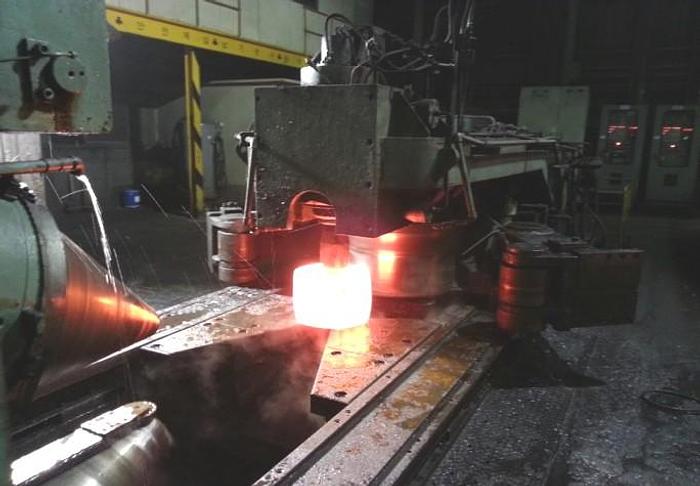

The horizontal / vertical ring rolling mill is provided for rolling seamless rings at forging temperature.

2) Working Range

Outside diameter of finished ring : 350 - 2800 mm,

Height of finished of ring blank for : 80 - 500 mm,

Mandrel diameter : 170 mm,

Height of ring blank : max. 580 mm,

Ration of wall thickness to height : max. approx. 4:1,

Ring weight : max. approx. 3000 kg,

The max. possible ring weight as well as the obtainable ration " wall thickness to height" is dependent on the cross section of the ring, the ring profile and the ring material, its deformation resistance depending on temperature, and on deformation speed.

3) Main Characteristics

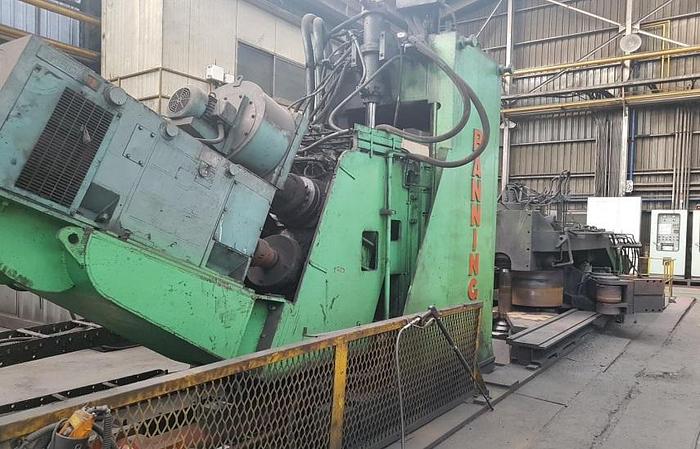

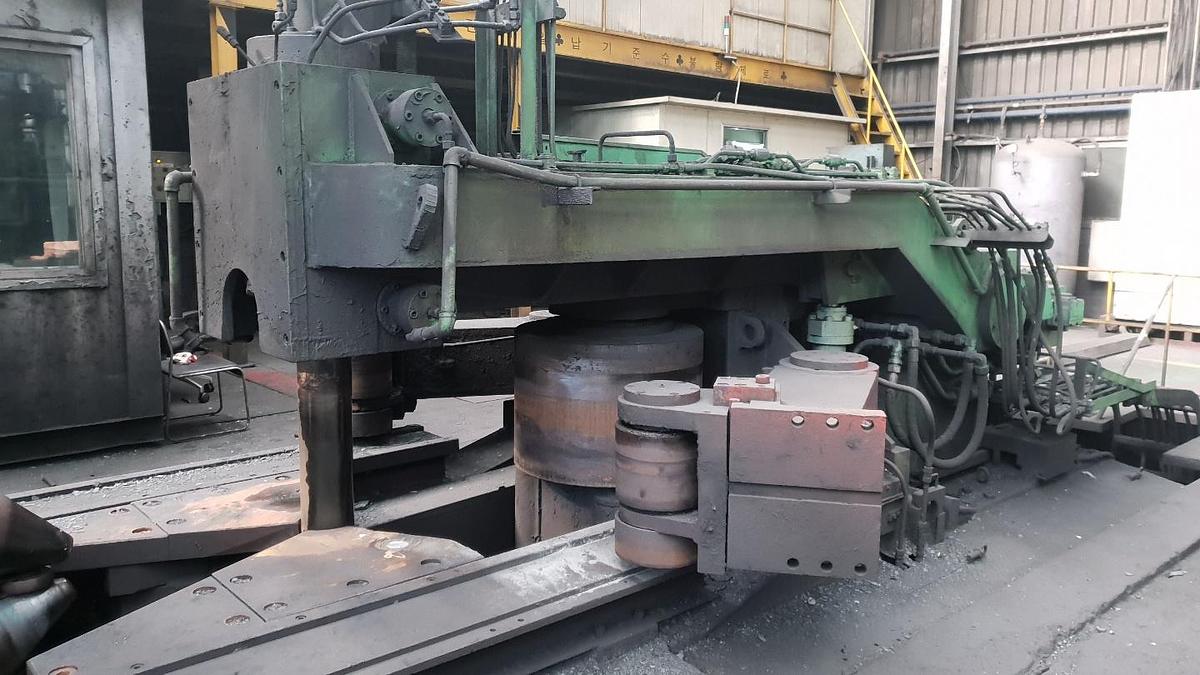

3-1 Horizontal stand

Rolling force : max. 155 tons,

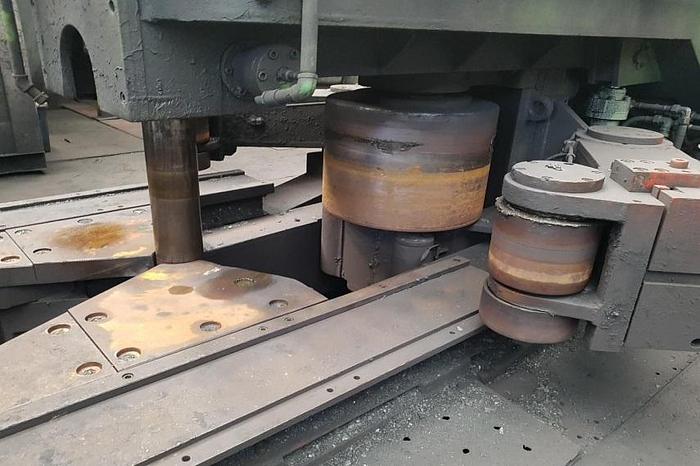

Main roll diameter : 800 mm,

No. of revolution of main roll : max. 30 rmp,

Rolling speed : max. approx. 1.25 m/sec,

Horizontal stroke of mandrel : 700 mm,

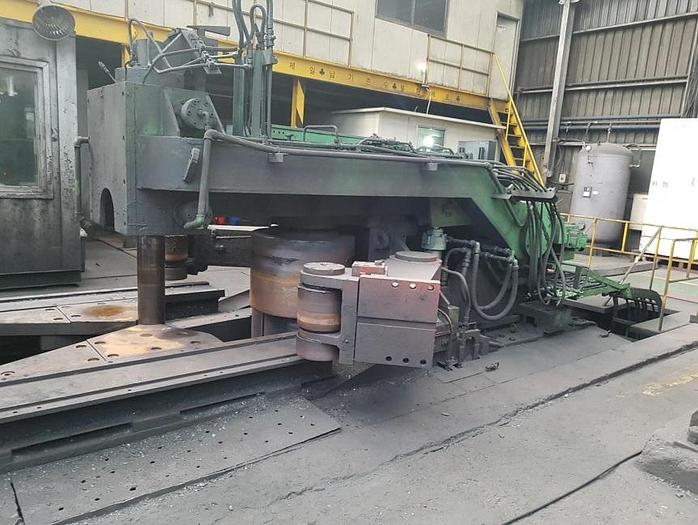

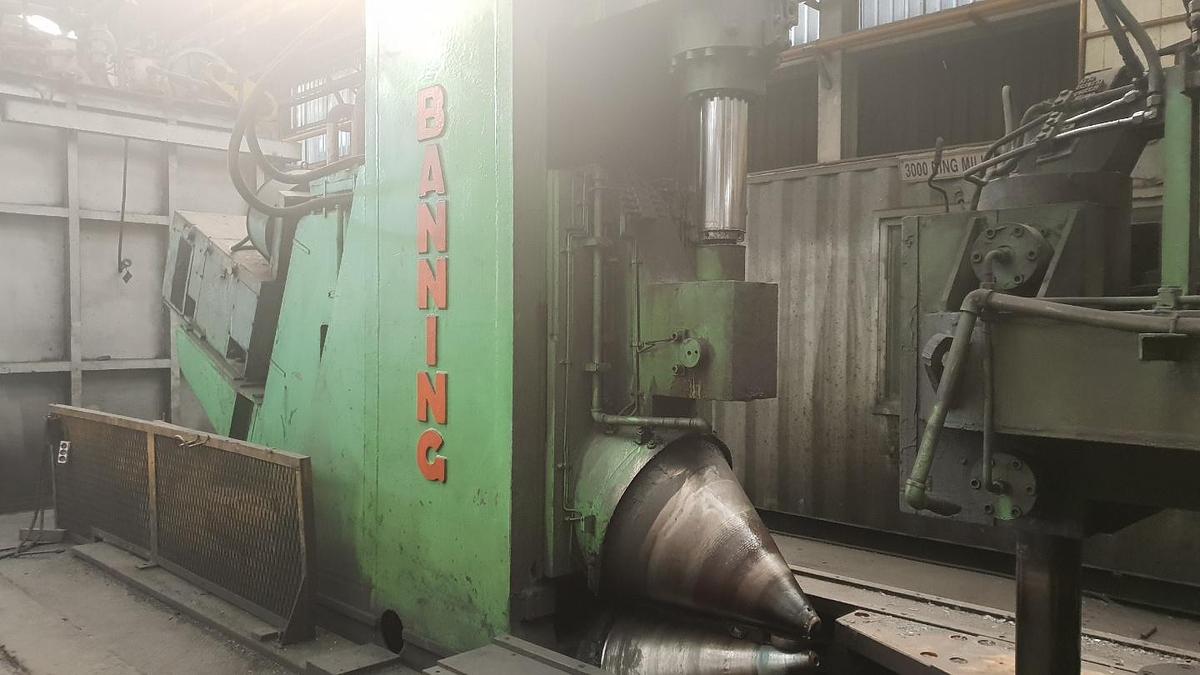

3-2 Vertical stand

Rolling force : max. 105 tons,

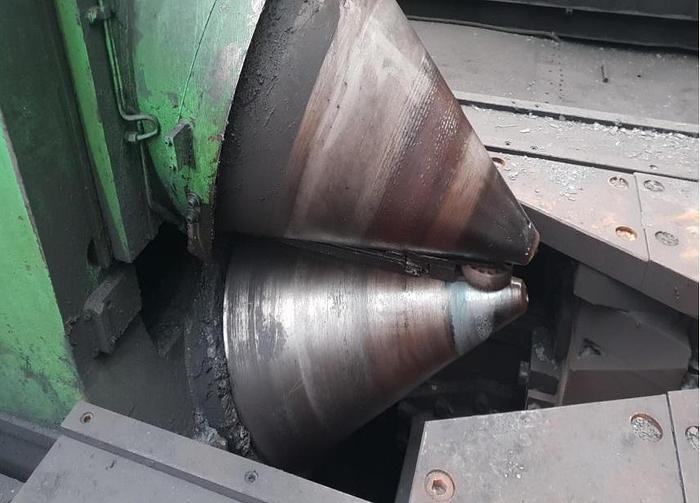

Taper cone angle : 45 °,

Horizontal stroke of vertical stand : 2500 mm,

Vertical stroke of upper taper roll : 500 mm,

Max. distance between the taper rolls : 580 mm,

4) Driving Unit

4-1 -1 Driving motor( DC-electro motor)

Nominal power : 315 KW,

Armature voltage : 440 V,

4-1-2 Driving gear reducer

Nominal power : 260 KW,

Ratio of reducer : 1/40,

4-2 Driving Unit of Taper roll

4-2 -1 Driving motor( DC-electro motor)

Nominal power : 260 KW,

Armature voltage : 440 V,

4-2-2 Driving gear reducer

Nominal power : 260 KW,

Ratio of reducer (2-shift) : 1st : 1/6.9, 2nd : 1/16.3

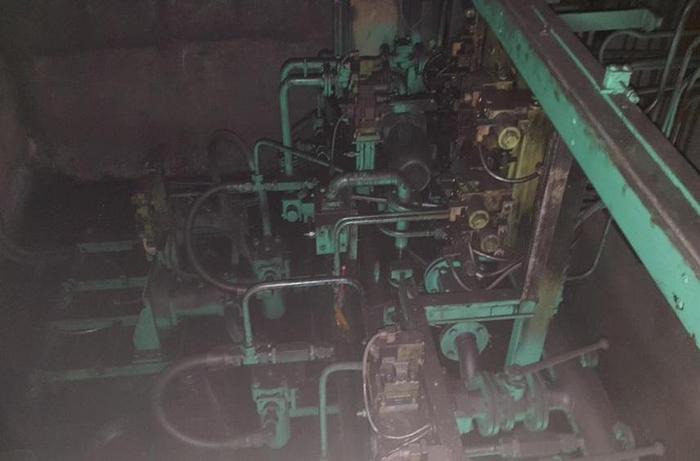

5) Driving Units for Hydraulic Power Unit

5-1- Driving motor for hydraulic pumps

Nominal power : 55 kw 4set,

Nominal speed 1200 rpm,

5-1-2 Ac-Electro-Motor for Oil Cooler

Nominal power : 3.7 kw 2 set,

Nominal speed : 1750 rpm,

5-2 Hydraulic Pumps

5-2-1 Main pump : A7V-160 4 set,

Delivery : 4-180 1/min 2set,

5-2-2 Pump for Oil Cooler : PVV2-055 2 set

5-2-3 Operation pressure : 210 kg/cm2

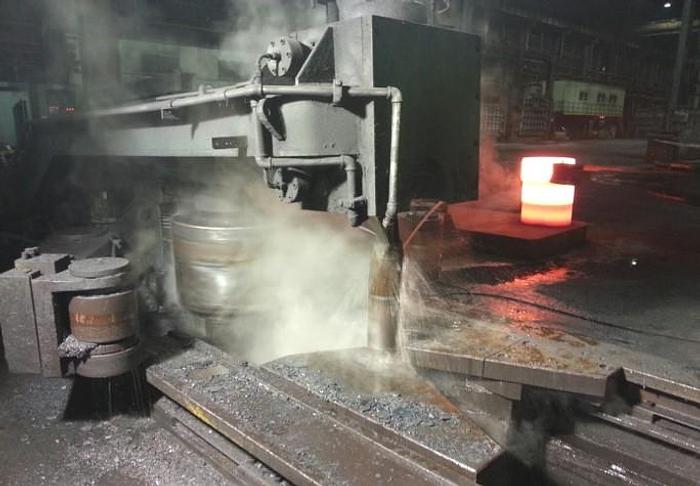

6) Cooling of Roll Tools (The roll are cooled by water)

Pressure : 0.2kg/cm2,

7) Electric Equipment

Power Supply Unit

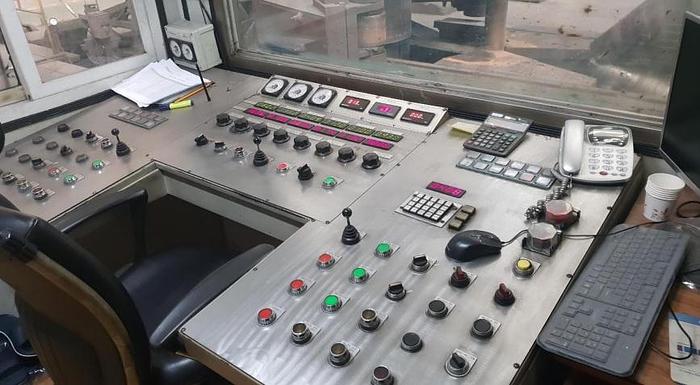

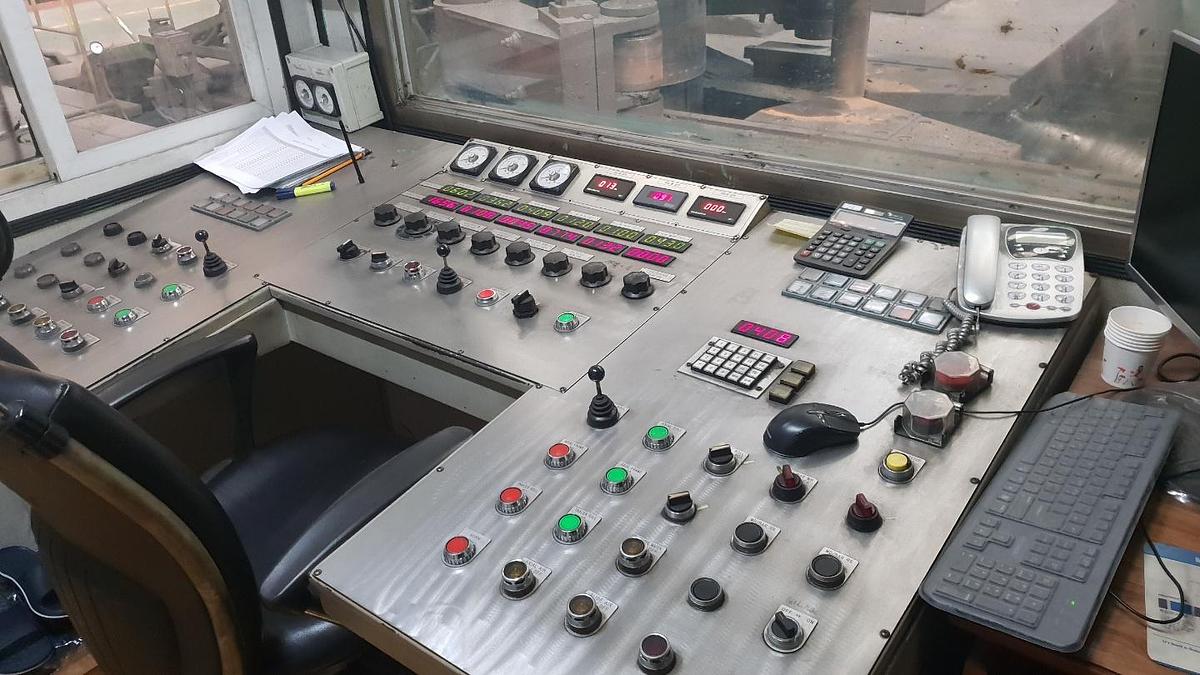

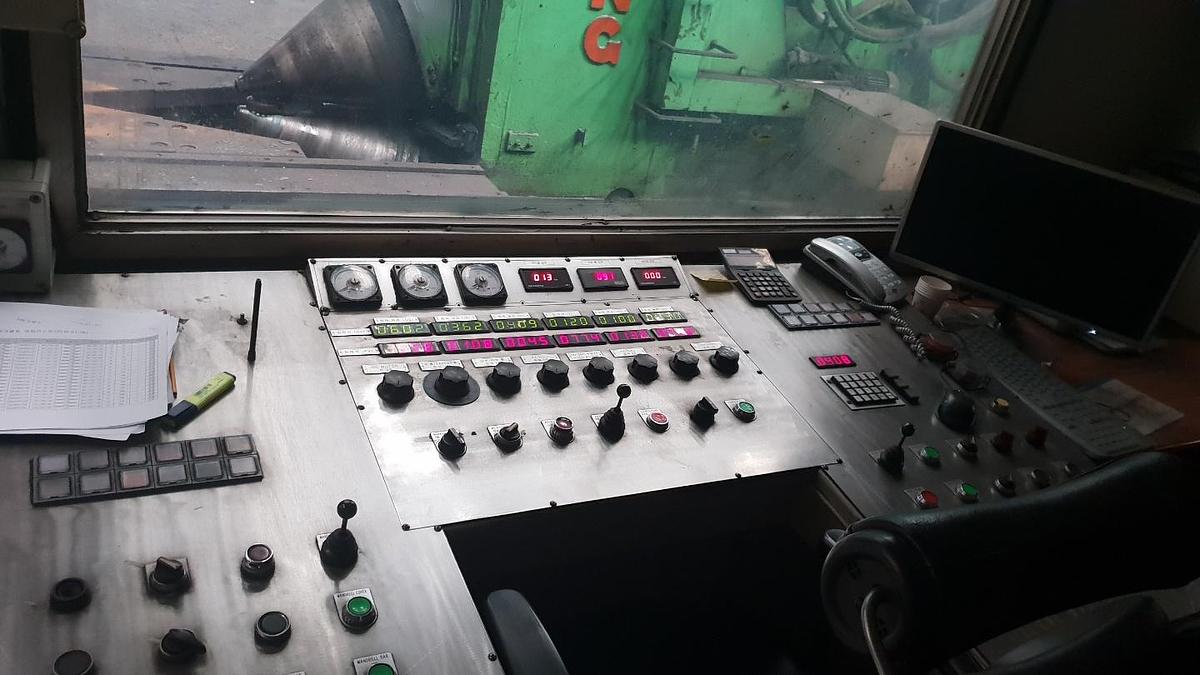

Control Desk

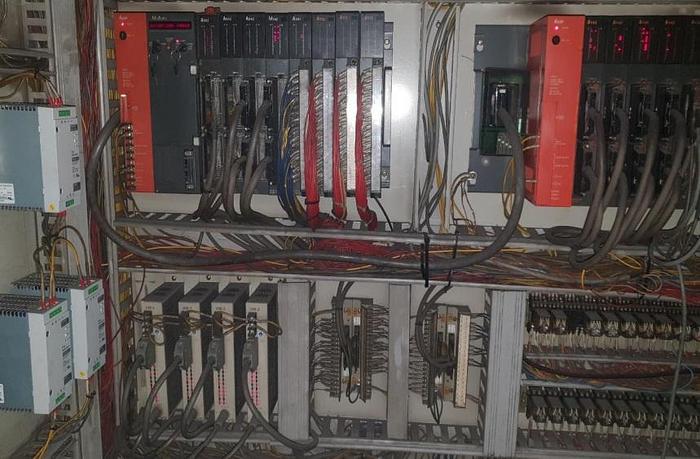

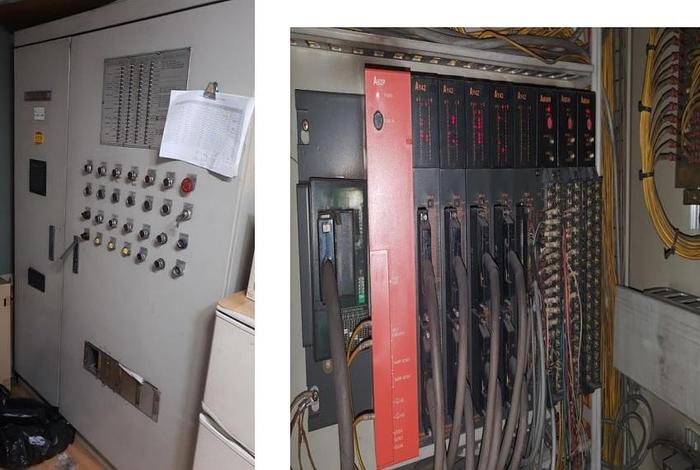

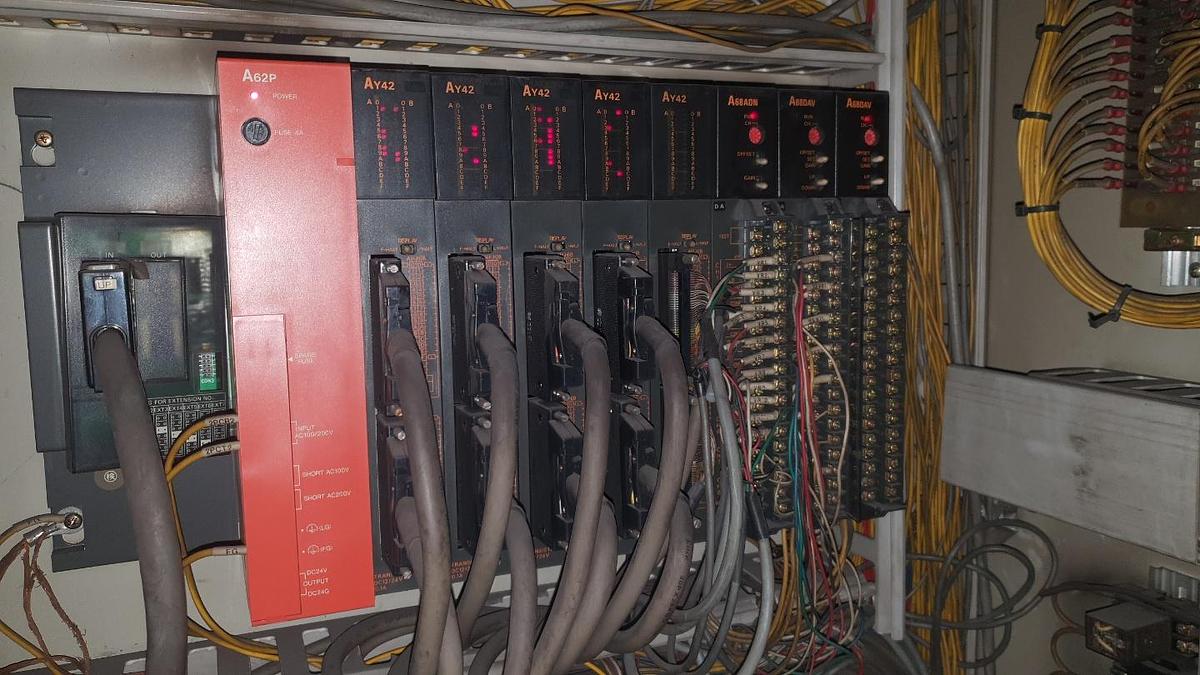

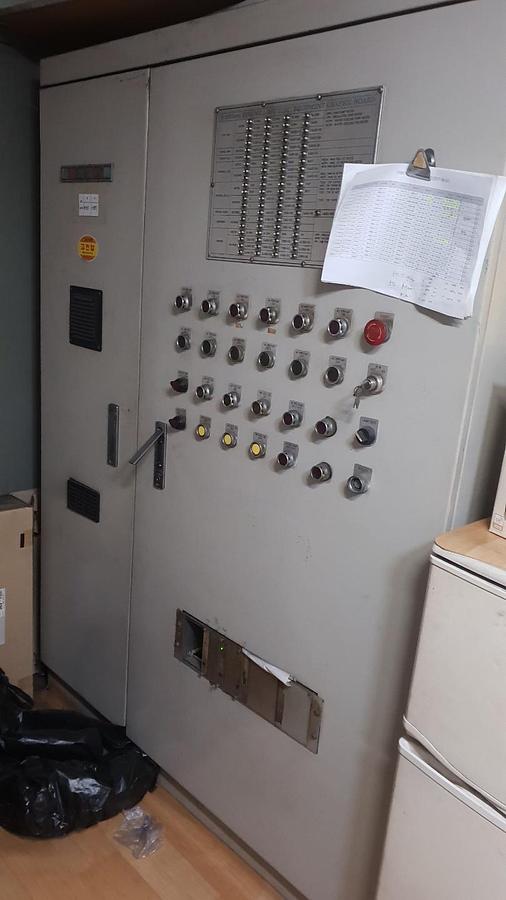

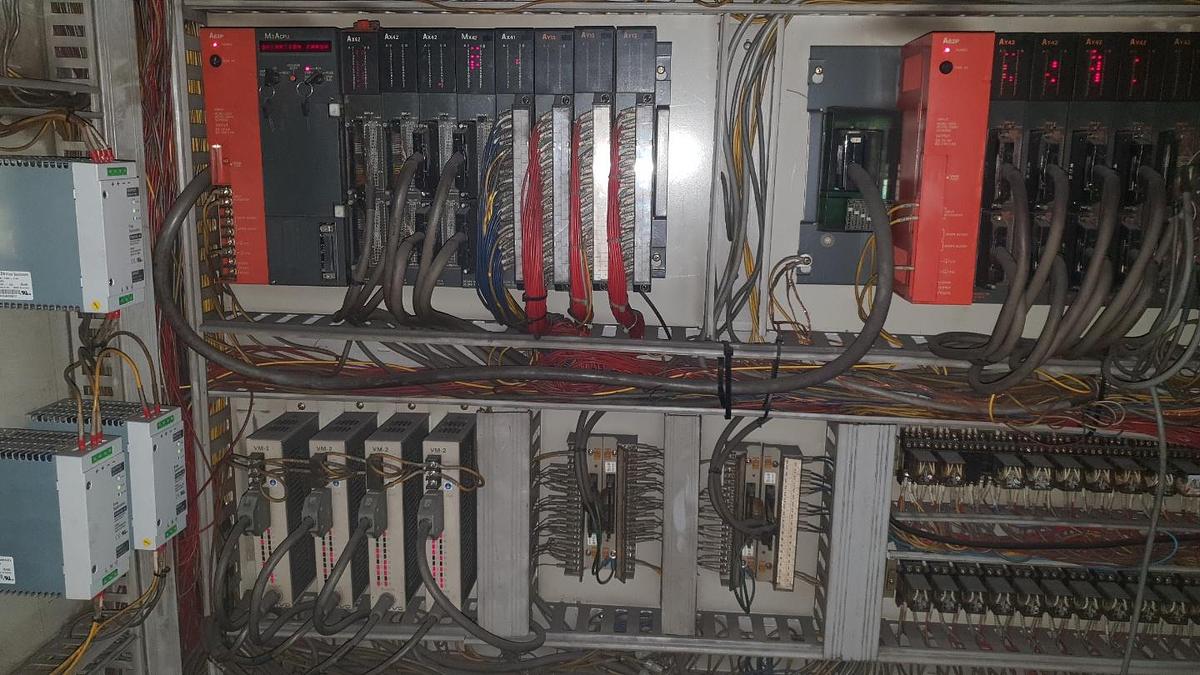

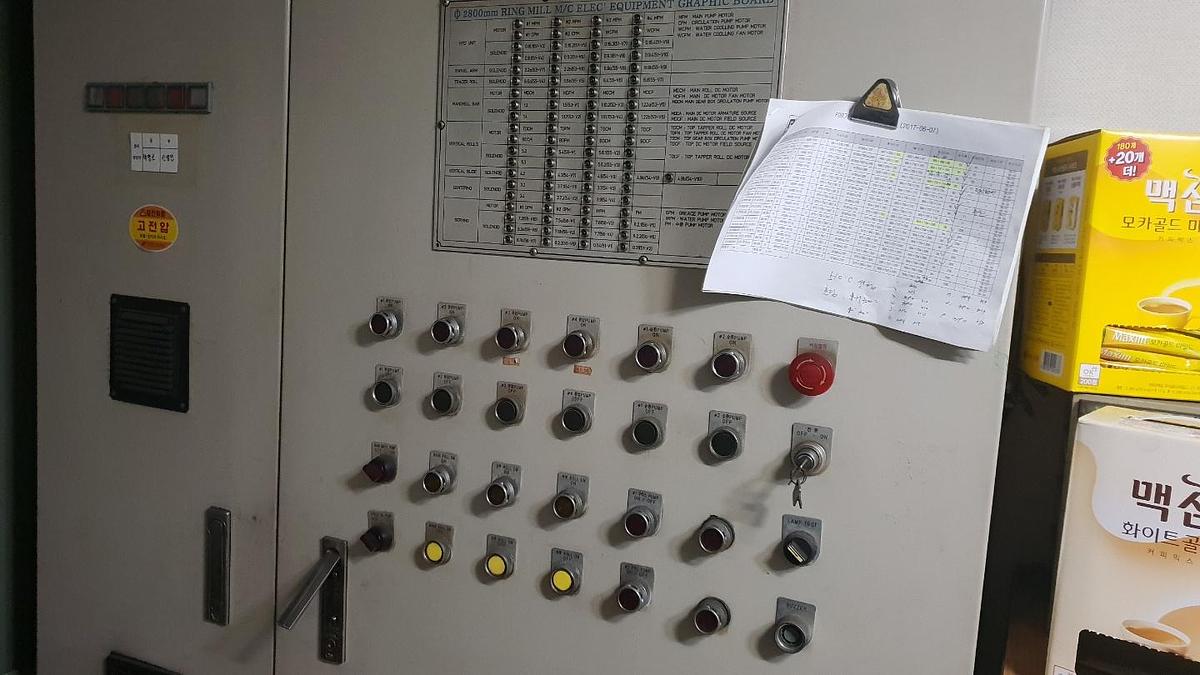

Control Cabinet

8) Control and Operation Function

Operation for the passes pressure control

9) Actual Value Display for the Ring

Ring O. D

Ring I. D (Calculated)

Ring wall thickness

Ring height

10) Selection of the Final Diameter

Ring O.D
