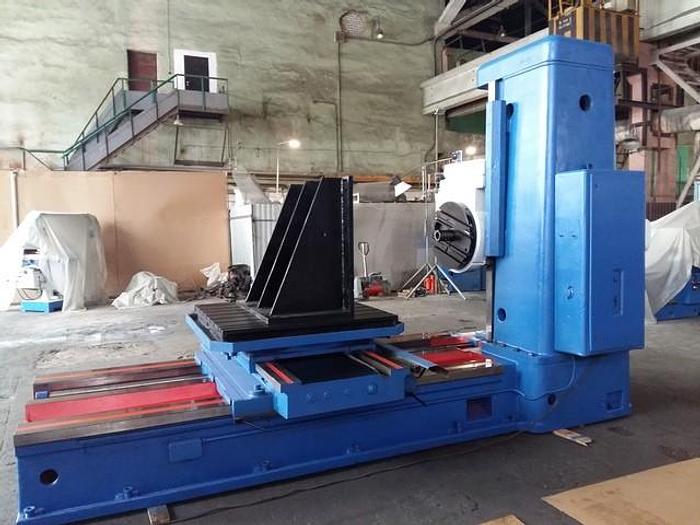

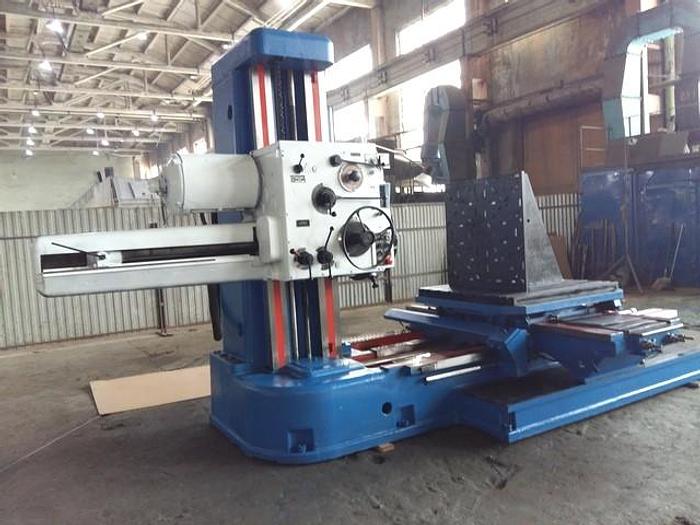

Borer Horizontal Table Type W100

Spindle size : 100 mm,

Spindle Taper - Morz 6

X-Axis : 1600 mm,

Y-Axis : 1120 mm,

Z-Axis : 1250 mm,

W-Axis : 900 mm,

Table size,: 1250 x 1250 mm,

Max table load : 3 tons,

Max faceplate diameter : 900 mm,

Faceplate turning speed 7,1 – 224 rpm

Main motor power : 11 kW,

Motor speed: 7,1 – 1120 rpm

Dimension : 6710 x 3450 x 3000 mm,

Weight : 14.5 tons.

Machine is cleaned & painted, ready for export
