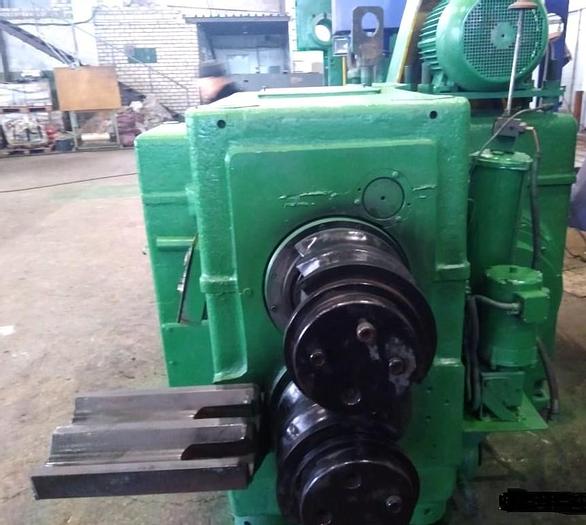

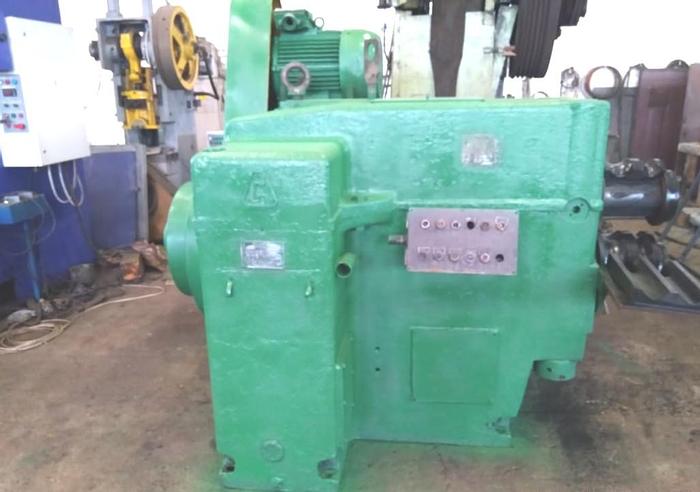

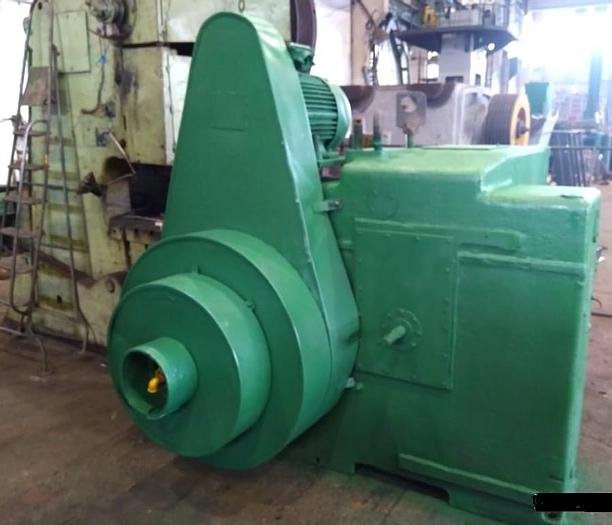

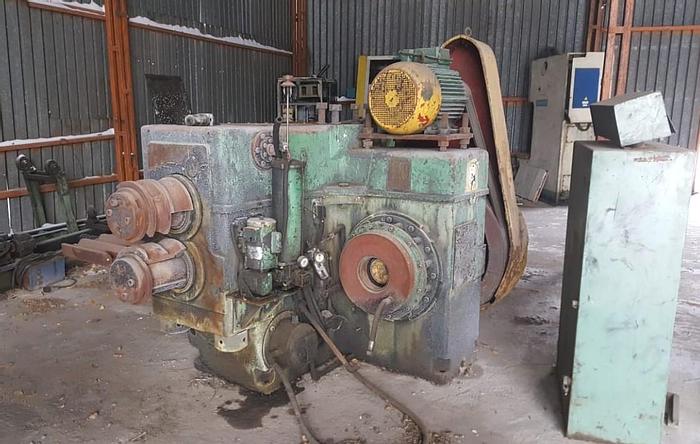

Reduce Forging Roll CA1335

Capacity : 80 tons,

Nominal force : 800 kN,

Nominal center distance between rolls : 320 mm,

Center distance adjustment : ±3 mm,

Roll rotation frequency : 65 min-1,

Maximum stock diameter : 95 mm

Tooling dimensions :

Diameter : 180 mm,

Length : 280 mm,

Main drive motor power : 36 kW,

Overall dimensions (floor space) : 2590 x 1930 mm,

Height above floor level : 2130 mm,

Mass approx : 8.2 tons.

Technical manuals available.

Without electric and lubrication systems.
