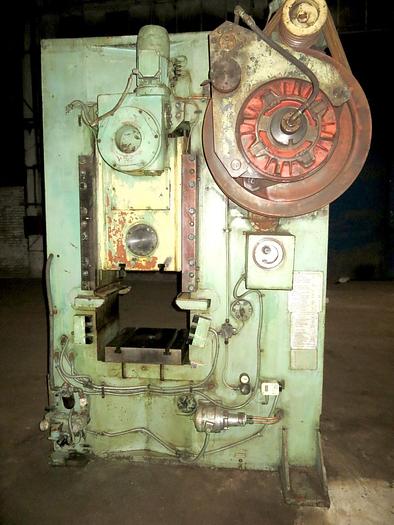

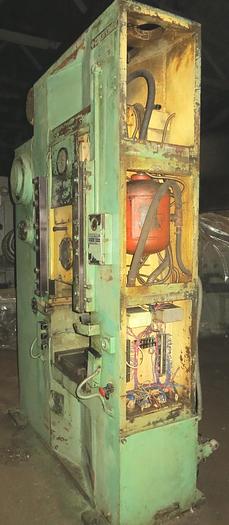

Press Knuckle Joint Coining KB8336
Sold
Specifications
Manufacturer | Barnaul, Russia |
Model | KB8336 |
Year | 1985 |
Condition | Used |
Stock Number | MA0605 |
Item condition | Very good condition |
Capacity tons | 400 |
Description
Capacity : 400 tons,
Ram stroke : 130 mm,
Stroke per min. : 50,
Shut height : 475,

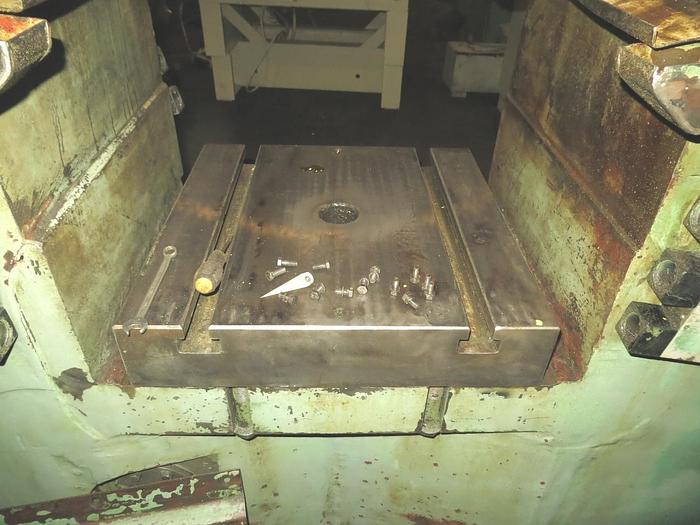

Table size: 500 x 500 mm,
Bolster plate thickness : 100 mm,
Lower ejector :
- Capacity : 12 tons,
- Stroke : 80 mm,
Upper ejector :
- Capacity : 4 ton,
- Stroke : 10 mm,
Overall dimensions of press:
- floor space : 1980 x 1240 mm,
- height about floor level : 2800 mm,
Motor power : 12 kW,
Weight : 8.5 tons.
Have to be revised and set-up by electric and hydraulic part.
