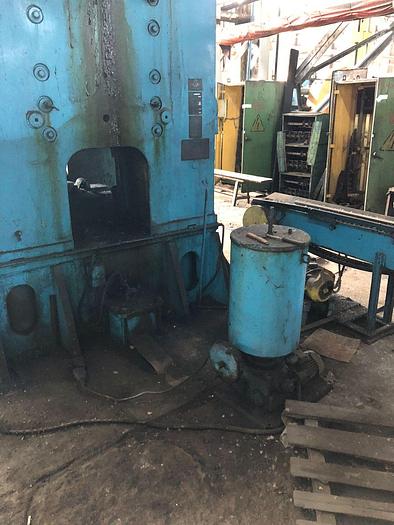

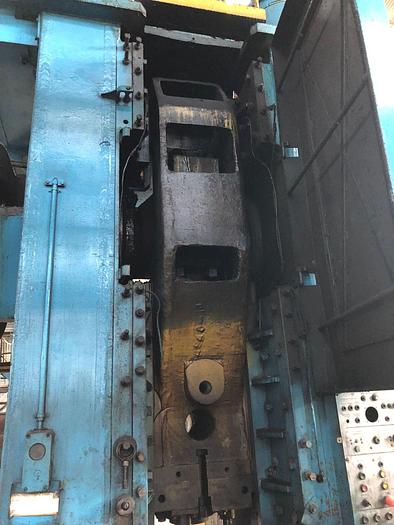

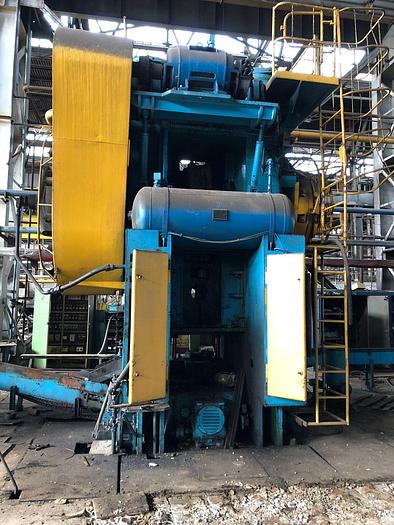

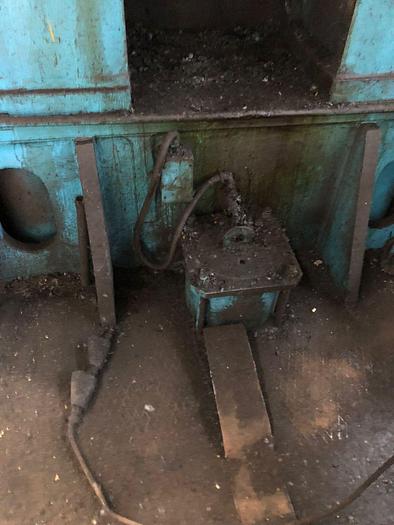

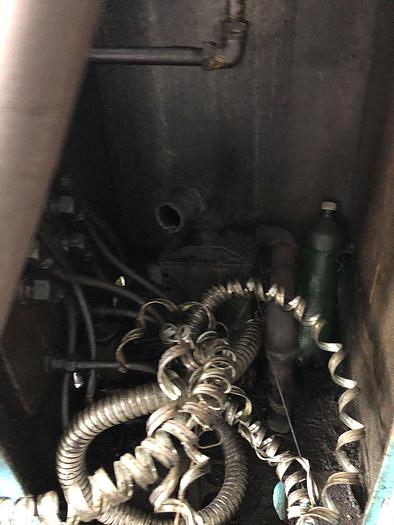

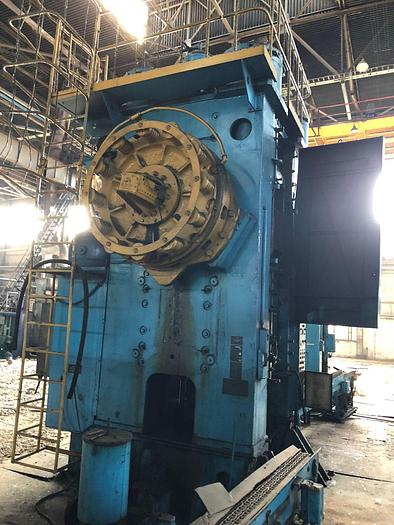

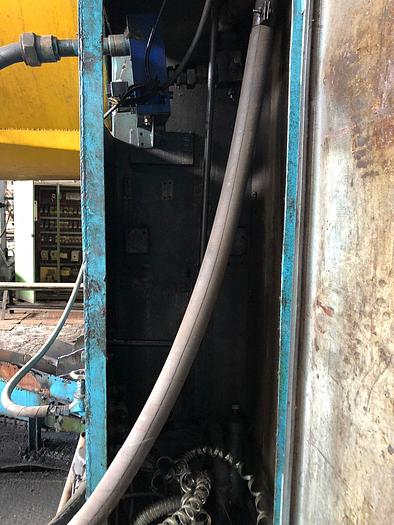

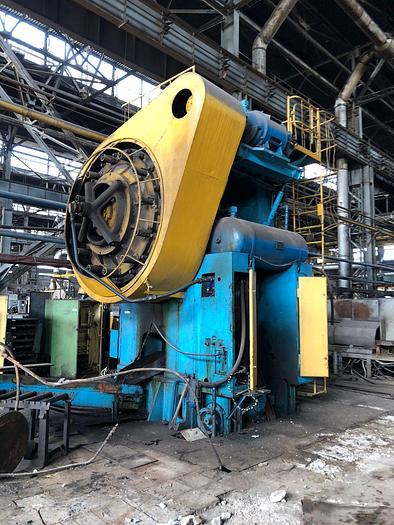

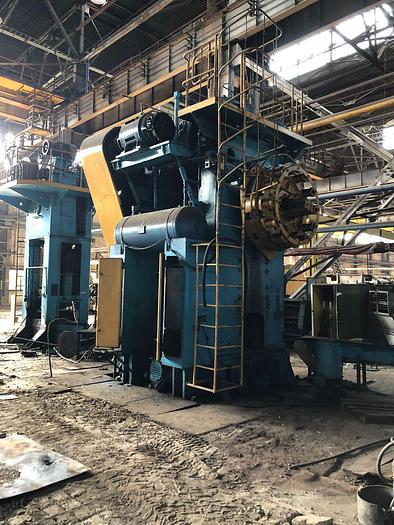

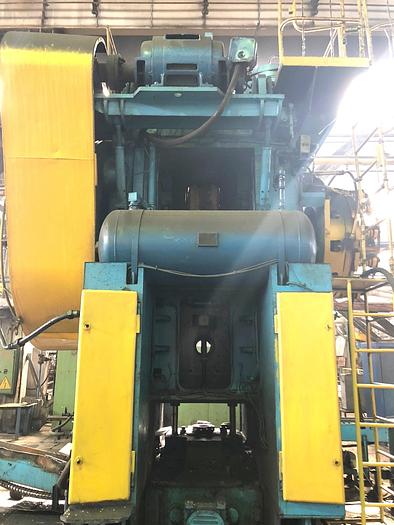

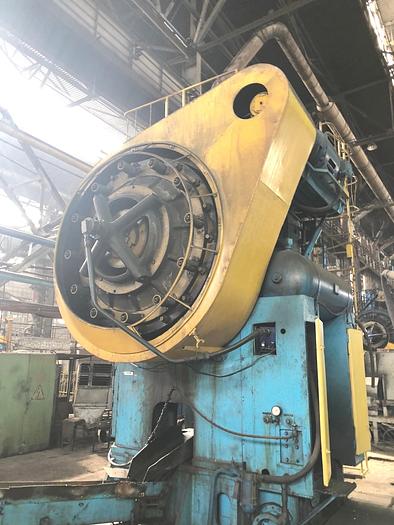

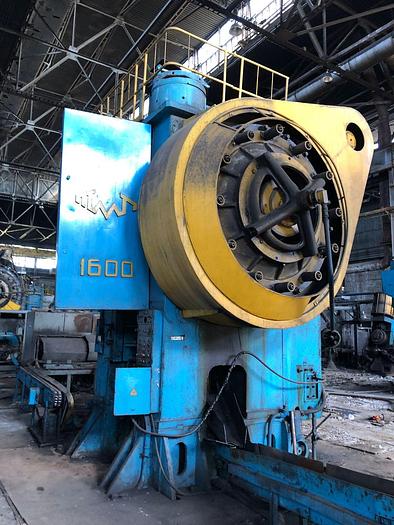

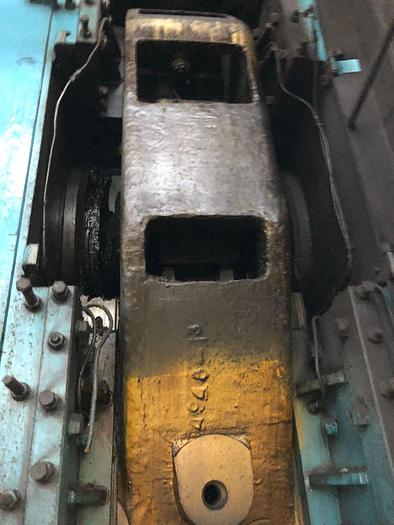

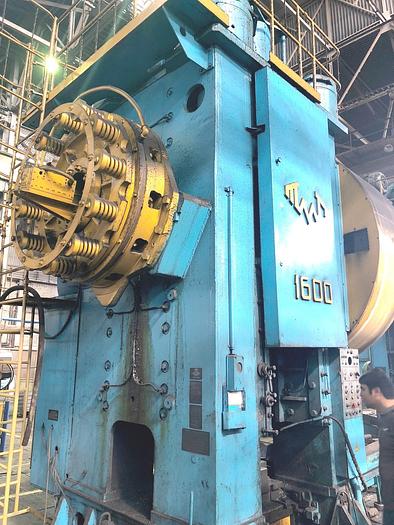

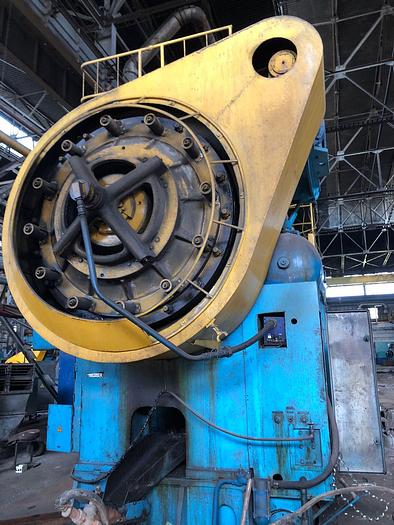

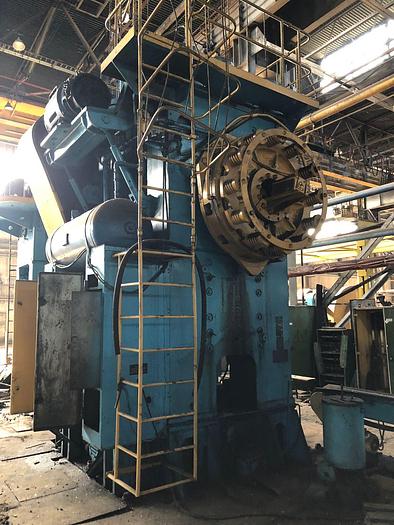

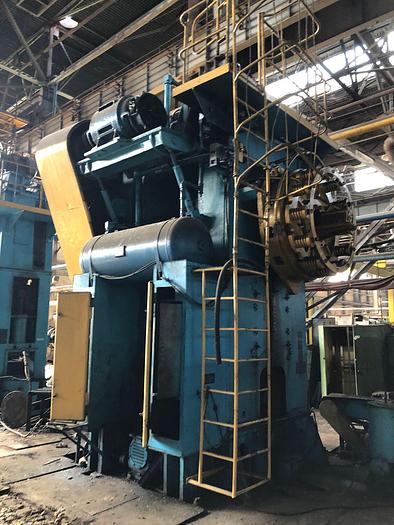

Press Hot Forging TMP Voronezh Russia KB8042
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | KB8042 |
Year | 1978 |
Condition | Used |
Stock Number | MA0552 |
Item condition | Excellent condition |
Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Slide stoke : 300 mm,
Number of slide continuous stroke per minute : 75,
Minimum distance between bed and slide when in down position : 660 mm,
Adjustment stroke : 10 mm,

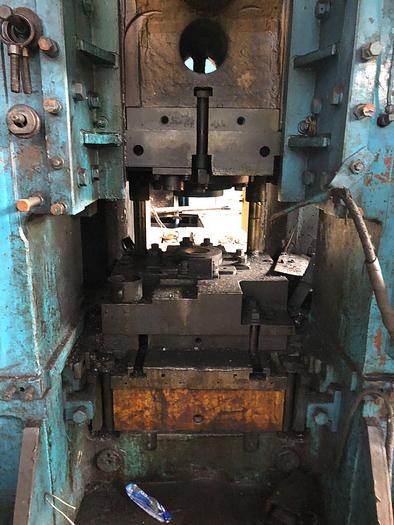

Slide dimensions :-
Left to right : 860 mm,
front to back : 910 mm,
Bed dimensions :-
left to right : 940 mm,
front to back : 1200 mm,
Height above bed level : 450 mm,
Slide knockout : force - 6,3 tf and stroke -50 mm,
Bed knock out : force - 10 tf and stroke : 50 mm,
Dimensions of openings in uprights :-
height : 560 mm,
width : 600 mm,
Distance clear between uprights : 1080 mm,
Overall dimensions :-
left to right : 5060 mm,
front to back : 3940 mm,
height above floor level : 5125 mm,

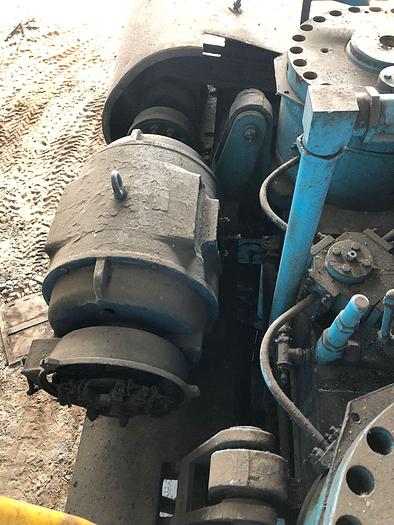

Drive motor power : 110 kW,
Weight of machine : 120 tons.
