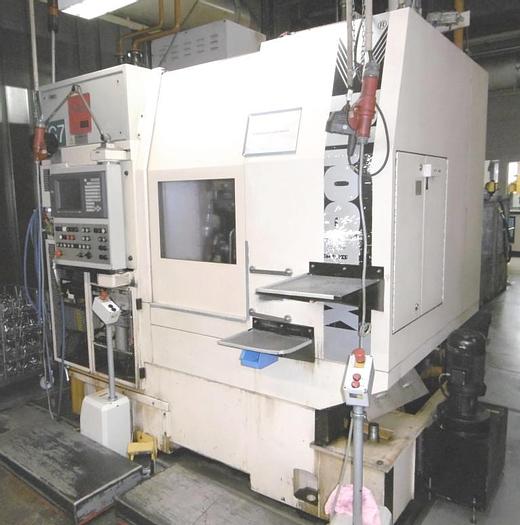

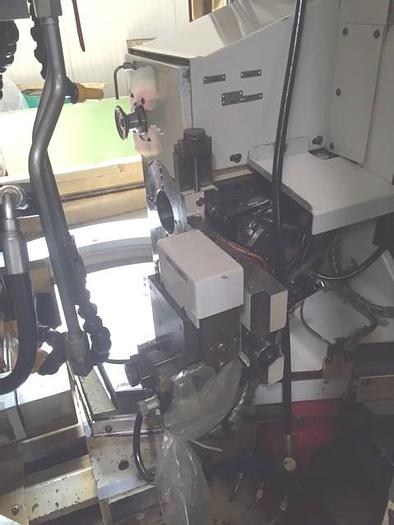

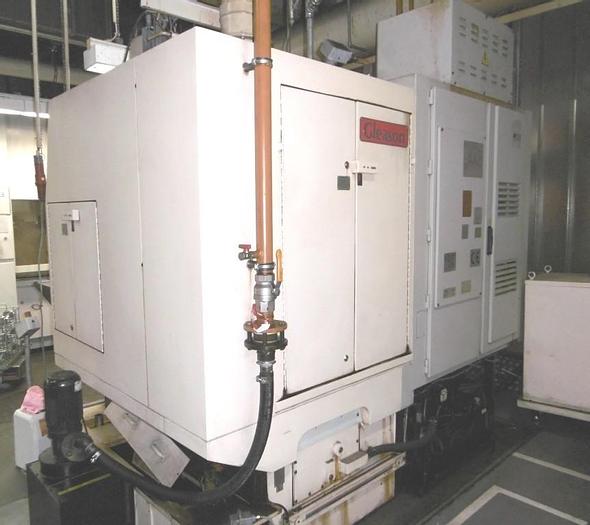

Gear Grinder Spiral Bevel CNC 200G

CNC Bevel Gear

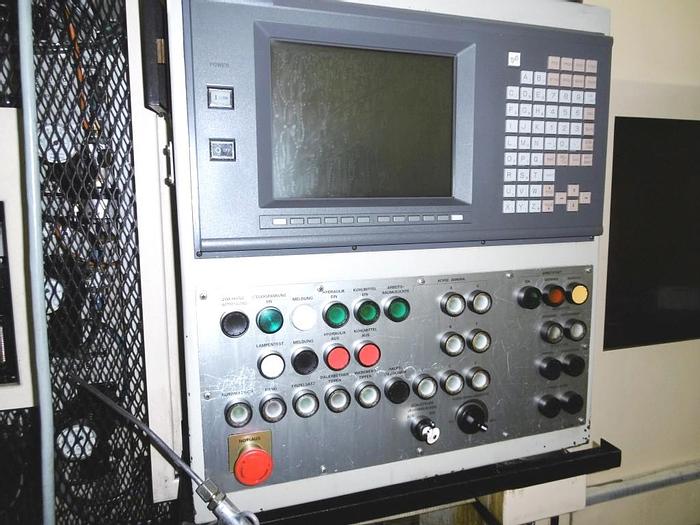

CNC Fanuc 160i

Machining diameter in mm max. : 216 mm,

Machining length in mm max. Tooth height : 16 mm,

Max. Tooth width : 40,65 mm,

Spindle speed in rev / min max. : 6000 U / min,

Tool taper max. : 190.5 mm (7.5),

Additional equipment – Special Waguri spindle,

X axis : (horizontal) -152 to 102 mm,

Y-axis : (vertical) -102 to 178 mm,

Z-axis : Sliding BaseTravel 2″ to 12″ (51 to 304mm) mm,

B-axis : 3-90,

Max distance machine center – spindle slide :. 115 mm,

Teeth : 5 – 200 (inclusive),

St. workpiece outside diameter max. :215 mm,

Tooth profile – width x height : 16 x 40,65 mm,

Wheel diameter : 51 -190 mm

Grinding wheel speed : 1000-6000 1 / min,

Workpiece speeds : 0 – 30 1 / min,

workpiece spindle bore : conical 3-29 / 32″,

Axis speed : 125 mm / sec.
