6 tons Hammer Forging Pneumatic Line Erie
Specifications
| Manufacturer | Erie |
| Year | 1996 |
| Condition | Used |
| Stock Number | MA0537 |
| Item condition | Good Condition |
| Capacity tons | 6 |
Description

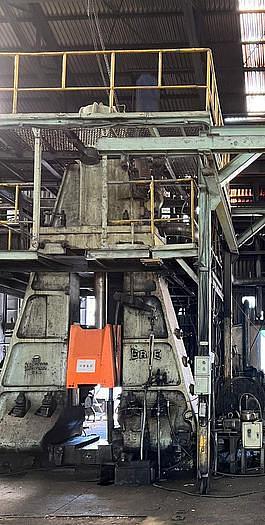

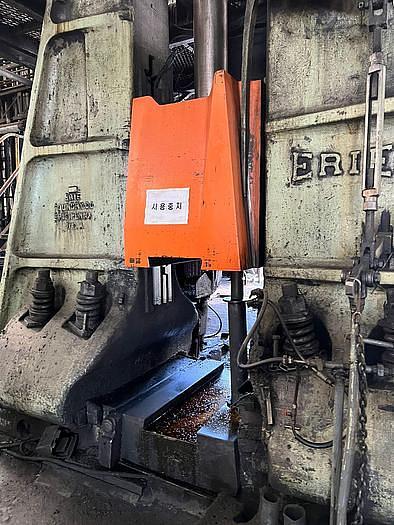

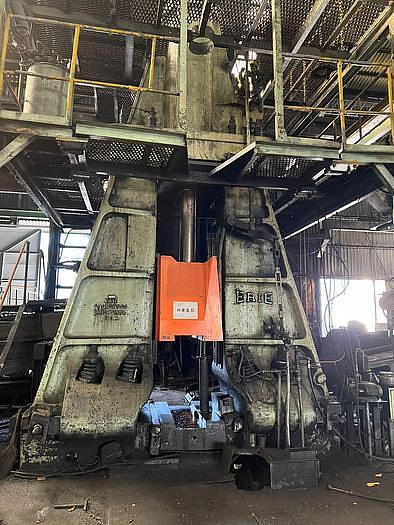

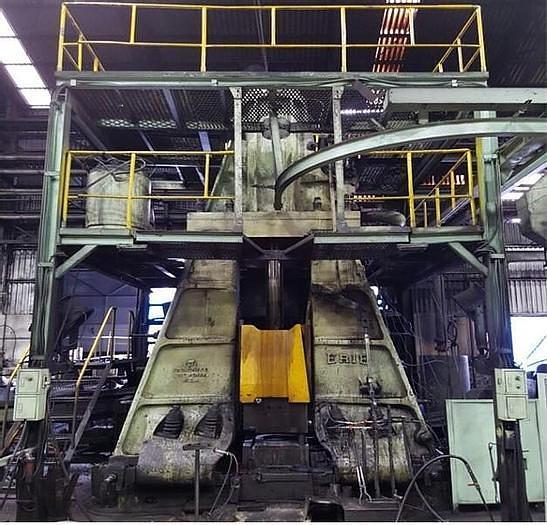

1) Hammer Forging Pneumatic
Make : Erie
Yom : 1996
Capacity : 6 tons,
Cylinder Bore : 550 mm,
Max Stroke : 1250 mm,
Distance from Ram to Sow Block : 500 mm,
Distance between Guides : 750 mm,
Ram Front Back : 900 mm,
Front Back : 1775 mm,
Left Right : 3500 mm,
Height above floor Ft & In : 21-0,
Head room to drop in rod Ft. & In : 31-7.
Anvil Weight - 130 tons.
Total Weight : 195 tons.
a) Ram - 1 pc
b) Show Block - 1pc ,

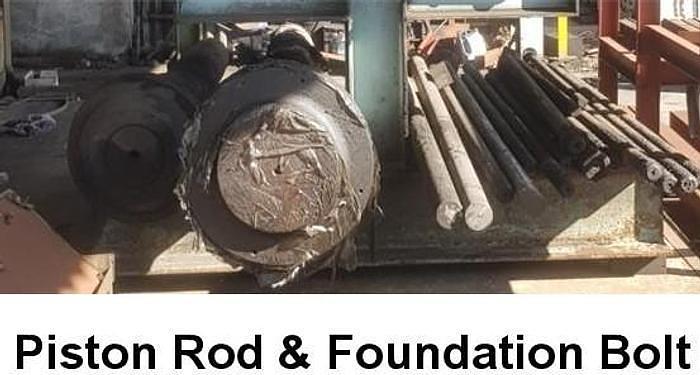

c) Piston - 2 pcs ( for Head )
d) Ram Guide - 1 set
e) Piston Head - 2 pc.

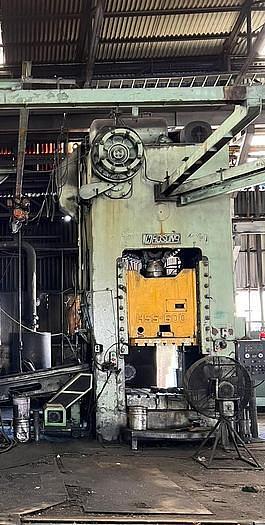

2) Press Trimming
Make : Hosung Korea,
Yom : 1996
Capacity : 600 tons,
Length of stroke : 350 mm,
Number of stroke : 26,
Die height : 730 mm,
Opening height : 1080 mm,
Adjustment of slide : 200 mm,
Area of slide : 1150 x 1280 mm,
Area of bolster : 1200 x 1300 mm,
Slide opening : 730 x 880 mm,
Working height : 750 mm,
Air pressure : 5 kgf/cm2,
Die cushion capacity : 40 ton,
Die cushion stroke : 180 mm,
Die cushion area of pad : 810 x 810 mm,
Main motor : 45 Kw x 6P,
Press Weight : 50 tons.
Total Weight : Approx 243.5 tons including one piece of Anvil weight 130 tons.
This production line can make following parts:
1) Big size of Ring Gear
2) Pinion Gear
3) Drive Knuckle
4) Automobile Parts.
