Hot Forging Line Weingarten

Automated Forging Line

Drive : Servo drive, single action

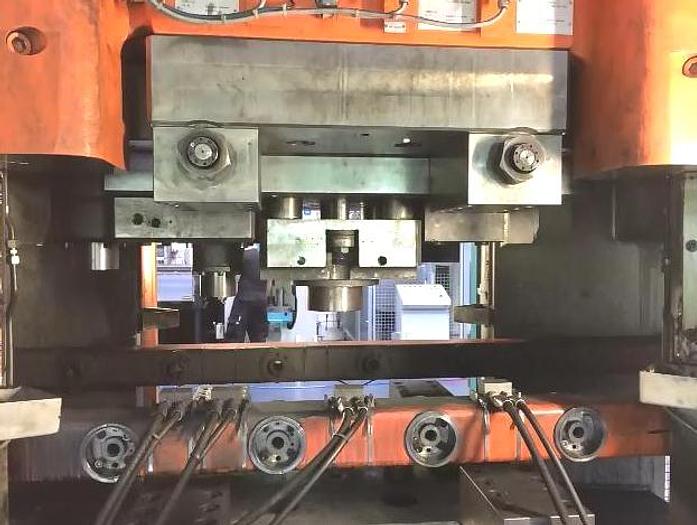

1. Hot Forging Press Friction Screw

Make : Weingarten,

Press capacity : 1250 tons,

Working capacity : 225 kJ,

Two point drive

Strokes : 40 to 60 strokes/ minute,

Stroke : 300 mm,

Tool stations : 4,

Stroke adjustment : +/- 5mm,

Table size : 1050 x 1100 mm,

Crankshaft turning speed : 120 min-1 with 60 strokes/ minute

Table ejector : 100 kN,

Daylight : 850 mm,

Motor : 380 V / 50 Hz,

Options:

Ejector stroke table : 55 mm,

Ejector force table : 3 x 1000 kN,

Ejector stroke ram : 15 mm,

Ejector force ram : 3 x 500 kN,

4-point table cushion : 4 x 1000 kN x 50 mm stroke,

4-pont ram cushion : 4 x 1000 kN x 50 mm stroke,

Tool changing wagon : Carrying capacity 3000 kg,

Automated part feeder : 30 parts/ minute x 1000 mm length,

Electronic transfer :

3 axes,

Feed motion : 315 mm,

Closing : 100 mm per side,

Lifting : 60 mm,

All technical documents available

Transformer.

Induction heater SMS ELOTHERM 1000 kW.

Part separating.

Part handling before and after forging.

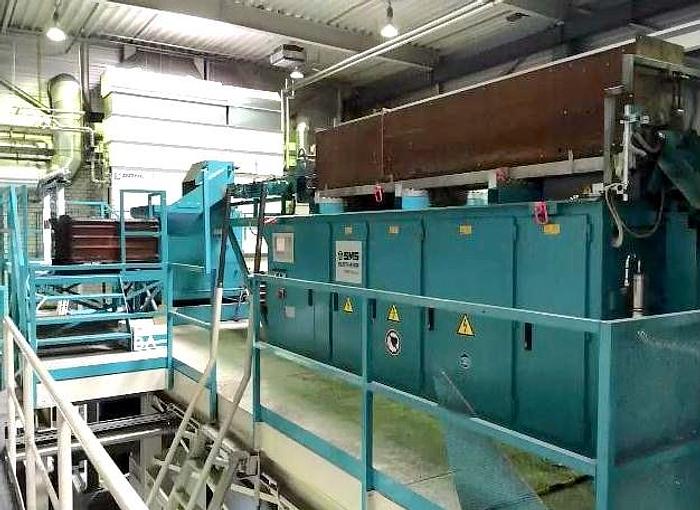

Cooling conveyor BSN (part of it).

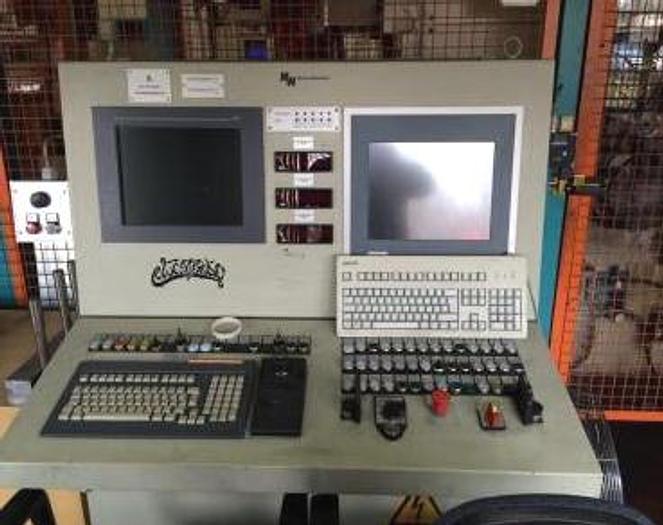

Center PLC system / SIMENS S7-400.

It has 4 stations,

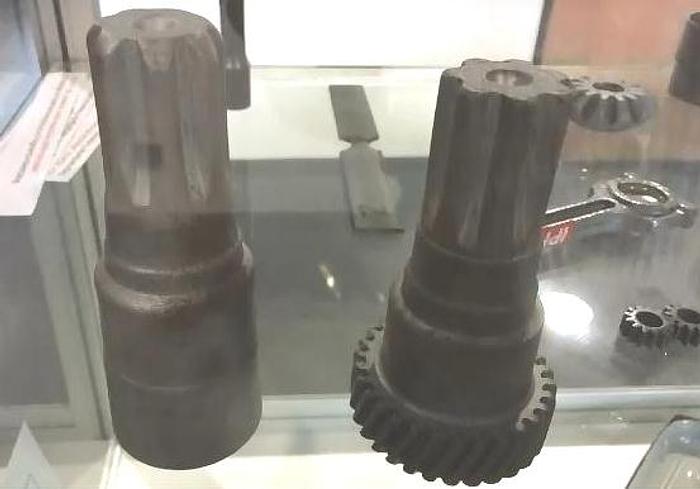

The idea was to make flanges bigger than his Hatebur machine both in diameter and length ejector stroke is 200 mm,

Customer believes you can make 130 mm flange diam,

With 70 mm kickout or more.

Bolsters in included. Completely automated with many accessories.
