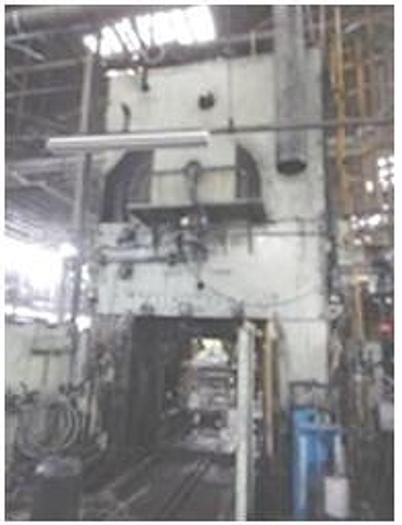

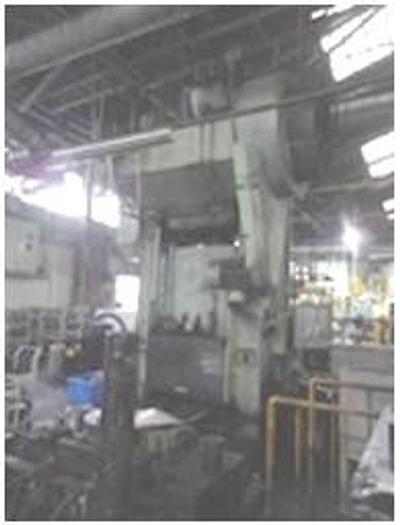

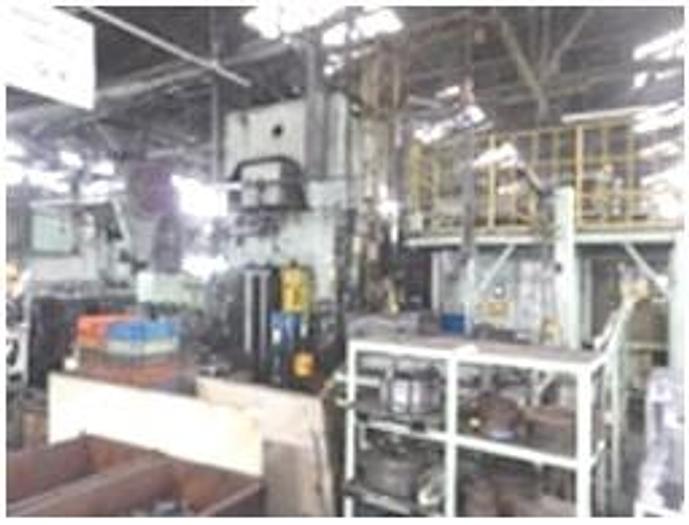

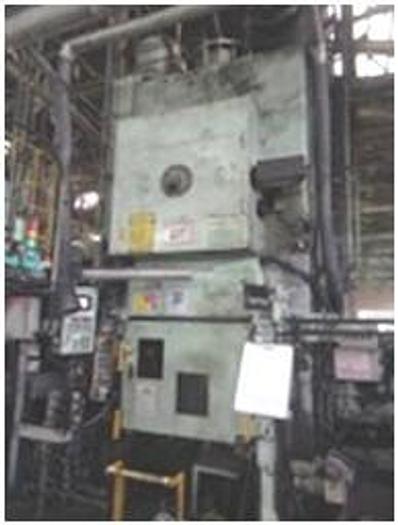

Hot Forging Line LKM1600

Sold

Specifications

ManufacturerKurimoto/Smeral
ModelLKM1600
ConditionUsed
Stock NumberMA0508
Item conditionReconditioned
Capacity tons1600

Description

Make : Kurimoto/Smeral

Model : LKM-1600

Capacity : 1600 tons,

Stroke : 280 mm,

Shut Height : 760 mm,

Ram Adjust : 14 mm,

SPM continuous : 85,

SPM single : 22,

Table : 1243 x 1360 mm,

Slide : 920 x 1040 mm,

Upper Ejector Capacity : 3 tons,

Upper Ejector Stroke : 20 mm,

Bottom Ejector Capacity : 20 tons,

Bottom Ejector Stroke : 50 mm,

Main Motor : 75 Kw.


Machine Type : High Frequency Billet Heater

Make : Fuji Denki

Model : IH-STB

Frequency : 3 Khz,

Capacity : 200 Kw,

Temperature : 1250C

Max Bar Weight : 410 kg,

Max Bar Dia : 65 mm,

Max Bar Length : 155 mm,

Min Bar Dia : 42 mm,

Min Bar Length : 80 mm,


Machine Type : Mechanical Press

Make : Shinohara

Model : SG-200A

Capacity : 200 tons,

Stroke : 180 mm,

SPM : 40,

Shut Height : 515 mm,

Adjust : 100 mm,

Bolster : 1000 x 1000 mm,

Slide : 990 x 990 mm.
