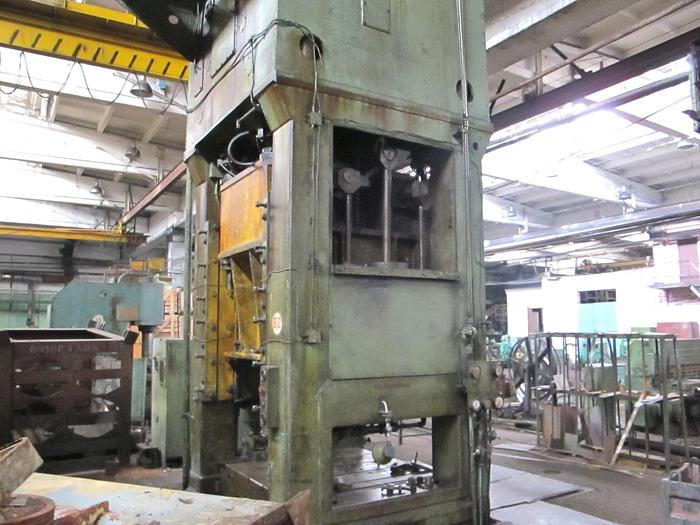

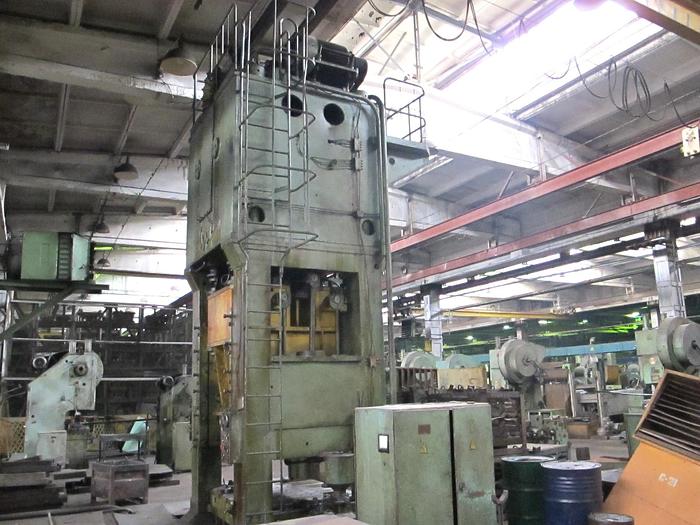

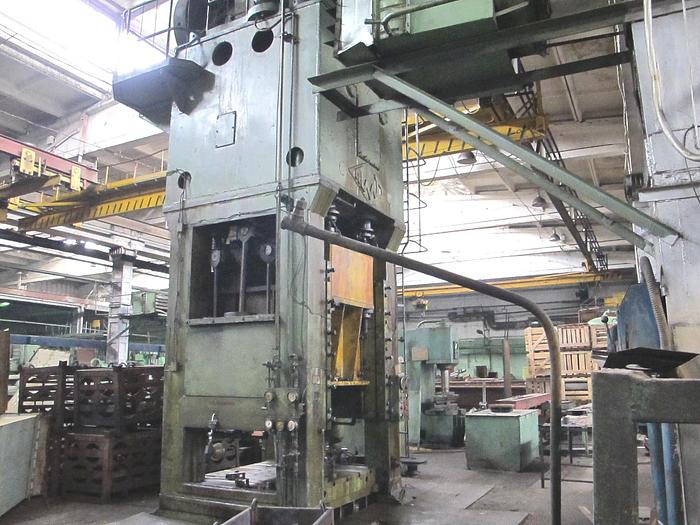

Press Sheet Stamping Mechanical Double Action K5535

Capacity : 500 tons,

Capacity of external ram : 200 tons

Capacity of internal ram : 315 tons,

Ram stroke for internal ram : 670 mm,

Ram stroke for external ram : 420 mm,

Stroke per minute : 10-16 SPM ,

Shut height for internal drawing ram : 950 mm,

Shut height for external holding down ram : 850 mm,

Bolster plate to ram adjustment stroke : 200 mm,

Bed dimensions : 1250 x 1250 mm,

Drawing ram dimensions : 800 x 800 mm,

Holding down ram dimensions : 1250 x 1250 mm,

Bolster plate thickness : 180 mm,

Main drive motor power : 75 kW,

Overall dimensions : 3470 x 3720 x 6580 mm,

Mass : 58.1 tons.
