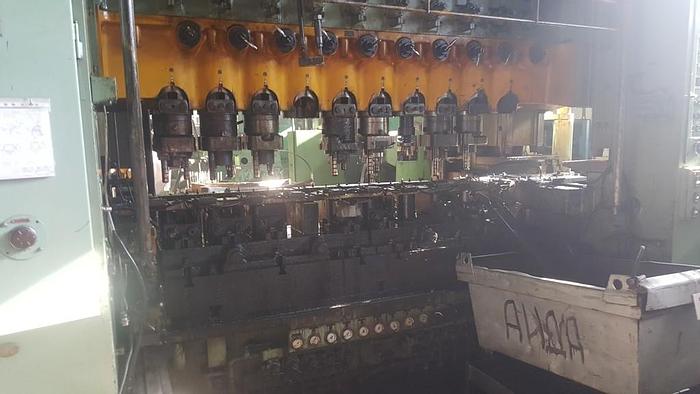

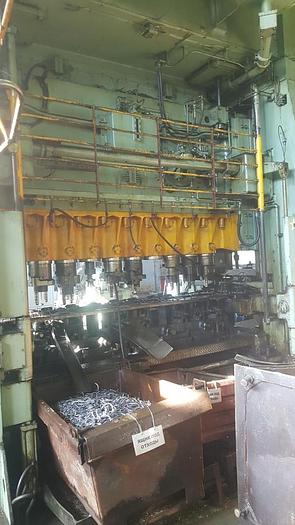

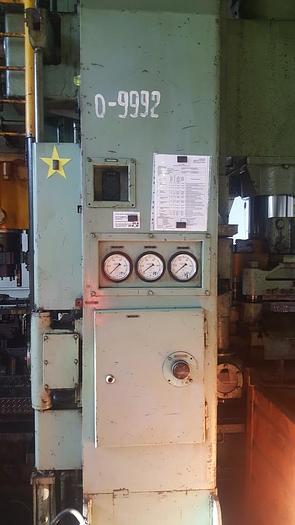

Press Transfer Mechanical FT2-25
Specifications
| Manufacturer | Aida |
| Model | FT2-25 |
| Year | 1976 |
| Condition | Used |
| Stock Number | MA0484 |
| Item condition | Very good condition |
| Capacity tons | 250 |
Description
Capacity : 250 tons,
Each stage capacity : 50 tons
Capacity of blanking stages : 50 tons,
Number of stages (incl. blanking stage) : 13,
Distance between stages : 250 mm,
Stroke length : 250 mm,
Blanking slide stroke : 60 mm,
Max drawing depth : 85 mm,
Max blank dia : 200 mm,
Adjustment of tool holder : 50 mm,
Number of strokes : 20-40 spm,
Die height (Stroke down adjust up between carrier plate and tool holder) : 650 mm,
Thickness of carrier plate : 230 mm,
Carrier plate hole dia : 200 mm,
Main electric motor : 55 kW,
Knockout capacity : 1 ton (mechanical),
Feed stroke length : 250 mm,
Feed direction : left to right,
Lower die height : 400 mm (over carriage plate),
Clamp stroke length : 120 mm (one side),
Inside width of feed bars : 300 mm (at clamp),
Die cushion capacity : 4.2 ton (2nd stage - 3th stage),
Die cushion capacity : 2.8 ton (4th stage - 13th stage),
Stroke length (die cushion) : 85 mm,
Power source : 380 V/ 50Hz,
Dimension : 7500 x 3270 x 6350 mm,
Weight : 85 tons,
Bolster : 2500 x 700 mm.
