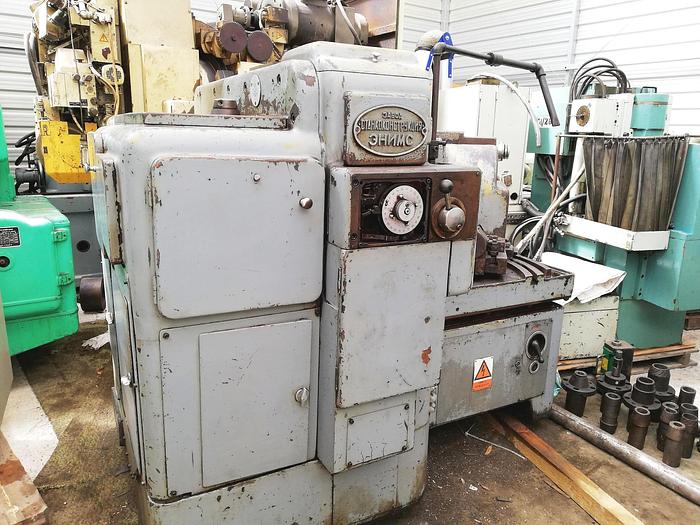

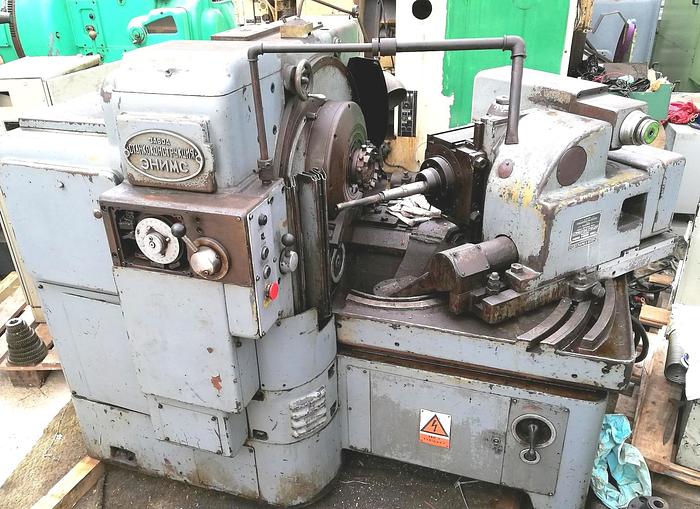

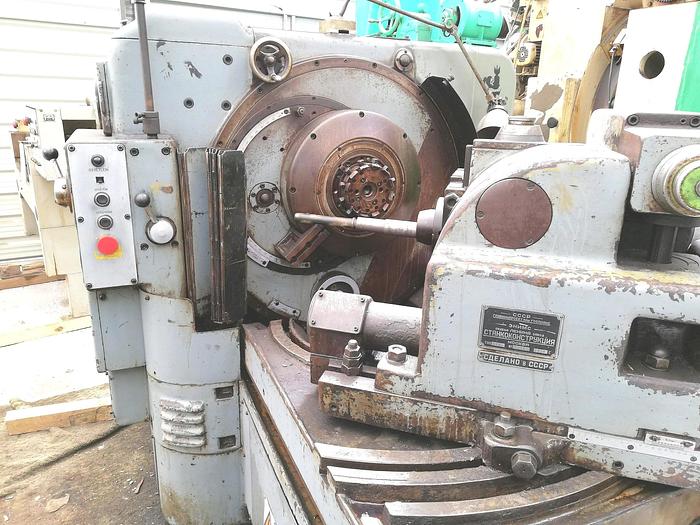

Gear Generator Spiral Bevel & Hypoid 252

Sold

Specifications

ManufacturerAbe Seiki,Japan
Model252
Year1965
ConditionUsed
Stock NumberMA0482
Item conditionGood Condition

Description

Max. gear wheel diameter : 500 mm,

Min. gear wheel diameter : mm,

Module : 10 mm,

Max. gear wheel tooth height : 20 mm,

Inclination angle of tooth : any,

Min. length of initial cone : 0 mm,

Max. length of initial cone :

- 0 degrees 180,

- 30 degrees 260,

Inclination of inner cone : degrees 4...90

Max. width of gear crown : 65 mm,

Spiral inclination range : degrees 0...50

Number of wheel teeth : 5...100

Distance between spindle and table center : 60...360 mm,

Max. spindle movement down from the central position : 65 mm

Max. spindle movement up from the central position : 75 mm,

Size of conical opening in spindle :

- outer diameter 100,

- cone 1:20,

- cone length 150,

Spindle opening diameter : 80 mm,

Diameter of gear - cutting heads, mm 160, 200, 250, 315

Diameter of gear - cutting heads, In 6, 7, 5, 9, 12

Table movement from central position upwards and downwards : 25 mm,

Main motor power, kW 5,5

Machine dimensions : 2200 x 1600 x 1600 mm,

Machine weight : 7500 kg.

Change gears.

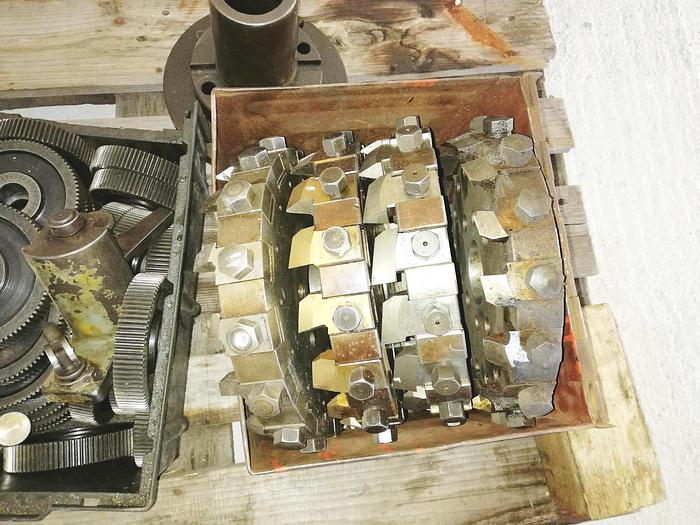

Cuter tools – 5 pcs.
