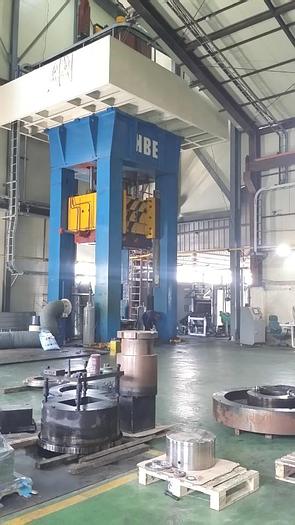

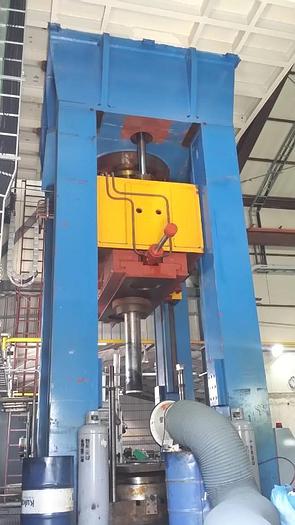

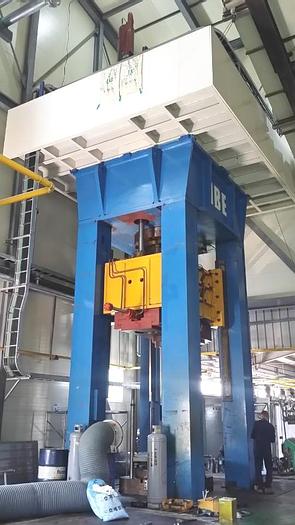

Press Forging Open Die Hydraulic HBE Korean

Sold

Specifications

ManufacturerAbe Seiki,Japan
Year2016
ConditionUsed
Stock NumberMA0465
Item conditionGood working condition
Capacity tons3000

Description

Upsetting/ Piercing/Shell forging Extrusion Press :

Nominal forging force (static working pressure of 320 bar) : 30 MN (3000 tons),

Maximum press stroke : 1900 mm,

Press daylight : 3680 mm

Distance between column inside (clear width) : 1800 mm × 2400 mm,

Number of pull back cylinders : 2,

Bolster Dimension (Lower, Upper) : 1500 mm × 1500 mm,

Side Shuttle Position : 1000 mm × 1000 mm, 3 position,

Press speeds :

- Forging speed : 30 mm/sec pump only,

- Advance speed : 250 mm/sec,

- Return speed : 250 mm/sec,

Press forces :

- Forging at 320 bar : 30 MN (3000 tons),

- Return at 250 bar : 1.7 MN (170 tons),

- Slide shuttle at 210 bar : 0.1 MN (10 tons),

- Knock out at 210 bar : 1.2 MN(120 tons),

Hydraulic pumps : 4 sets × Axial piston pump, Rexroth A7V500,

Electric motors : 2 sets × 250 kw, 440 volt, 1200 rpm,

Overall dimension of press

- Total Height : Approx. 15,469 mm,

- Press above floor level : Approx. 11,380 mm,

- Depth : Approx. 4,089 mm,

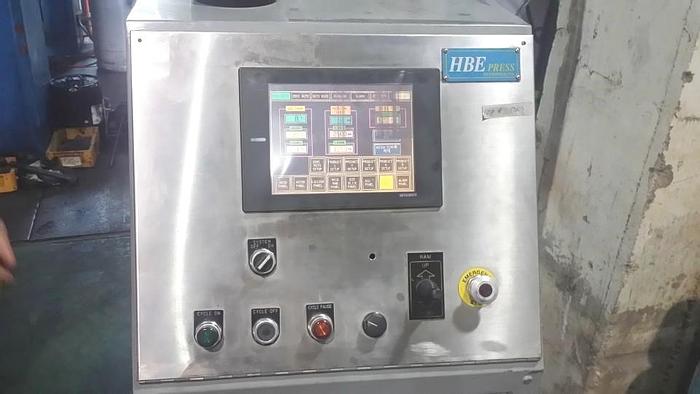

PLC Control : AB

Cycle Mode : Manual, Semi Auto, Auto.
