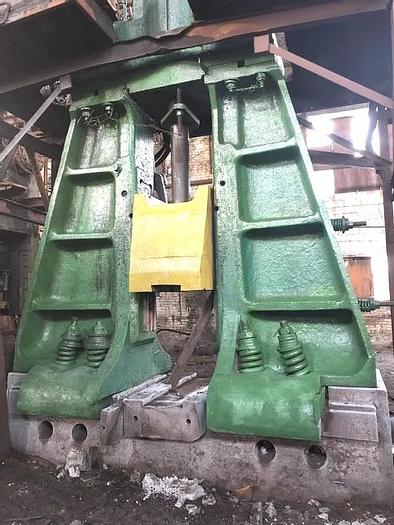

Hammer Forging Pneumatic 17KP
Specifications
| Manufacturer | Abe Seiki,Japan |
| Model | 17KP |
| Condition | Used |
| Stock Number | MA0460 |
| Item condition | Complete,very good condition |
| Capacity tons | 5 |
Description
Capacity : 5 tons,
Nominal weight of falling parts : 5000 Kg,
Actual mass of dropping parts without the Upper tool : 5080 kg,
Kinetic energy of the falling parts : 12500 kg min.,
Number of strikes per min: 50
Hammer stroke (max.) : 1300 mm,
Die block height (min.) : 400 mm,
Clear distance between guides : 700 mm,
Length of the hammer block (at direction, Perpendicular to hammer front) : 950 mm,
Length of the die holder (at direction, Perpendicular to hammer front) : 1180 mm,
Steam pressure before an admission to The cylinder : 7.. 9 atm,
Nominal weight of the upper tool : 500 kg,
Max weight of the upper tool : 1500 kg,
Max admitted temperature of steam : degr. C 200,
Overall dimensions of the hammer :
Length : 3700 mm,
Width : 2000 mm,
Height : 8770 mm,
Weight : 140 tons,
Anvil weight : 100 tons.
retrofit in 2008
