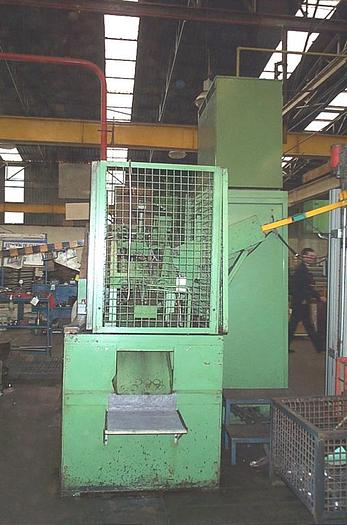

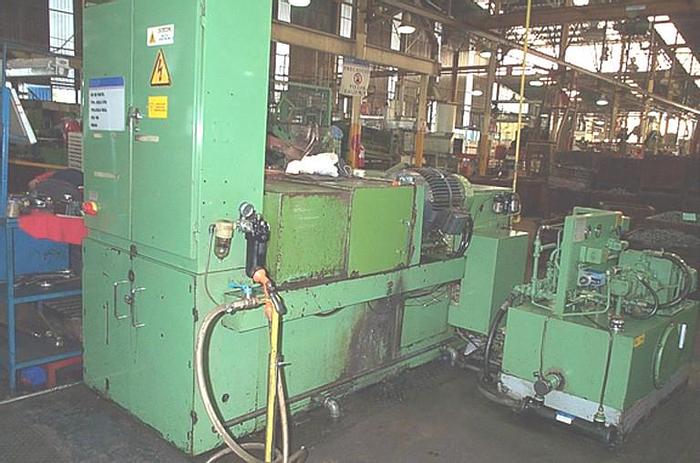

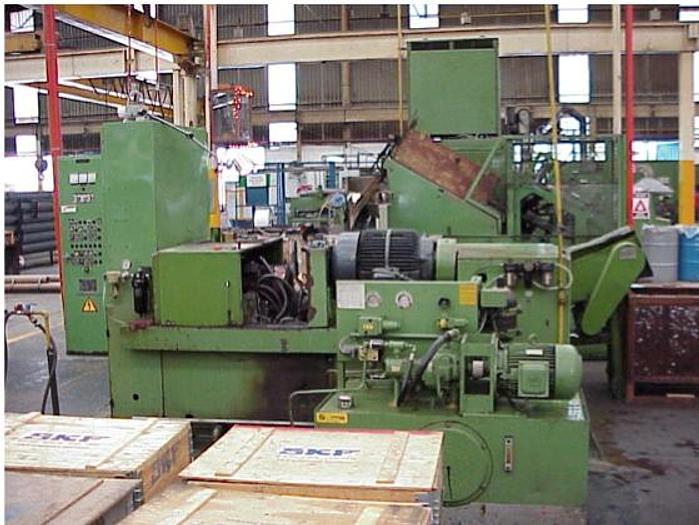

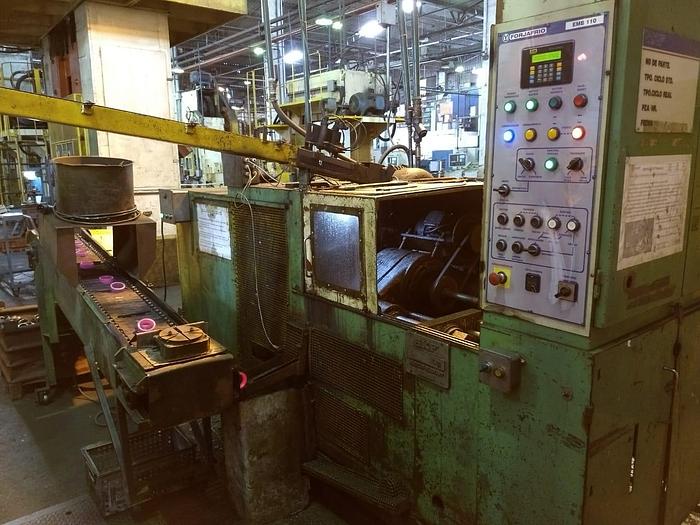

Hot Ring Expander EMB110B

It has a Ring Expansion capacity range of 65 to 110 mm which is well suited to the Hot Part Former machine and it comes with an AEG Induction Heating System.

Range of work:

Minimum diameter : 65 mm,

Maximum diameter : 110 mm,

Maximum axial ring width : 45 mm,

Motor (Die Drive):

Output : 30.0 kw,

Frequency : 60.0 hz,

Speed : 1,400.0 rpm,

Motor (Mandrel Drive):

Output : 2.2 kw,

Frequency : 60.0 hz,

Speed : 1,410.0 rpm,

Motor (Central Oil Lubrication):

Output : 0.25 kw,

Frequency : 60.0 hz

Speed : 1,000.0 rpm,

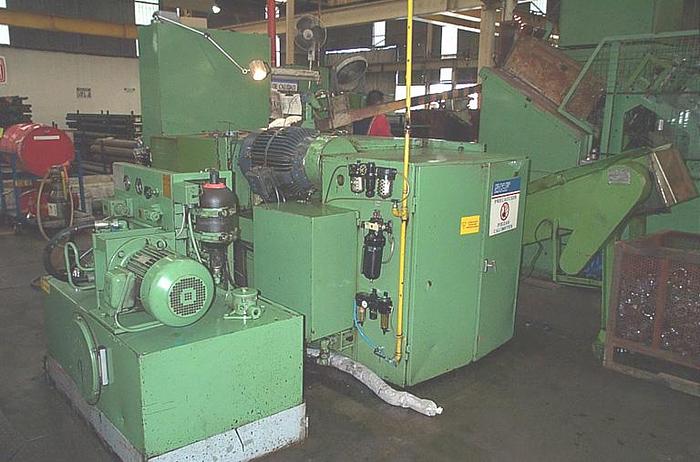

Motor (Hydr. System):

Output : 7.5 kw,

Frequency : 60.0 hz,

Speed : 1,500.0 rpm,

Pressure : 60.0 kp/cm2,

Maximum Pressure : 80.0 kp/cm2,

Oil tank cap. : 360.0 lt

Pneumatic System:

Pressure : 6.0 kp/cm2,

Cooling Water:

Pressure : 5.0 kp/cm2.

Includes:

• Conveyor Feeder

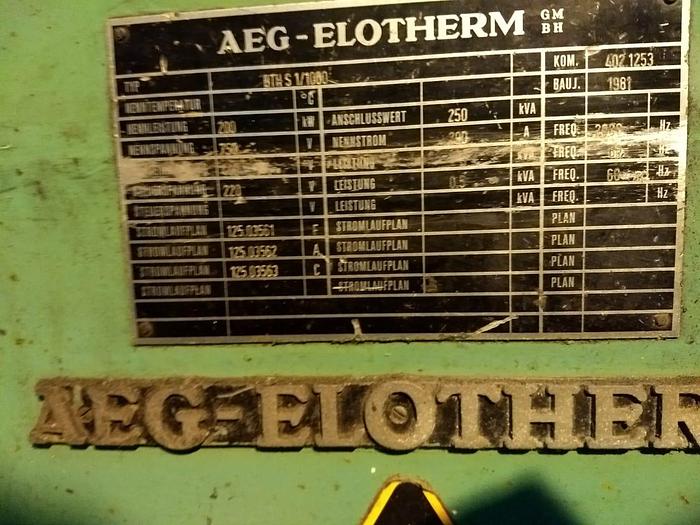

• AEG Electrotherm Induction Heating System • 7,000 hz,

• 440v/3/60 electrics

Technical manuals available
