Gear Lot 280CX
Specifications
Manufacturer | Abe Seiki,Japan |
Model | 280CX |
Year | 2016 |
Condition | Used |
Stock Number | MA0443 |
Item condition | Good Condition |
Capacity tons | 0 |
Description
1) CNC BEVEL GEAR CUTTER WITH CHAMFER/DEBURRING LOADER :
Specifications : (Travel / Speed ) :
X - Horizontal, Work Slide : 25-334 mm / 13m/min,
Y - Vertical Travel : +/-175mm / 13m/min,
Z - Cutter Slide Travel : 125-600 mm / 13m/min,
B - Root Angle : -5 Deg./+90 Deg. / 50 Deg/Sec,
Capacity : (Face Milling / Face Hobbing)
Extreme Ratio : 200:1 / 200:1,
Full Depth, Maximum : 20 mm / 20 mm,
Face Width, Maximum : 58 mm / 58 mm,
Range of Tooth Numbers : 1-200 Inclusive / 1-200 Inclusive,
Maximum Gear Pitch Diameter : 280 mm / 280 mm,
Maximum Cutter Size : 9" / 105 mm radius,
Normal Module Range : 2-13 module / 2-13 module,
Motor Drives : Speed / Continuous Torque Power,
A-Work Spindle (Digital Direct Drive) : 1200 rpm / 271 Nm,
C-Cutter Spindle (Digital Direct Drive) : 1200 rpm / 542 Nm,
Electrical Equipment :
Coolant/Hydraulic : AC Induction / 2.2kW,
Chip Elevator : AC Induction / .4kW.
Equipped with :
Fanuc 30i Control,
Cutter Clamping,
Cutter Handling Bail For PENTAC,
Auxiliary Chamfering and Loader,
Part Probing : Electronic Contacting Gauge,
Chip Removal System For Dry Cutting,
Emergency Withdraw,
Electrics and Hydraulics to 480V/60Hz,

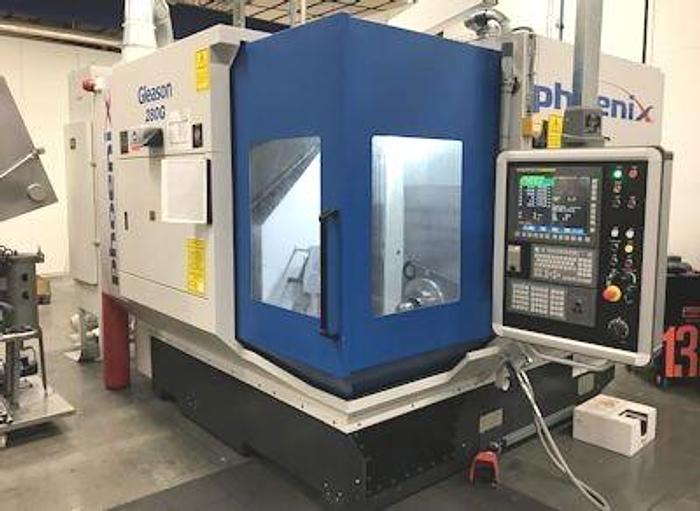

2) 2016 GLEASON PHOENIX 280G CNC BEVEL GEAR GRINDER :
Specification :
X-Horizontal (work slide): 25-334mm, 1-13.1"
Y-Vertical Travel: -/+ 175mm, -/+ 7"
Z-Wheel Slide Travel: 125-600mm, 5-23"
B-Root Angle: -5 to +90deg
WORKPIECE CAPACITY:
Max. Full Depth: 20mm, .775"
Max. Face Width: 58mm, 2.3"
Max. Gear Pitch Diameter: 280mm, 11"
Min/Max. Wheel Size: 51/230mm, 2.0/9"
Max. Module: 10mm, 2.54 DP
Min. Number of Teeth: 1
ELECTRICAL EQUIPMENT:
X-Horizontal (work slide): 2,000 rpm
Y-Vertical Travel: 2,000 rpm
Z-Wheel Slide Travel: 2,000 rpm
B-Root Angle: 2,000 rpm
A-Work Spindle: 900 rpm
C-Wheel Spindle: 8,000 rpm
D-Dresser Spindle: 10,000 rpm
W-Eccentric Spindle: 2,800 rpm
Equipped with :
Fanuc 30i CNC Control
Grinding Spindle W/Eccentric Motion
Machine Arranged W/Grinding From Solid
Machine Arranged W/Arbor Run-Out Compensation
Wheel Mounting Equipment
Emergency Withdraw
Machine Axis Gauging
Roughing Dresser Roller
Finishing Dresser Roller
Coolant Filter
Cleanable Belt 480V/60Hz
Electrics and Hydraulics to 480V/60Hz

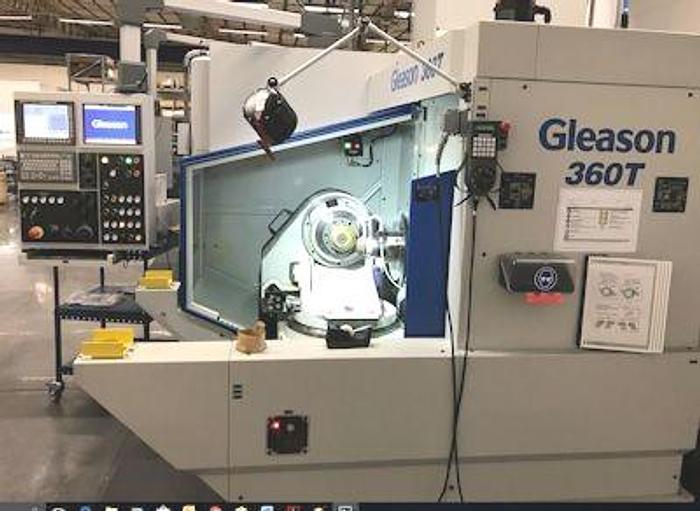

3) 2016 GLEASON 360AT UNIVERSAL GEAR TESTER :
Equipped with :
Fanuc Control
Machine Configured For Angular Bevel & Cylindrical
Pivot Clamping For Swinging Gear Head Position
Gear Spindle Motor Torque Extended Capacity
Side Outboard Engagement By Tailstock Spindle
Gear Spindle Drivetrain Configuration
Nick & Burr Detection System - Enhanced Double Flank Method
Electrics 480V/60Hz
SPECIFICATIONS:
Maximum Workpiece Diameter: 360 mm
Shaft Angle: 65 - 185 Degrees
Offset Range: +/- 152 mm
Equipped with :
Fanuc Control
Machine Configured For Angular Bevel & Cylindrical
Pivot Clamping For Swinging Gear Head Position
Gear Spindle Motor Torque Extended Capacity
Side Outboard Engagement By Tailstock Spindle
Gear Spindle Drivetrain Configuration
Nick & Burr Detection System - Enhanced Double Flank Method
Electrics 480V/60Hz

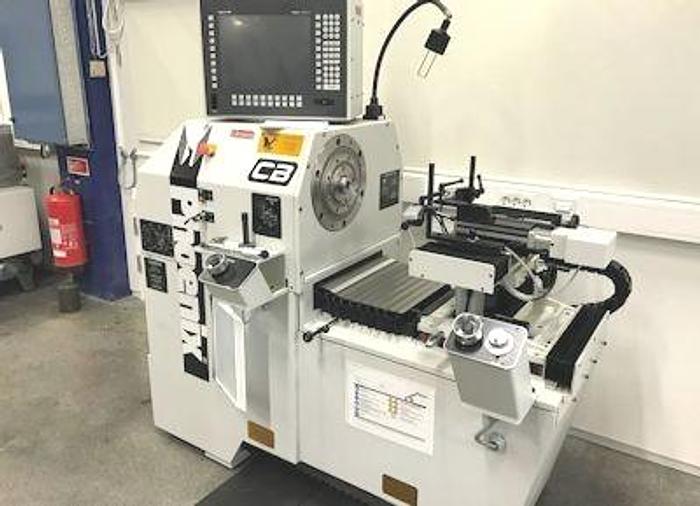

4) 2016 GLEASON PHOENIX CB CUTTER BUILD MACHINE
CAPABILITY:
Face Mill/Face Hob Cutter Heads
PENTAC
TRIAC
CYCLOCUT
RSR
Equipped with :
Nose Adapters
Summary Storage 200 Cutters
Floppy Drive
USB Port
Work Light
