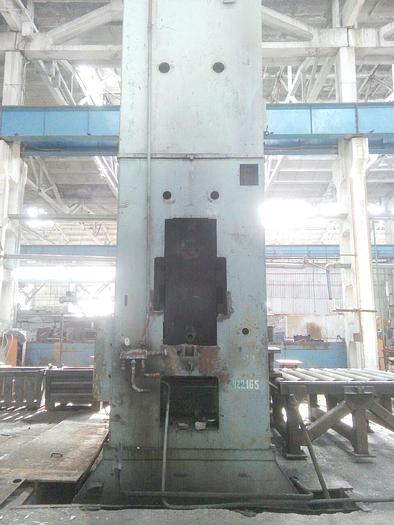

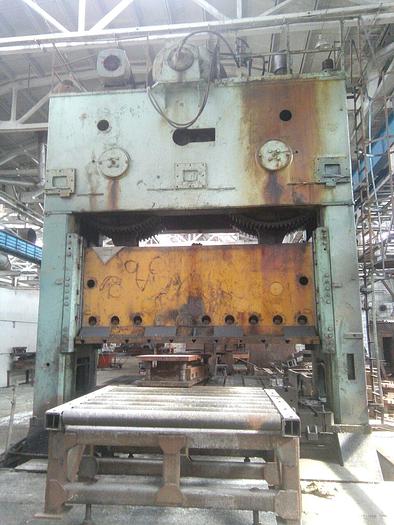

Press Sheet Stamping Mechanical PKZZ800

Capacity : 800 tons,

Max ram force at a distance before the bottom dead center : 12.5 mm,

Ram force at a distance before the bottom dead center 200 mm,

Max . work at 10 strokes per min . : 30 kJ,

Max . Work at 1-4 strokes per min . : 50 kJ,

Ram stroke : 500 mm,

Adjustability of slide : 500 mm,

Cushion in the table :

- 200 mm,

- Adjustability 200 mm stroke,

- Protipřidržovací force 1600 kN,

- Ejection force of 250 kN,

Number of strokes: 1-10 / min,

Number of strokes 14/min running on empty,

Shut height : 1050 mm,

Table dimensions: 3150 x 1600 mm,

Slide dimensions : 3100 x 1600 mm,

The passage between columns : 3150 mm,

The height from the floor to the top edge of table : 600 mm,

Number of ejector rails in the ram : 5 pcs,

The track bouncers : 50 mm,

Total power bouncers : 245 Kn,

Main motor output : 100 kW,

Press height above floor : 8430 mm,

Weight: 145 tons.
