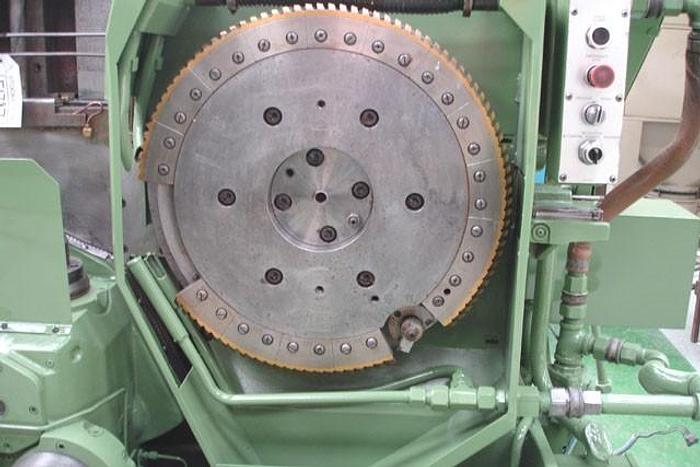

Gear Generator Straight Bevel 726
Specifications
Manufacturer | Gleason, USA |
Model | 726 |
Year | 1978 |
Condition | Used |
Stock Number | MA0432 |
Item condition | Good Condition |
Capacity tons | 0 |
Description
Root angle:
Max : 55° ,
Min : 15°,
Outside diameter Manual : 150 mm,
Max shank length : 152 mm,
Loader stripping height : 102 mm,
Max depth: 525 mm,
Dia cutter : 14.8 mm,
Index range: 8 - 50 WORK
SPINDLE. Diameter of tapered hole at large end 3 : 99.218 mm,
Taper per foot : 15.478 mm,
Depth of taper : 15875 mm,
Counter bore behind taper dp. : 0635 x 77.787 mm,
Diameter of through hole : 22.225 mm,
FEEDS & SPEEDS. Cutter speeds, 21”dia cutter 107 -
163’/min 32.6 - 49.7 m/min Feeds, 21” Dia
cutter 2 - 3.1 sec. /tooth ELECTRICAL EQUIPMENT.
Main drive motor : 10 HP @ 1500 rpm Hydraulic
motor 7.5 HP @ 1500 rpm Chip screw motor
0.25 HP @ 1500 rpm Complete with Manual load & unload Index plate fitted (to be advised) Coolant
Electrics 440, 3, 50. (Dual wired). Approx
Size Machine : 2700 x 2200 x 2200 mm,
Approx Weight Machine : 19,000 lbs 8,680 kg.
