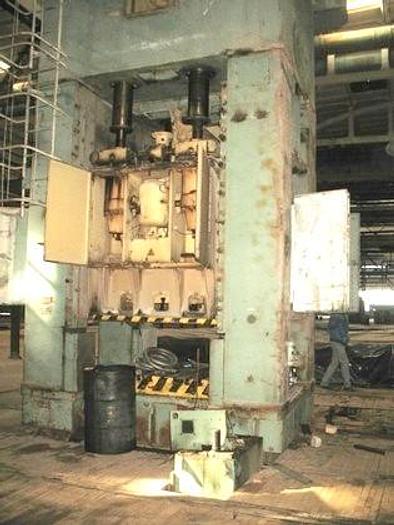

Press Sheet Stamping Mechanical Double Action KA5538

Single-crank double action press

Capacity : 630 tons,

Ram stroke : 800 mm,

Holding down ram stroke : 500 mm,

Strokes per minute : 9-14,

Shut height : 900 mm,

Blank holder shut height : 780 mm,

Shut height adjustment : 250 mm,

Blank holder nominal capacity : 400 tons,

Blank holder dimensions : 1600 x 1600 mm,

Press dimensions : 7270 x 5125 mm,

Ram dimensions : 1000 x 1000 mm,

Bolster plate dimensions : 1600 x 1600 mm,

Height above floor level : 8080 mm,

Main drive electric motor power : 90 kW,

Rated distance of slide above bottom : 16 mm,

Rated distance of blankholder above bottom : 6 mm,

Press weight : 115 tons.
