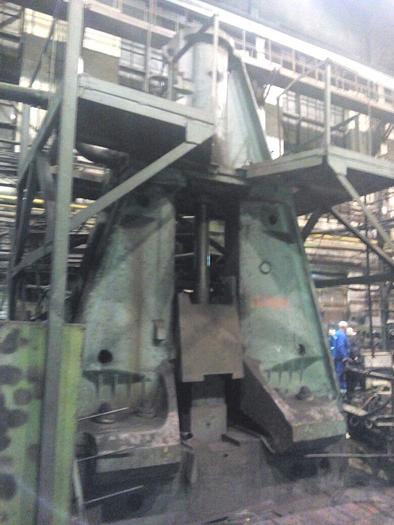

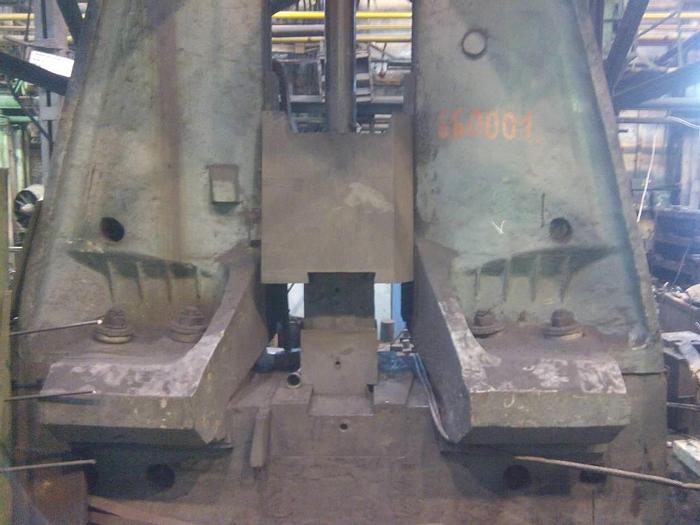

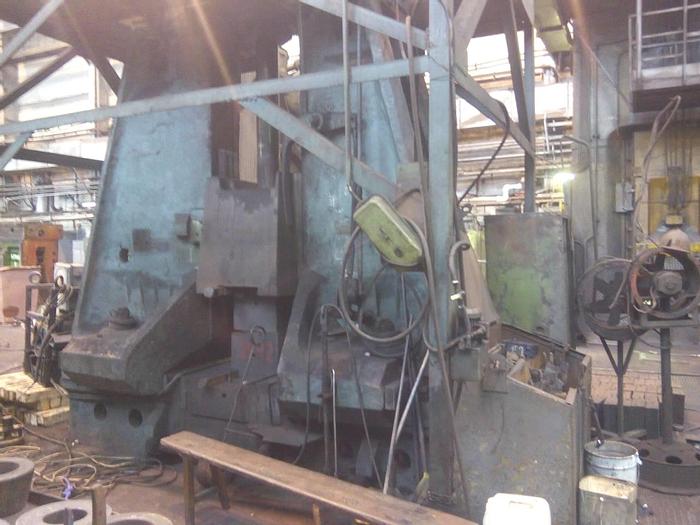

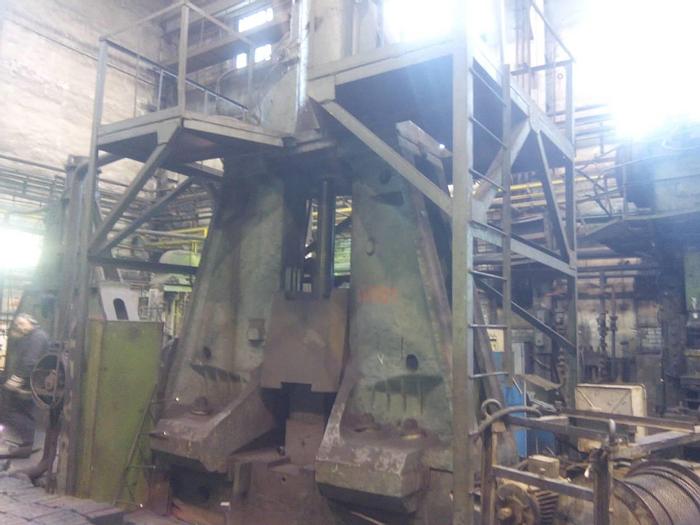

Hammer Forging Pneumatic MB2145

Capacity : 3.15 tons,

Striking energy : 8000 KPM,

Rate of striking of hammer : 50/min,

Working stroke of hammer : 1250 mm,

Bearing distance between guidance : 2700 mm,

Space of working area : 630 mm,

Dimensions from upper anvil block till floor : 750 mm,

Vapour pressure before inlet 7-9 kp/cm2,

Air pressure before inlet : 6-8 kp/cm2,

Outlet pressure of vapour and air : 0,2-0,5 kp/cm2,

Dia of piston rod : 175 mm,

Dia of cylinder : 460 mm,

Dimensions of hammer : 5100 x 2490 x 5895 mm,

Anvil weight : 47 tons,

Weight of hammer : 75 tons.
