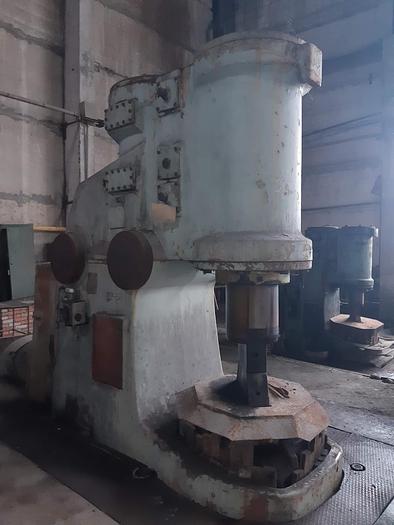

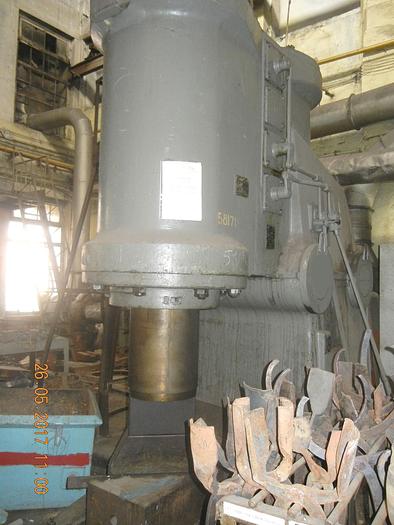

Hammer Drop Forging Open Die M4140

Capacity : 1 ton,

Blow energy of impact : 30 kJ,

Number of strokes (of impact_ per minute) : 103,

Size of slide : 360 x 140 mm,

Mass of incident part of hammer : 1050 kg,

Clear space height of forge : 750 mm,

Distance from an axes of basis up to bed : 800 mm,

Power of main drive motor : 75 kW,

Height above floor : 3300 mm,

Overall dimensions : 1780 x 4400 x 3570 mm,

Weight : 36 tons.
