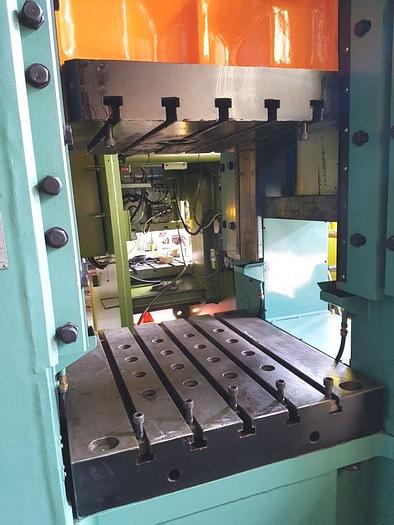

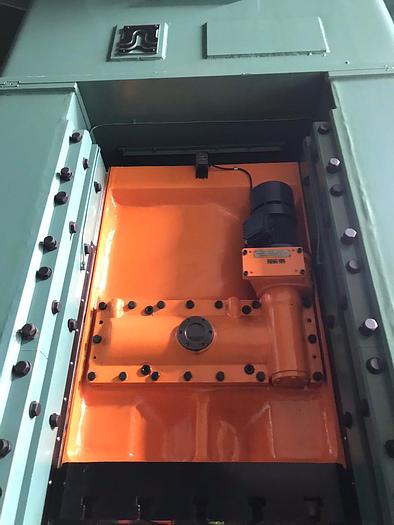

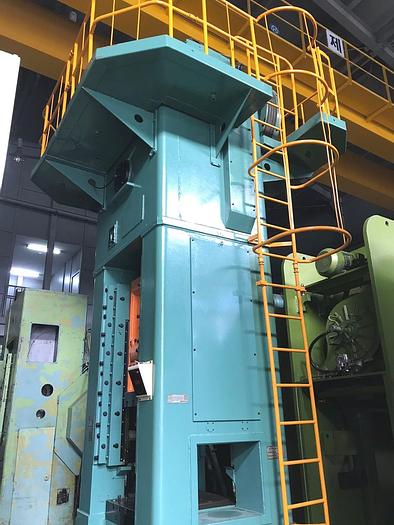

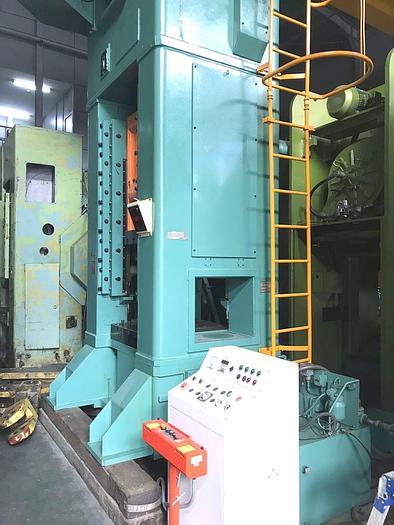

Press Trimming K9536

Capacity : 400 tons,

Ram stroke : 400 mm,

No. of strokes : 25 per min.,

Shut height : 630 mm,

Bolster plate to ram adjustment stroke : 160 mm,

Bed dimensions : 1000 x 1000 mm,

Bed opening dimensions : 630 x 630 mm,

Ram dimensions : 800 x 800 mm,

Bolster plate thickness : 160 mm,

Main drive motor power : 43.3 kW,

Overall dimensions floor space : 3410 x 3140 mm,

Height above floor level : 5940 mm,

Mass approx. : 32.7 tons,

Main motor : 40 kw,

With die cushion,

Painted, new electric box.

Recondition
