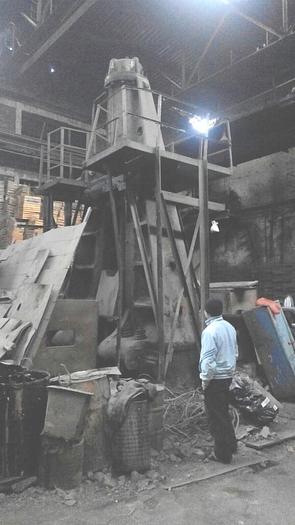

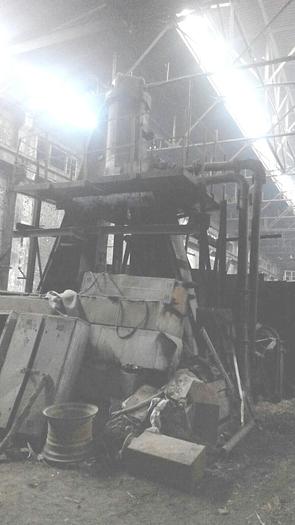

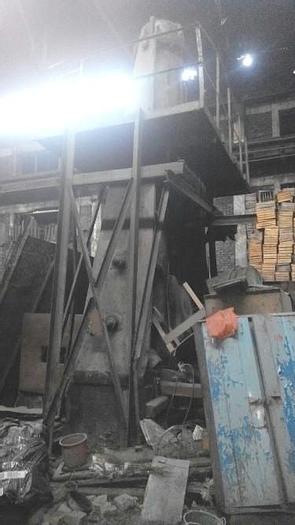

Hammer Forging Pneumatic MA2147

Capacity : 5 tons,

Impact energy : 125 kj,

Ram stroke : 1300 mm,

No. of blows : 50 per min.,

Distance clear between guides : 800 mm,

Ram front to back dimensions : 950 mm,

Die holder front to back dimensions : 1180 mm,

Bottom die impression to floor distance : 700 mm,

Minimum die holder to ram distance : 400 mm,

Steam (air) pressure : 0.7-0.9 MPa,

Overall dimensions : 3700 x 2000 x 6470 mm,

Mass (less anvil block) approx. : 40 tons,

Mass of anvil block approx. 100 tons.
