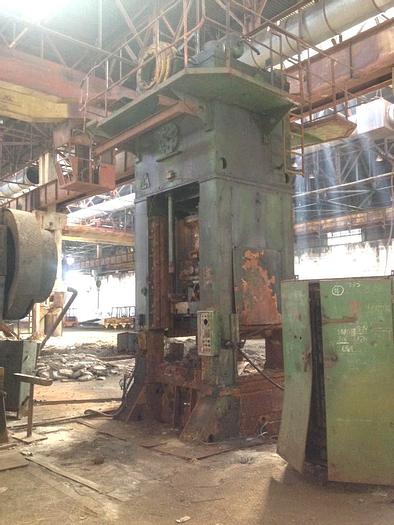

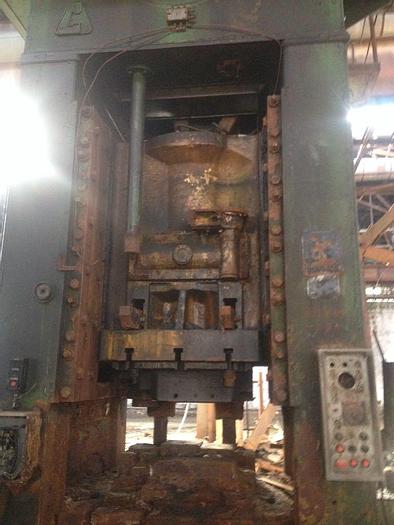

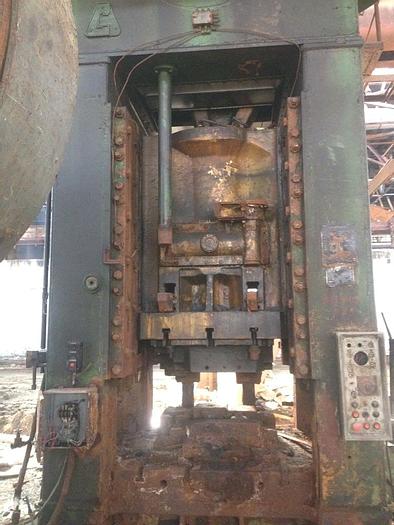

Press Trimming KB9538

Nominal effort : 630 tons,

Course stroke : 400 mm,

Number of strokes in a minute : 25,

Bolster plate-to-ram adjustable stroke : 180 mm,

Max. distance plate-to-ram (in lower position of slider) : 750 mm,

Table size : 1250 x 1250 mm,

Main motor power : 56 kW,

Press overall dimensions :

Length : 3650 mm,

Width : 3680 mm,

Height : 6370 mm,

Press weight : 57.5 tons.
