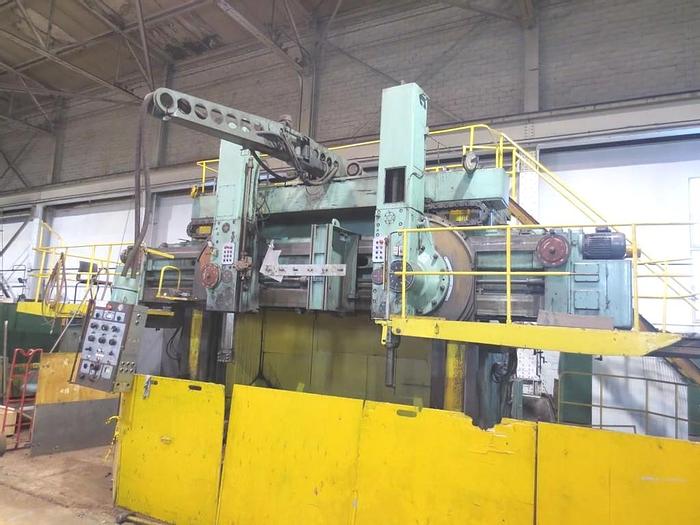

Lathe Vertical Turning 1540

Swing: 4000 mm,

Diameter of a face plate : 4000 mm,

Height of work-piece : 2000 mm,

Max. slider stroke : 1250 mm,

Right slider type : turning,

Left slider type : combinated,

Corner of supports turn: 15 +40,

Weight of the work-piece on a faceplate : 50 tons,

Effort of cutting to a right support : 63 kH,

Effort of cutting to the left support : 50 kH,

The max. total effort of cutting by two supports : 100 kH,

Table speeds : 0.52 - 48.7 rpm,

Feeding : 0,059 - 470 mm/min,

Rapid feeding : 2715 mm/min,

Capacity of the main drive : 63 kw,

Height above a level of a floor : 6000 mm,

Dimensions (length-width-height) : 5900 x 10100 x 7200 mm,

Machine weight : 100 tons.

EQUIPPED WITH:

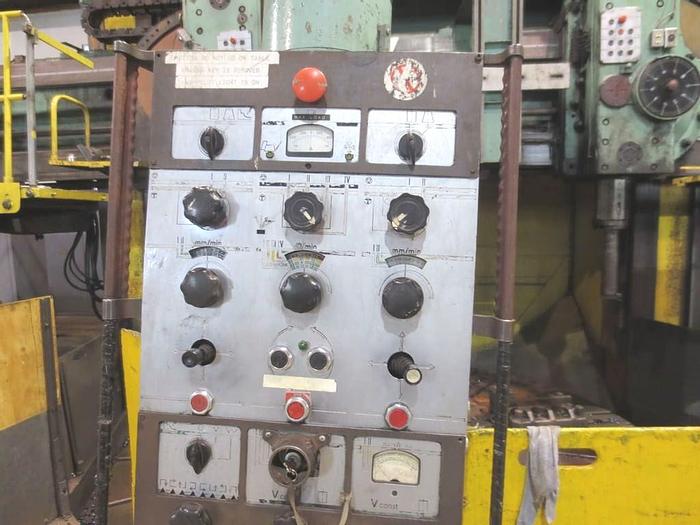

Full Pendant Controls

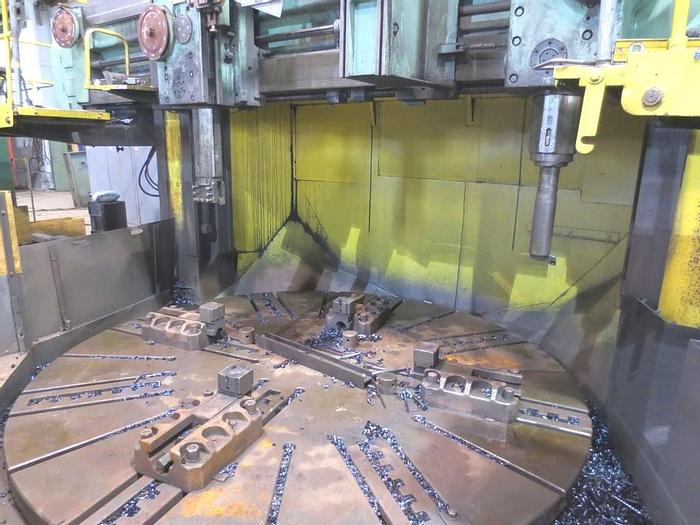

4000 mm Diameter Table w/4-Face Plate Jaws

Taper Turning Attachment

Tracer Attachment

Table Rebuilt in 2009

FEATURES:

2-Swivelling Vertical Rams

Taper Turning Attachment

Tracer Attachment
