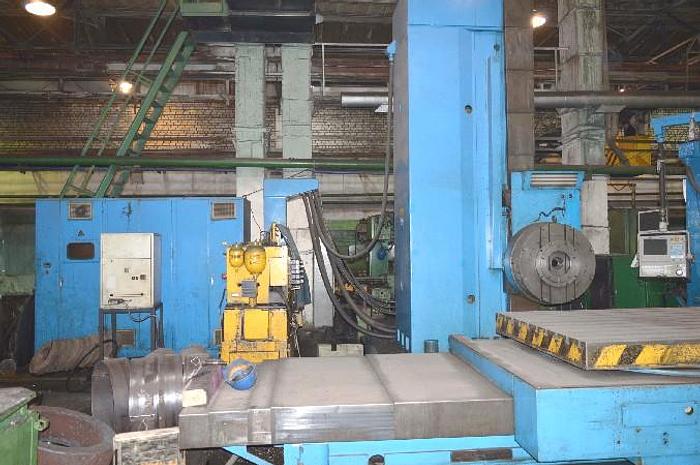

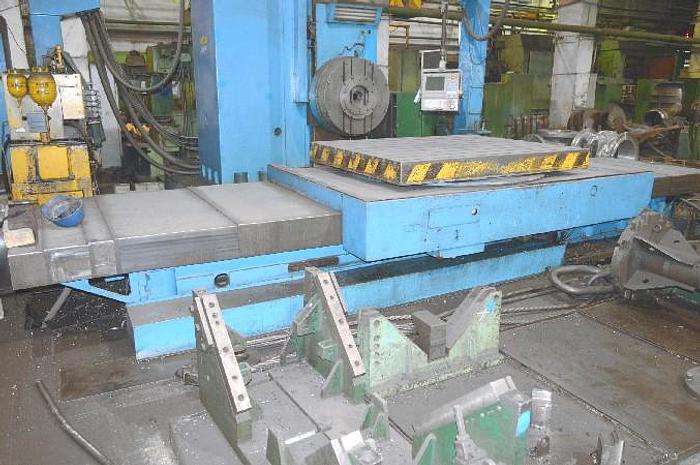

Borer Horizontal Table Type CNC BFK130

Spindle diameter : 130 mm,

Spindle taper : ISO50,

Spindle torque : 5350 Nm,

Spindle speeds : 1120 RPM,

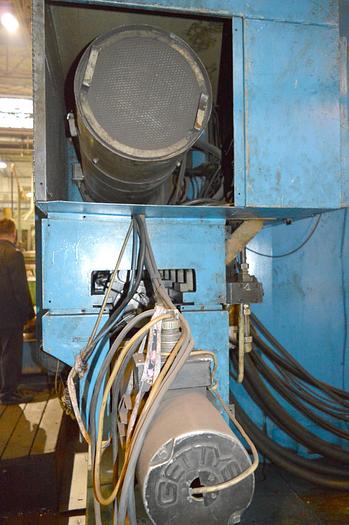

Main motor power : 47 kW (SIEMENS 16F3204)

X axis (table) : 3000 mm,

Y axis (headstock) : 2000 mm

Z axis (column - longitudinally) : 1000 mm,

W axis (spindle movement) : 850 mm,

U axis (support of faceplate) : 280 mm,

Feed-rate X, Y, Z, W / U axis, m/min 10, 10, 10, 10, / 1

Rotary table size : 2000 x 1600 mm,

B axis (table rotation angle) : 360 deg,

Scale HEIDENHAIN

Power capacity : 80 kW,

Machine weight : 26 tons,

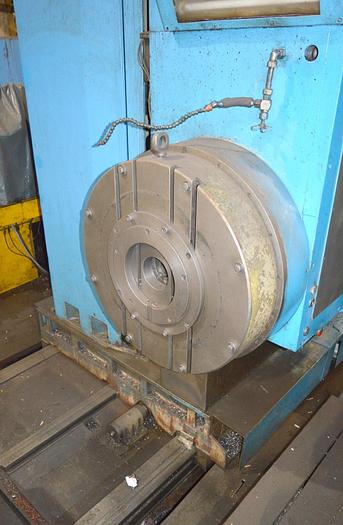

Faceplate : Yes.
