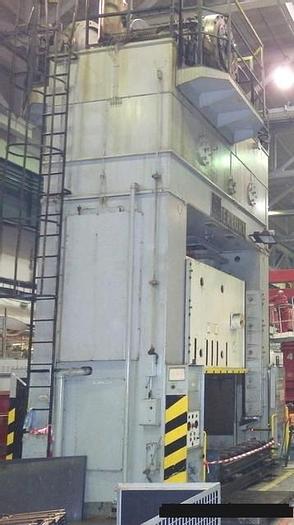

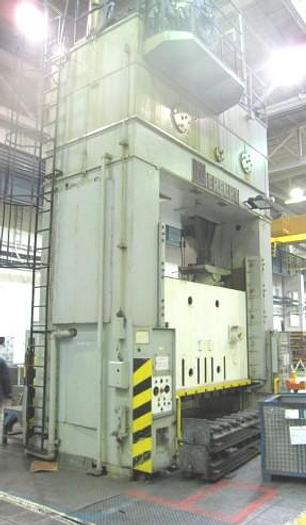

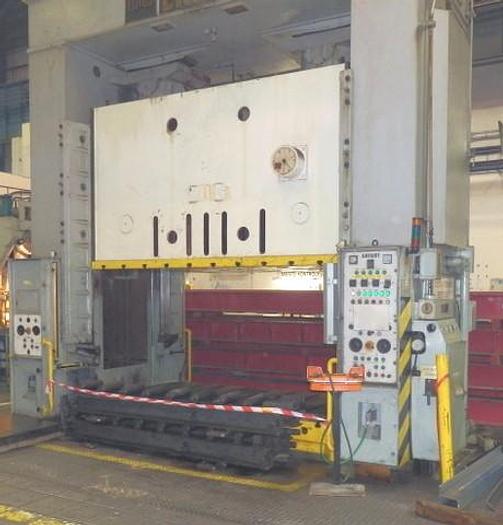

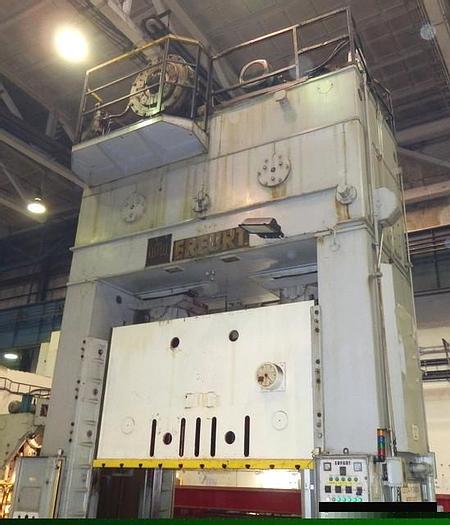

Press Sheet Stamping Mechanical PKZZ800
Specifications
Manufacturer | Abe Seiki,Japan |
Model | PKZZ800 |
Year | 1980 |
Condition | Used |
Stock Number | MA0339 |
Item condition | Disassembled |
Capacity tons | 800 |
Description
Capacity : 800 tons,
Max ram force at a distance before the bottom dead center : 12.5 mm 8000 kN,
Ram force at a distance before the bottom dead center 200 mm 2500 kN,
Max . work at 10 strokes per min . : 30 kJ,
Max . Work at 1-4 strokes per min . : 50 kJ,
Ram stroke : 500 mm,
Adjustability of slide : 500 mm,
Cushion in the table :
- 200 mm,
- Adjustability 200 mm stroke,
- Protipřidržovací force 1600 kN,
- Ejection force of 250 kN,
Number of strokes: 1-10 / min,
Number of strokes 14/min running on empty,
Shut height : 1050 mm,
Table dimensions: 3150 x 1600 mm,
Slide dimensions : 3100 x 1600 mm,
The passage between columns : 3150 mm,
The height from the floor to the top edge of table : 600 mm,
Number of ejector rails in the ram : 5 pcs,
The track bouncers : 50 mm,
Total power bouncers : 245 Kn,
Main motor output : 100 kW,
Press height above floor : 8430 mm,
Weight : 145 tons.
