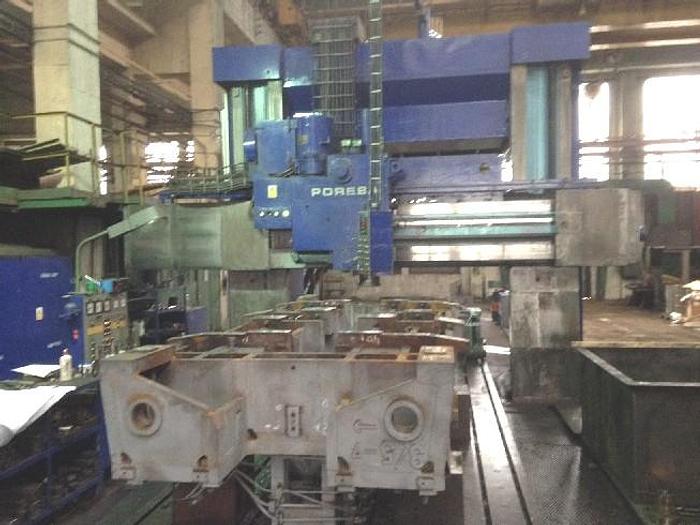

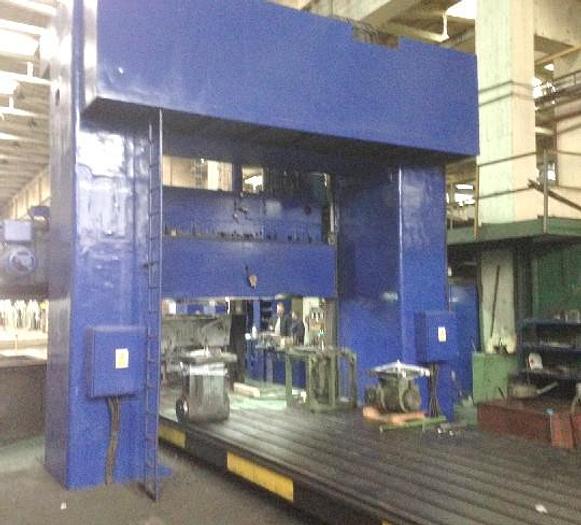

Plano Miller FBA325

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelFBA325
Year1973
ConditionUsed
Stock NumberMA0334
Item conditionGood condition dismantled
Capacity tons0

Description

Width Between Columns : 3250 mm

Clearance Under the Cross-Rail : 3000 mm,

Table Width : 2570 mm,

Milling Length : 14000 mm,

Table Length : 2 x 7000 mm,

Max. Workpiece Weight : 60000 kg (132.200 Lbs),

Quill Diameter : 280 mm,

Quill Travel : 350 mm,

Quill Feeds (Infinitely Variable) : 6-600 mm/min (0,2 – 236 IPM),

Milling Head Feeds (on the Cross-Rail, Infinietly Variable) : 10-1000 mm/min,

Millin Head Rapid Travel (Infinitely Variable) : 3000 mm/min,

Spindle Taper ISO : 50

Spindle Speeds in two ranges : 6-600 rpm,

Main Motor Power : 55 kW/ 75 HP,

Spindle Torque : 6950 Nm,

Table :

Table Milling Feeds (Infinitely Variable) : 30-3000 mm/min,

Table Rapid Travel : 9000 mm/min,

Cross – Rail :

Cross-Rail Feeds (Infinitely Variable) : 5-500 mm/min,

Cross Rapid Travel 1500 mm/min,

Machine weight : 196000 kg,


Execution and equipment of the machine:

- Automatic locking system of the cross-rail,

- Hardened steel bands lining on the guideways of the cross-rail,

- Precise table travel on prismatic flat guideways,

- Hydrostatic system for table locking,

- Table drive obtained by worm and rack system,

- milling head 3 pcs,

- DRO in 3 axis,

- telescopic covers for table and cross rail, missing rear cover of the table.

Technical manuals available.
