Plano Miller CNC 5-Axis 3.0

Sold

Specifications

ManufacturerAbe Seiki,Japan
Model5-Axis 3.0
Year1998
ConditionUsed
Stock NumberMA0328
Item conditionUnder power
Capacity tons0

Description

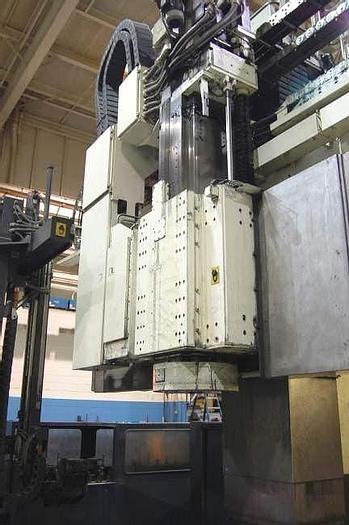

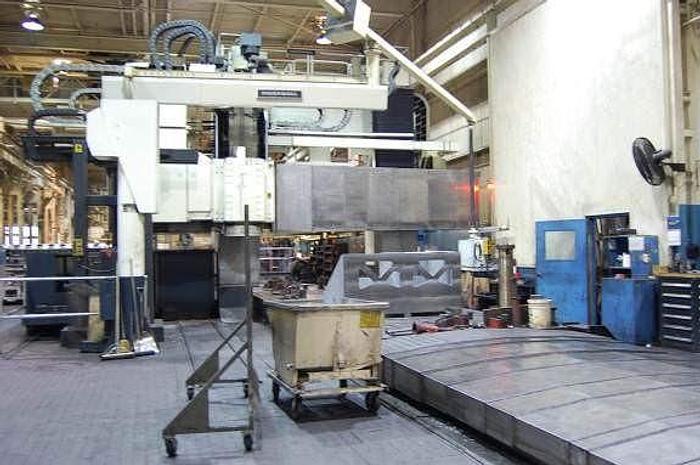

Double Column 5-Axis CNC Planer Mill


TRAVELS:

X-Axis, Table Travel : 11318.75 mm,

Y-Axis, Horizontal Head Travel : 4084.5 mm,

Z-Axis, Ram Stroke : 984.25 mm,

W-Axis, Cross Rail Vertical Travel : 2017.5 mm,

A-Axis, Head Rotation : 360,000 Positions

B-Axis, Head Swivel : 360,000 Positions


SPECIFICATIONS:

Table Size, Joined :2953 x 12275 mm,

Table Size, Each : 2953 x 5650 mm,

Distance Between Joined Tables : 984.25 mm,

Distance Between Columns, w/o Covers : 3198.75 mm,

Distance Between Columns, w/Covers :2952.75 mm,

Ram Cross Section : 590.5 x 590.5 mm,

Distance Table to Ram Face : 3175 mm,

Distance Under Cross Rail : 3275 mm,

Minimum Distance Ram to Table : 1162.5 mm,

Spindle Taper : Cat V-50,

Speed : 2-3000 RPM,

Table Weight Capacity, Joined : 139,480 Lbs,

Table Weight Capacity, Individual : 69,740 Lbs,


EQUIPPED WITH:

Fanuc 150-M 5-Axis CNC Control

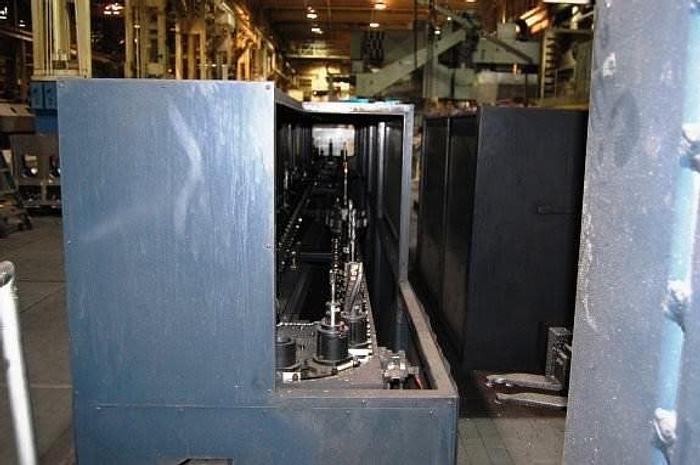

120 Station Automatic Tool Changer (ATC)

Automatic Attachment Changer (AAC)

Thru Spindle Coolant


(3) Right Angle Heads (Assorted Sizes and Lengths)

(3) Straight Milling Heads (Assorted Sizes and Lengths)
