Press Extrusion Hydraulic Lombardo

Sold

Specifications

ManufacturerLombardo
ConditionUsed
Stock NumberMA0314
Item conditionGood condition
Capacity tons1800

Description

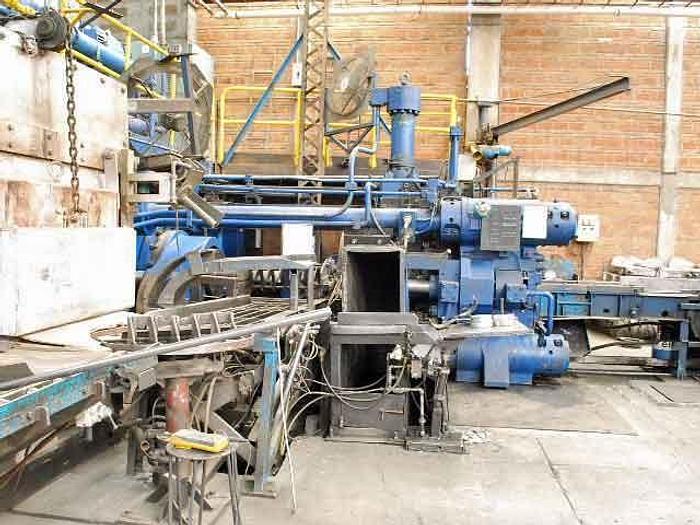

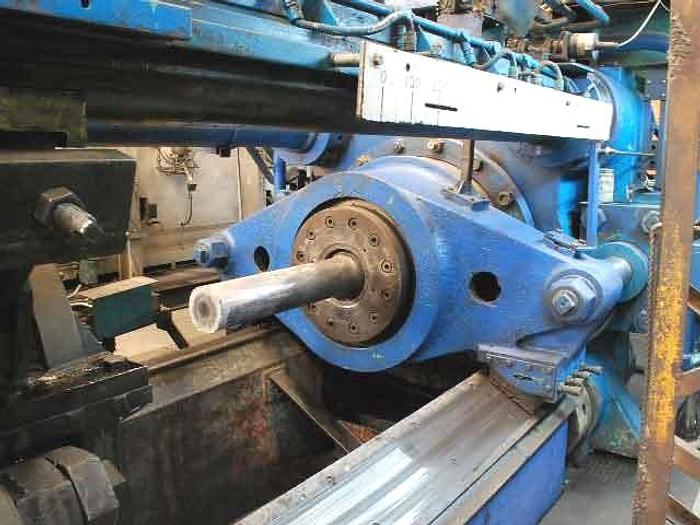

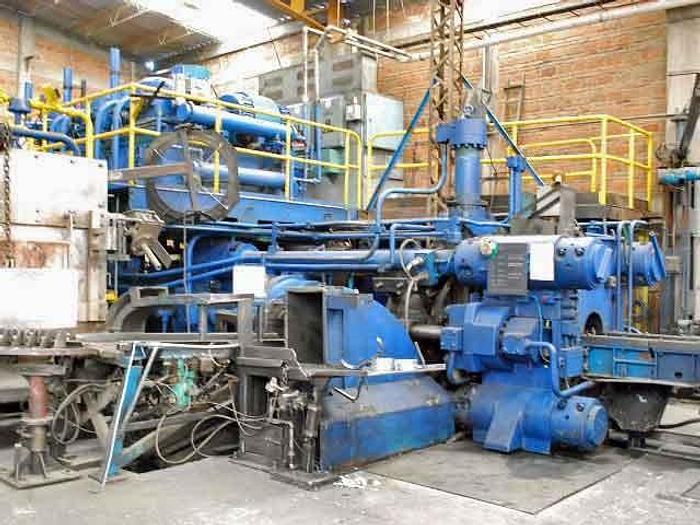

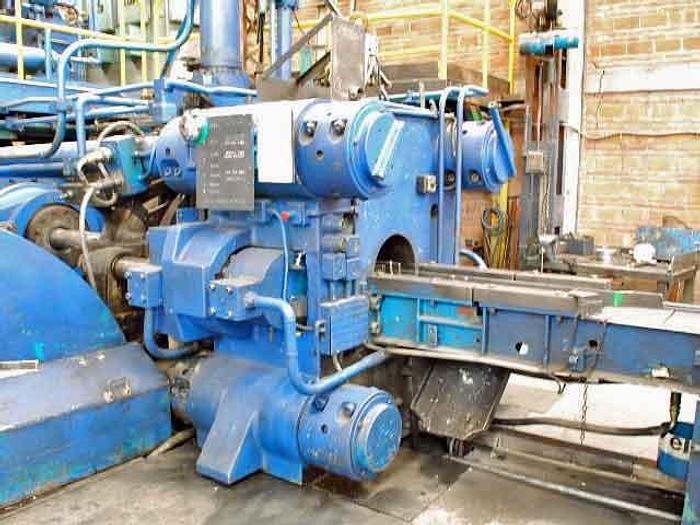

1800 tons Lombard Oil Hydraulic Extrusion Press

1) Extrusion Press

 Maker: Lombard,

 Type: 4 column, Gatelock type Rod Press,

 Year: 1958 and refurbished in 1997 with new,

       PLC, controls and video monitoring

 Rating:

  Capacity :1800 tons,

  Closing : 134 US tons @ 3000 psi,

  Return : 80 US tons @ 3000 psi,

  Container Seal : 80 US tons @ 3000 psi,

  Container Open : 134 US tons @ 3000 psi,

  Butt Shear : 67 US tons @ 3000 psi,

 Extrusion speed : 1.5 to 38 mm/sec,

 Billet Size : Currently configured for 150 mm and

            203 mm billet. Maximum size available is 203 mm,

 Billet Length (maximum): 584 mm,

 Hydraulics: Oilgear

            3 main pumps Variable Delivery Oilgear

            DV 150. 3 x 200 HP main drive motors.

 Electrical Connection: 415 V 3 Phase 50 Hz,

 Container Heating :30 kW

 Die Stack : 305 mm dia x 213 thick

 Electrical Control : Omron PLC with PC graphics screen and press monitor

 Major Tools: 3 x Containers and 3 x stems for 150 mm billets.

            1 x Container and 2 x stems for 203 mm dia billet.


Please note that this press is suitable for extrusion of both aluminum and

brass.


 Runout Equipment

  Comprising:

  Initial Table

  Single Coiler

  Runout Table

  Cross transfer table

  Saw feed conveyor

  Cold product cut to length saw

  Coil conveyor

  Coil final quench tank

  Back end testing device for coil (Nick and Break)

  Coil removal capstan

 Runout Table: Effective length 30 m

              Width 400 mm

              Cast Iron cooling plates

 Cooling Table: Effective length 30 m

               Width of Cooling table 2700 mm

 Saw Charge Table: Length 25 m

                  Width 400 mm

 Cutting saw : Donaldson Saw

             Range 150 mm h x 75 mm w (approx.)

             Motor 10 HP

 Saw Gauge Table: Length 6300 mm,

                 Width 400 mm

                 Cutting length range 1600 mm- 6300 mm

   Coiler: Single unit

          Drum Size 905 mm OD x 618 mm ID

          Depth 250 mm

          Drive 1x_.kW MicroDrive variable

          speed AC motor drive

          Coiler to suit Wire 3.6 mm - 20 mm dia

          Flat to 25.4 mm x 3.2 mm


Complete with coil off-take conveyor, final water quench unit and nick and

break back end test unit


 Electrical Connection: 415V 3 Phase 50 Hz

  Ancillary Press Equipment


 Comprising : Electric Die Oven - ___kW

    1 t electric jib hoist for

    tool loading

    Die grit blasting machine

    Pedestal drill

    Tool assembly tables

    Tool racks


2 ) Billet heater

Make: Maker unknown but utilizes all North

       American burner equipment. All gas

       train equipment fitted during recent

       refurbishment

Year: Manufactured in 1973 and had a major

     refurbishment in 1987.

Type: Natural Gas Fired Reverberator Furnace

Current Operating Rate : 1.64 tons/hr. (150 mm Dia. Billet)

Electrical Specification : 415 Volt 3 Phase 50 Hz.
