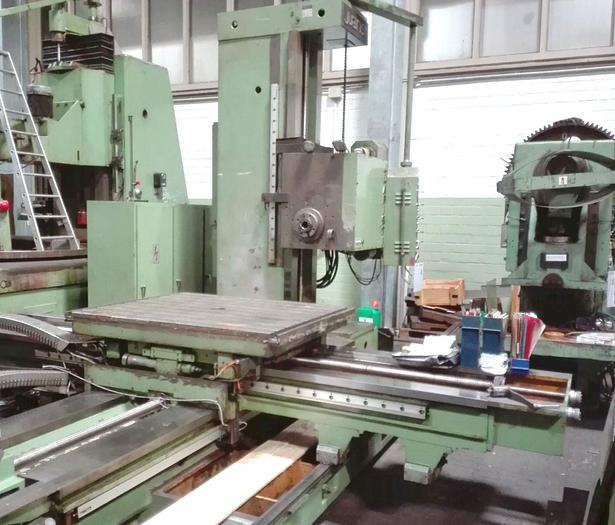

Borer Horizontal Table Type CNC MDR125ACF
Sold
Specifications
Manufacturer | Juaristi |
Model | MDR125ACF |
Year | 1987 |
Condition | Used |
Stock Number | MA0302 |
Item condition | Good working condition |
Capacity tons | 125 |
Description
Spindle diameter : 125 mm,
X-travel : 2500 mm,
Y-travel : 1500 mm,
Control TNC : 155,
Z-travel : 2150 mm,
W-axis (spindle longitudinal) : 800 mm,

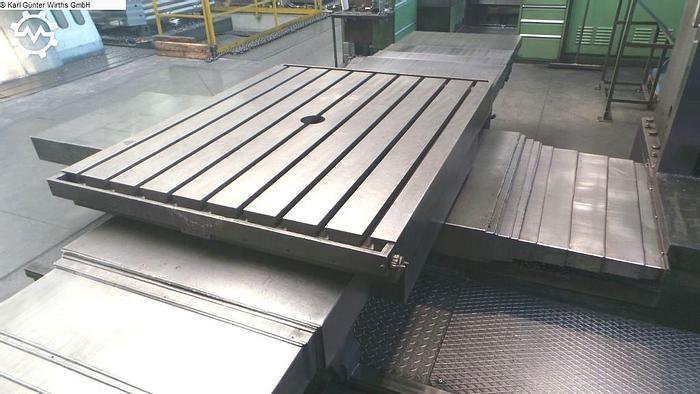

Table-size : 1400 x 1200 mm,
Spindle taper : ISO 50,
Spindle turning speed range 7-224-1000 U/min,

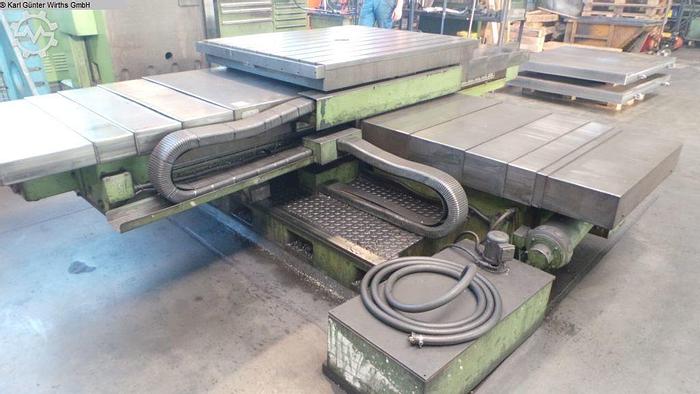

Table rotating : 360 °,
Feeds : 0-2000 mm/min
Rapid traverse : 5 m/min,
Table rotation speed : 2 U/min,
Total power requirement : 18,5 kW,
Weight of the machine ca. : 18 tons,
Dimensions of the machine ca. : 5400 x 2850 x 3000 mm,
Control : CNC,

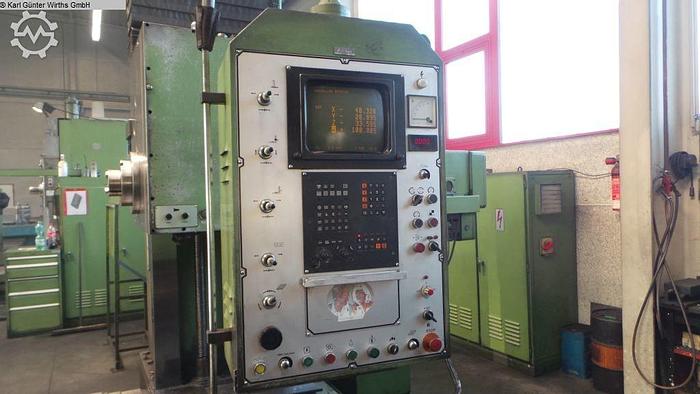

Control : Heidenhain TNC 155.
