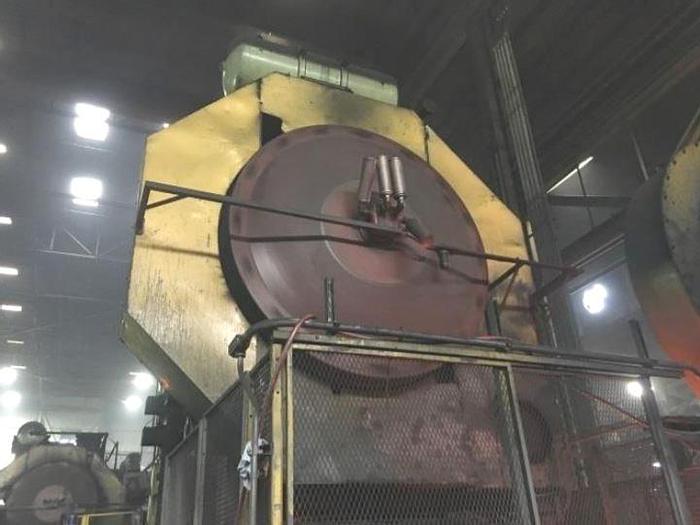

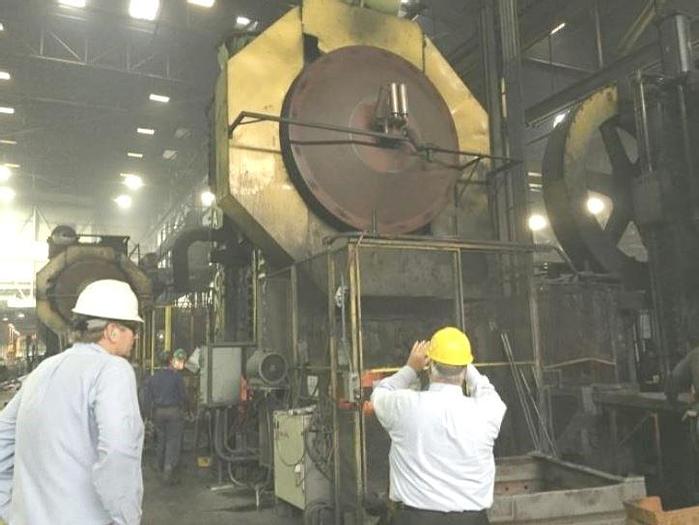

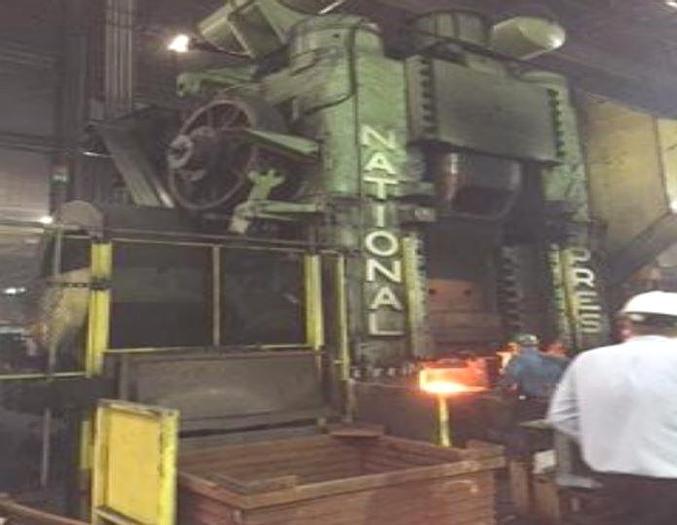

Press Hot Forging Maxipress
Sold
Specifications
| Manufacturer | National |
| Model | Maxipress |
| Year | 1971 |
| Condition | Used |
| Stock Number | MA0297 |
| Item condition | Good Condition |
| Capacity tons | 8000 |
Description
Mechanical hot forging press
Capacity : 8000 tons,
Table length : 1422.4 mm,
Table width : 1676.4 mm,
Tie rod diameter : 600 mm,
Die seat : 1800 Left-Right x 1550 Front-Back mm,
Ram area : 1650 Left-Right x 1400 Front-Back mm,
Stroke : 450 mm,
Shut height : 1350 - 1375 mm,
Speed: 34 SPM.
Equipped with :
Main drive motor : 500/125 HP 460/60/3,
Upper knockout stroke : 100 mm,
Lower knockout stroke : 125 mm,
Approx 2000 hours since rebuild,
Approx dimensions : 6300 Left-Right x 6000 Front-Back mm,
Height above floor : 7518 mm,
Height below floor : 1600 mm,
Approx weight : 635 tons.
You can also have the following equipment available at additional cost :
4000 kW Inductoheat billet heater 6" RCS, 23,000lb / hour / 2300 Degrees.
1971 reconditioning 2012
