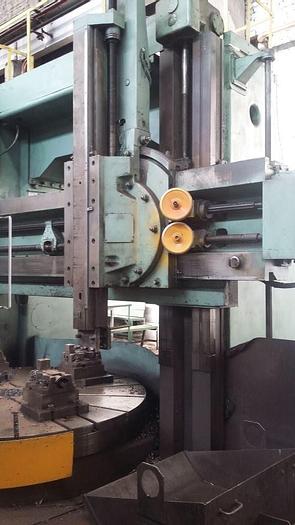

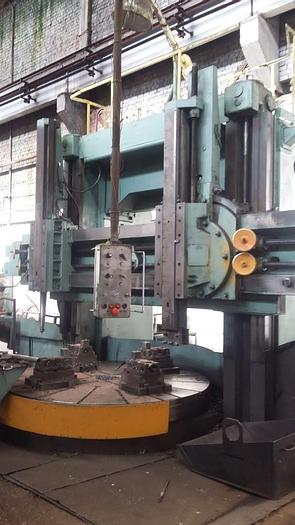

Lathe Vertical Turning 1525

Max. work piece diameter : 2500 mm,

Table diameter : 2240 mm

Max. work piece height : 1600 mm,

Max. work piece weight : 16 tons,

Table speed range : 1,6...80 rpm ,

Quantity of supports: 2

Movement of vertical support:

- vertical : 1200 mm,

- horizontal : 1390 mm,

Movement speed of vertical support : 5...1800 mm/min,

Max. swivel angle of support's slider : 30 degrees,

Main motor power : 45 kW,

Machine dimensions : 5065 x 5340 x 4190 mm,

Machine weight : 35.5 tons.
