Press Sheet Stamping Mechanical PKZVIV500

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelPKZVIV500
Year2005
ConditionUsed
Stock NumberMA0281
Item conditionGood Condition
Capacity tons500

Description

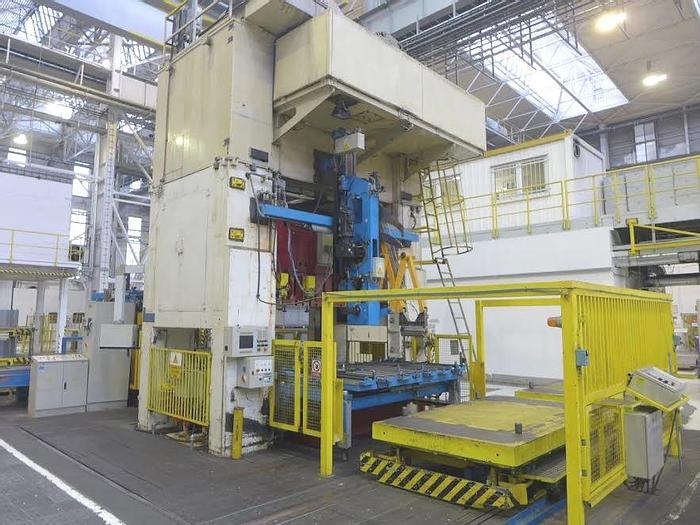

H-frame press,

Capacity : 500 tons,

Stroke : 500 mm,

Number of strokes max : 20 /min,

Shut height : 980 mm,

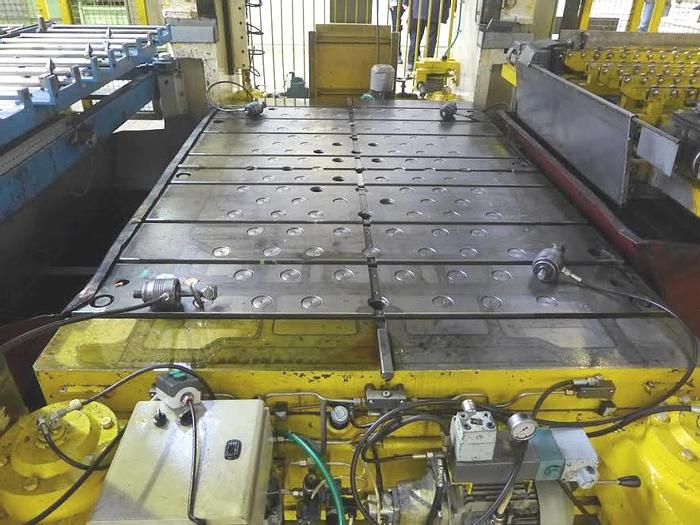

PRESS TABLE

clamping surface (left-right) : 2800 mm,

clamping surface (front-back): 1800 mm,

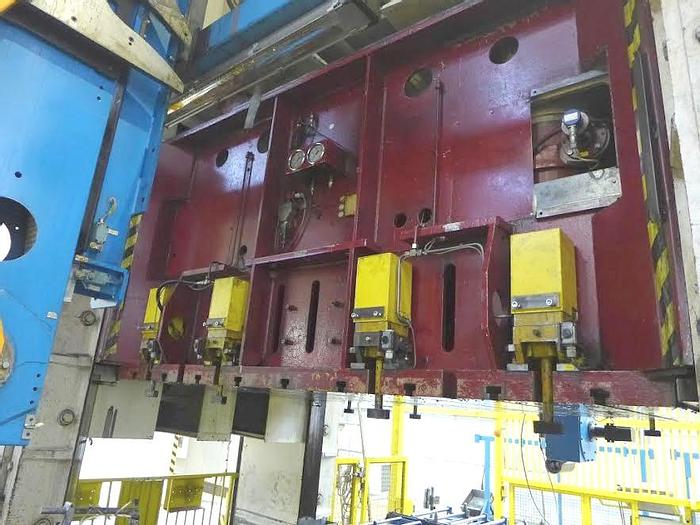

RAM

clamping surface (left-right) : 2800 mm,

clamping surface (front-back) : 1800 mm,

Ram adjustment : 500 mm,

Hydraulic overload protection : yes,

Electrical specifications

Total power consumption : 148 kW,

Mains voltage : 380 V,

Mains frequency : 50Hz,

Dimensions

Height above floor level :7400 mm


With moving bolster.

Press with hydraulic tool clamp units and blank loading device.

Table without die cushion.

Control

PLC

SIEMENS SIMATIC S 7


Mechanical Stand Alone Press with SIEMENS S 7 CNC Control.

Recond 2005
