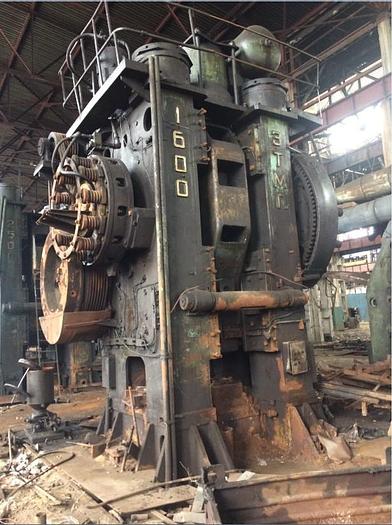

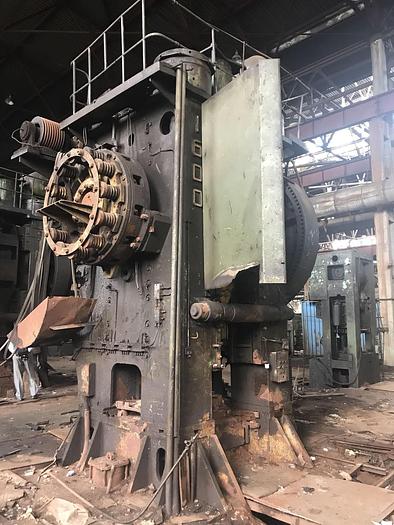

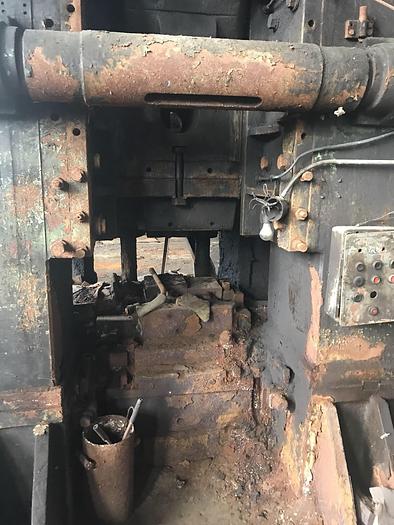

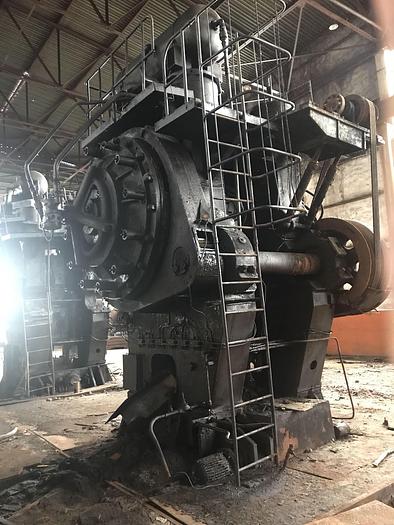

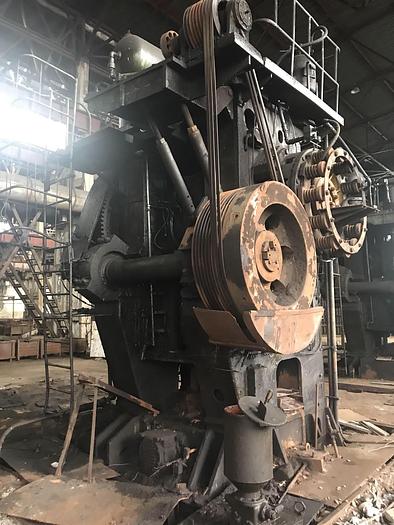

Press Hot Forging K8542

Capacity : 1600 tons,

Slide stroke : 300 mm,

Slide stroke length at maximum force : 0.16 mm,

Distance adjustment between table and slider : 10 mm,

Slide stroke number in 1 min : 75,

Length of a rod : 920 mm,

The closed height (the least distance between a table and a slider in his bottom position) : 660 mm,

Table overall dimensions : 940 x 1200 mm,

Table height above floor level : 450 mm,

Slide overall dimensions : 860 x 910 mm,

The size of lateral windows :

Height : 560 mm,

Width : 600 mm,

Main motor : 110 kW,

Press overall dimensions :

length : 5060 mm,

Width : 3940 mm,

Height above floor level : 5125 mm,

Weight : 120 tons.

Complete by mechanical parts
